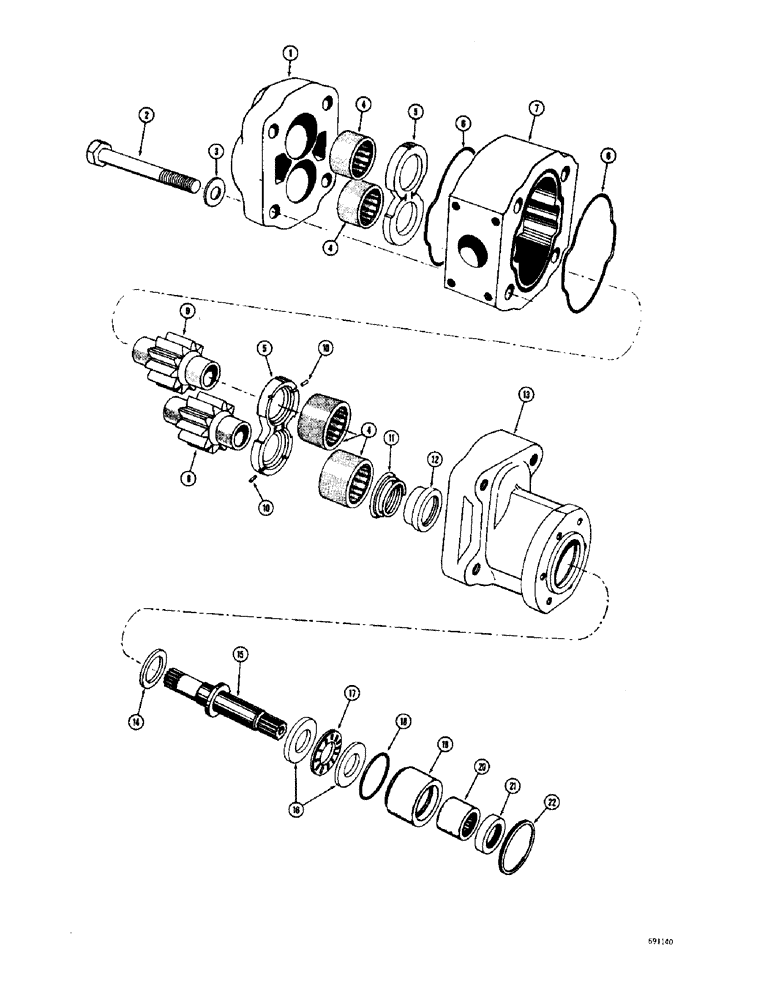

Запчасти Case W10C (246) - A19032 HYDRAULIC PUMP (08) - HYDRAULICS

A19032

PUMP

- hydraulic, 46 G.P.M. (Commercial Shearing #P25X205BERU20-48), Includes: Ref. 1 - 22

1шт.

1

A24842

COVER - port end

1шт.

2

13-1084

BOLT,Hex, 5/8" - 11 x 5-1/4", Gr 5

HHCS - 5/8" - 11 NC x 5-1/4"

4шт.

3

D31957

WASHER

- special

4шт.

4

D31942

ROLLER BEARING,1.29" ID x 1.9375" OD x 1.125"

BEARING - roller

4шт.

5

D31955

PLATE

- thrust

2шт.

6

D41391

O-RING

SEAL - gear, Serial Range: housing-cover

2шт.

7

A24841

HOUSING - gear

1шт.

A24838

GEAR SET

- drive and driven, Includes: Ref. 8 and 9

1шт.

8

NSS

NOT SOLD SEPARAT

GEAR - drive

1шт.

9

NSS

NOT SOLD SEPARAT

GEAR - driven

1шт.

10

D35673

SEAL

STRIP - pocket (Cut to lengths required)

1шт.

11

D31953

VALVE SPRING

SPRING - pre-load

1шт.

12

D31952

BUSHING

- pre-load

1шт.

13

A24850

COVER ASSY

COVER - shaft end

1шт.

14

A24837

WASHER

- thrust

1шт.

15

A24839

SHAFT - drive

1шт.

16

A24847

RACE

- thrust bearing, outer

2шт.

17

A24848

BEARING

- thrust

1шт.

18

A24880

O-RING,0.103" Thk x 1.862" ID, -134, Cl 5, 75 Duro

SEAL - "O"ring, bearing sleeve

1шт.

19

L30172

SLEEVE CYLINDER

SLEEVE - bearing

1шт.

20

L30171

BEARING

- drive shaft

1шт.

21

A24845

OIL SEAL

SEAL - oil, drive shaft

1шт.

22

71466

SNAP RING,#206, 2.190", Int, Spiral

RING - retaining, spiral

1шт.
