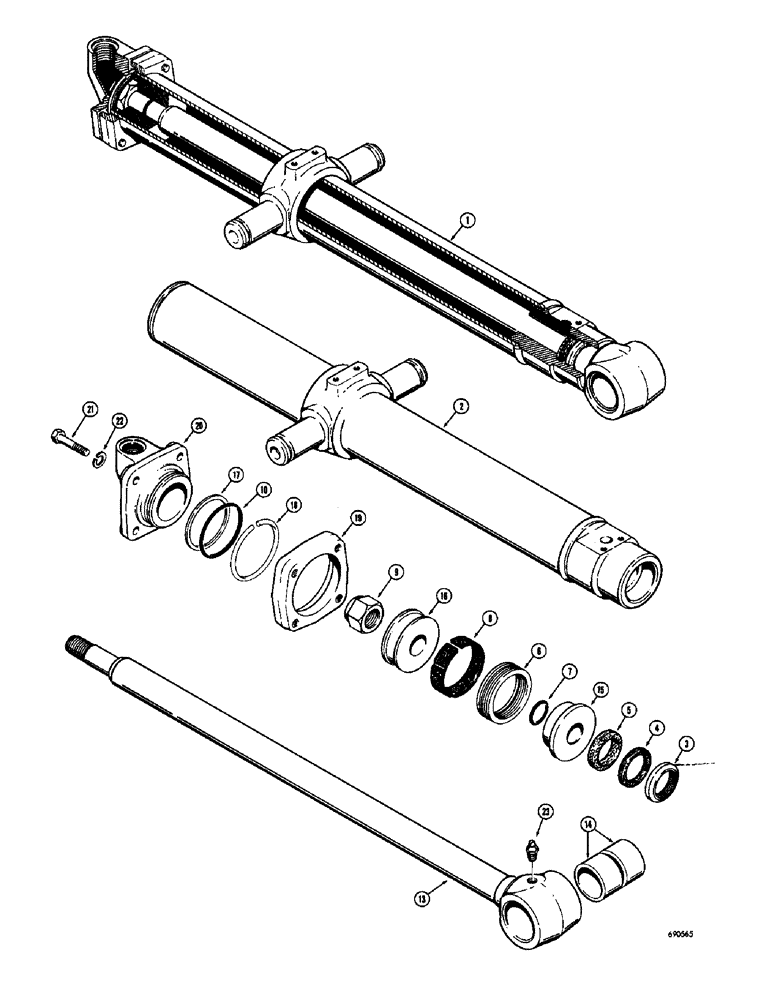

Запчасти Case W10C (242) - L17436 LOADER TILT CYLINDER (08) - HYDRAULICS

1

L17436

CYLINDER

- hydraulic, loader tilt (3-1/2" I.D. x 27-11/16" stroke), Includes: Ref. 2 - 23

2шт.

2

L19332

BODY

TUBE - cylinder

1шт.

A19929

GASKET KIT

KIT - repair, cylinder, Includes: Ref. 3 - 12

1шт.

3

A13892

RING

wiper, piston rod

1шт.

4

A13901

WASHER

RING - back-up

1шт.

5

A14246

RING

- quad, piston rod

1шт.

6

A12491

SWITCH

PACKING - piston

1шт.

7

A29456

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

SEAL - "O"ring, rod to piston

1шт.

8

A17811

RING

- wear

1шт.

9

R12336

LOCK NUT

- hex., lock (1" - 14 NF)

1шт.

10

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

SEAL - "O"ring, cylinder head

1шт.

11

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL - "O"ring (Not illustrated) Not required with L17436 cylinder

1шт.

12

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

SEAL - "O"ring (Not illustrated) Not required with L17436 cylinder

1шт.

13

A18600

ROD

- piston, Includes: Ref. 14

1шт.

14

A12058

BUSHING,44.88mm ID x 53.92mm OD x 38.1mm L

- piston rod

2шт.

15

A17809

PISTON ASSY.

PISTON - cylinder

1шт.

16

A17810

PLATE ASSY.

GUIDE - piston

1шт.

17

L18944

RING

- back-up, seal

1шт.

18

A12545

RING, SNAP

RETAINER - clamp

1шт.

19

A12544

CLAMP

- cylinder, Serial Range: head-tube

1шт.

20

L17691

HEAD - cylinder

1шт.

21

14-832

BOLT,Hex, 1/2" - 20 x 2", Gr 5

HHCS - 1/2" - 20 NF x 2"

4шт.

22

92-8

LOCK WASHER,1/2"

4шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.
