Запчасти Case W10C (238) - MAIN RELIEF VALVE (08) - HYDRAULICS

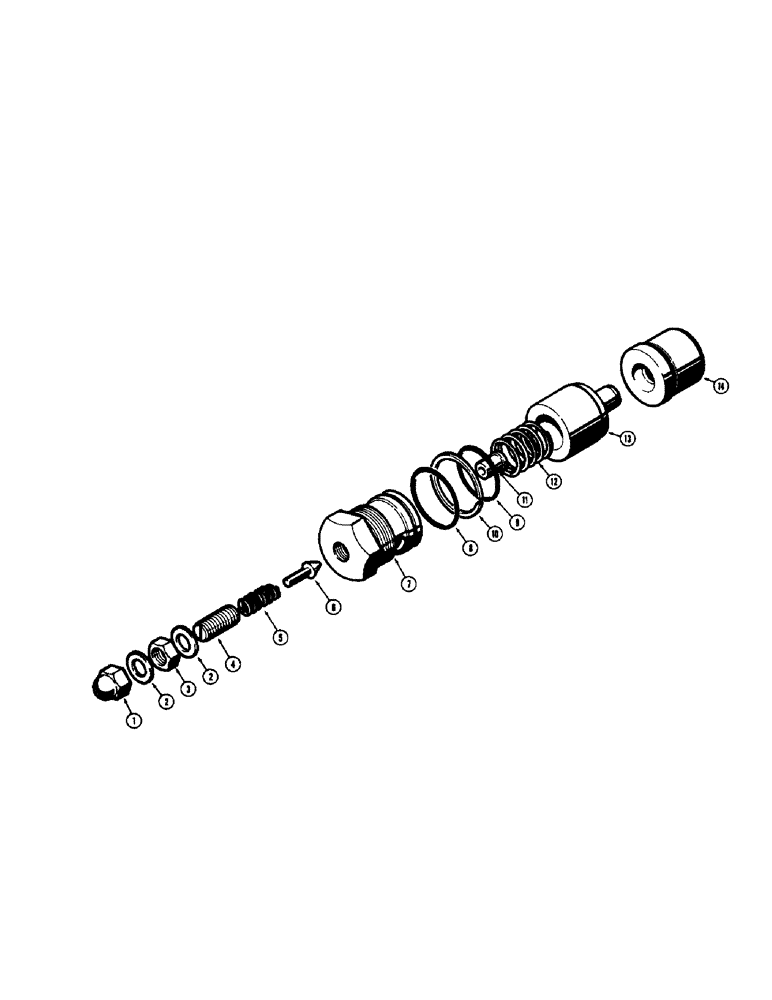

Схема запчастей Case W10C - (238) - MAIN RELIEF VALVE (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

129-514

CROWN NUT,Low, 5/16" - 24

- acorn (5/16" - 24 NF)

1шт.

2

D26270

WASHER, SEALING

WASHER - special

2шт.

3

25-155

JAM NUT,Jam, 5/16"-24, G5

- hex., jam (5/16" - 24 NF)

1шт.

4

176-297

SET SCREW,5/16"-24 x 1", Slotted

SCREW - set, relief valve

1шт.

5

D26268

SPRING

- pilot

1шт.

6

D26267

PLUNGER

- relief valve

1шт.

7

A16856

CYLINDER END CAP

CAP - relief valve

1шт.

8

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

SEAL - "O"ring, valve cap (Large)

1шт.

9

A18349

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

SEAL - "O"ring, valve cap (Small)

1шт.

10

A16860

RING

- back-up

1шт.

11

D26266

SEAT

- plunger

1шт.

12

A15918

VALVE SPRING

SPRING - relief valve

1шт.

13

L30146

VALVE POPPET

POPPET - relief valve

1шт.

14

A16858

SEAT

- poppet

1шт.

Выбрано товаров: 14
