Запчасти Case W10C (236) - DROTT CLAM SPOOLS, DOUBLE ACTING WITHOUT SOLENOID (08) - HYDRAULICS

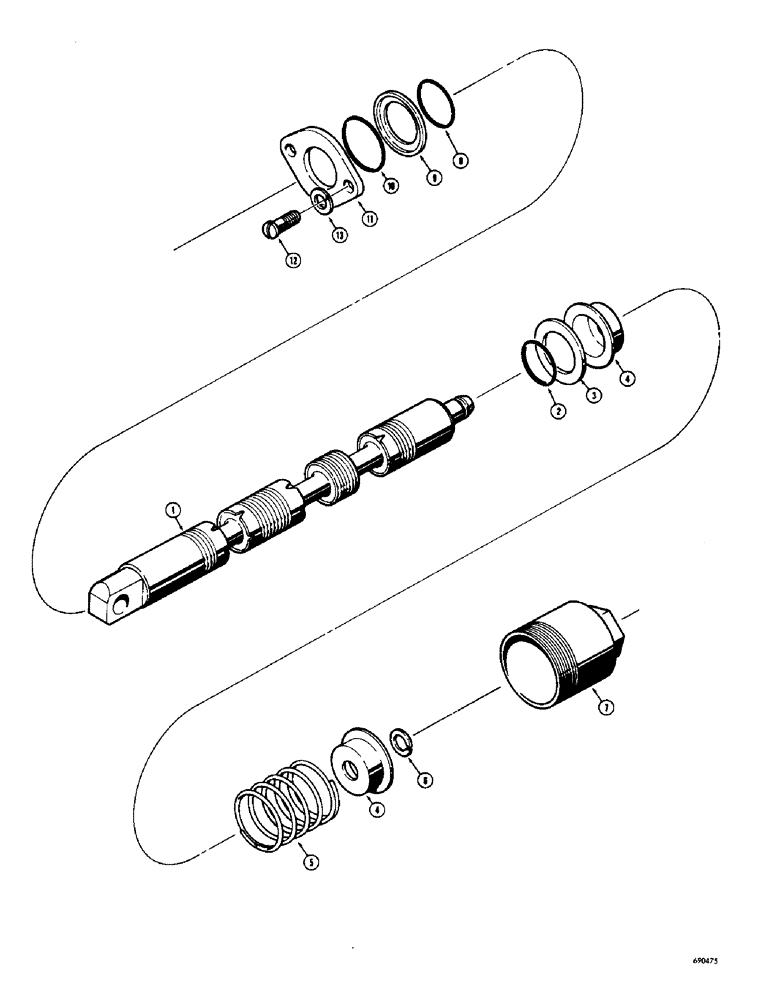

Схема запчастей Case W10C - (236) - DROTT CLAM SPOOLS, DOUBLE ACTING WITHOUT SOLENOID (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

L32364

SPOOL ASSEMBLY - Drott clam (Color code - black or letter code - W) .99965" - .99980", Includes: Ref. 1 - 7

1шт.

L32365

SPOOL ASSEMBLY - Drott clam (Color code - blue or letter code - X) .99975" - .99990", Includes: Ref. 1 - 7

1шт.

L32366

SPOOL ASSEMBLY - Drott clam (Color code - yellow or letter code - Y) .99985" - 1.00000", Includes: Ref. 1 - 7

1шт.

L32367

SPOOL ASSEMBLY - Drott clam (Color code - green or letter code - Z) .99995" - 1.00010", Includes: Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

SPOOL - Drott clam

1шт.

2

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

SEAL - "O"ring

1шт.

3

A13166

WASHER

RETAINER - seal

1шт.

4

A13164

RETAINER,13.49mm ID x 37.31mm OD

- spring

2шт.

5

A13182

VALVE SPRING

SPRING - spool centering

1шт.

6

A27020

RING

SNAP RING -, Serial Range: retainer-spool

1шт.

7

A13165

CAP

COVER - spool end

1шт.

NSS

NOT SOLD SEPARAT

SEAL ASSEMBLY - clam spool, Includes: Ref. 8 - 13

1шт.

8

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

SEAL - "O"ring, spool

1шт.

9

A13167

RETAINER

- seal

1шт.

10

A13168

WIPER

- spool

1шт.

11

A13169

PLATE - cover

1шт.

12

75-610

X

SCREW - machine, round head (3/8" - 16 NC x 5/8")

2шт.

13

92-6

LOCK WASHER,3/8"

2шт.

Выбрано товаров: 18
