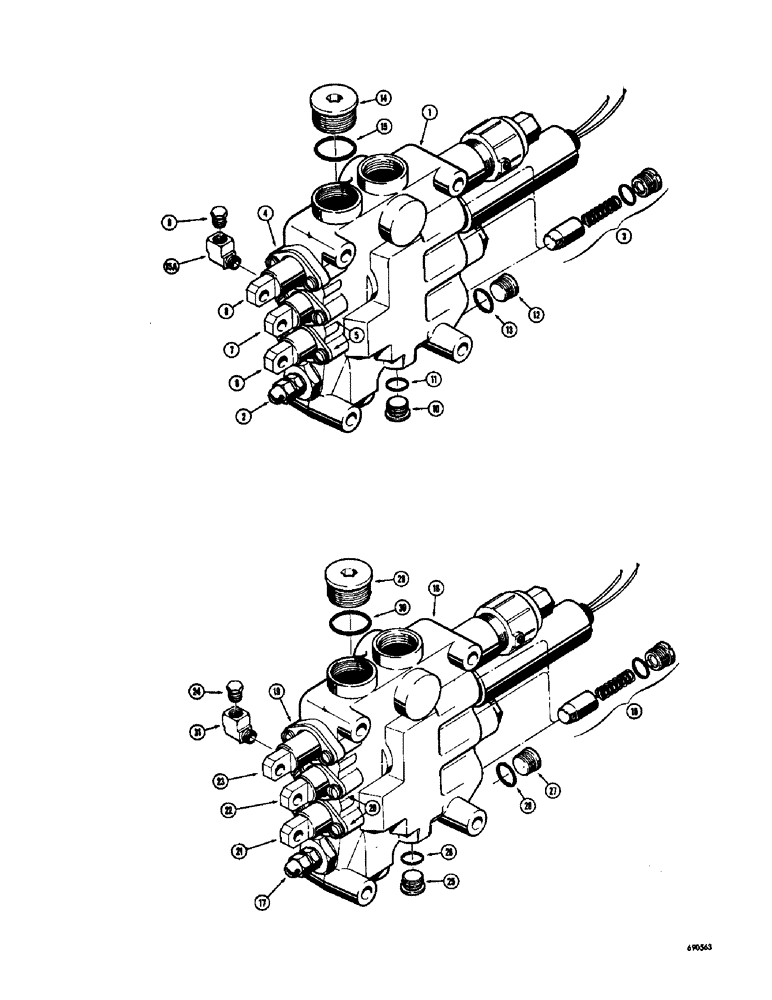

Запчасти Case W10C (226) - MODEL W9C AND W10C LOADERS (08) - HYDRAULICS

L17479

VALVE

- loader control, 3 spool, Includes: Ref. 1 - 15

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - control valve

1шт.

2

NSS

NOT SOLD SEPARAT

VALVE - main relief (Parts list Figure 238)

1шт.

3

NSS

NOT SOLD SEPARAT

VALVE - check (Parts list Figure 238)

3шт.

4

NSS

NOT SOLD SEPARAT

SEAL ASSEMBLY - lift spool (Parts list Figure 230)

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL ASSEMBLY - tilt and clam spool (Parts list Figures 232 and 236)

2шт.

6

L32364

SPOOL - Drott clam (Parts list Figure 236)

1шт.

L32365

SPOOL - Drott clam (Parts list Figiure 236)

1шт.

L32366

SPOOL - Drott clam (Parts list Figure 236)

1шт.

L32367

SPOOL - Drott clam (Parts list Figure 236)

1шт.

7

L32368

PISTON

SPOOL - loader tilt (Used in L17479 valve only) Parts list Figure 232

1шт.

L32369

SPOOL - loader tilt (Used in L17479 valve only) Parts list Figure 232

1шт.

L32370

SPOOL - loader tilt (Used in L17479 valve only) Parts list Figure 232

1шт.

L32371

SPOOL - loader tilt (Used in L17479 valve only) Parts list Figure 232

1шт.

8

L32375

SPOOL

- loader lift (Parts list Figure 230)

1шт.

L32376

SPOOL

- loader lift (Parts list Figure 230)

1шт.

L32377

SPOOL

- loader lift (Parts list Figure 230)

1шт.

L32378

SPOOL

- loader lift (Parts list Figure 230)

1шт.

9

L30683

X

PLUG - pipe, special

1шт.

10

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

12

86625138

PLUG,7/18" - 14

Includes Ref. 13 Hex Soc, 7/8"-14 ORB

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

14

218-5215

PLUG,Hex Soc, 1 5/8"-12 ORB

- hex. socket head, Includes: Ref. 15

1шт.

15

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

15a

217-21

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- pressure check

1шт.

L17844

VALVE

- loader control, 3 spool, Includes: Ref. 16 - 30

1шт.

16

NSS

NOT SOLD SEPARAT

BODY - control valve

1шт.

17

NSS

NOT SOLD SEPARAT

VALVE - main relief (Parts list Figure 238)

1шт.

18

NSS

NOT SOLD SEPARAT

VALVE - check (Parts list Figure 238)

3шт.

19

NSS

NOT SOLD SEPARAT

SEAL ASSEMBLY - lift spool (Parts list Figure 230)

1шт.

20

NSS

NOT SOLD SEPARAT

SEAL ASSEMBLY - tilt and clam spools (Parts list Figure 234, 236)

2шт.

21

L32364

SPOOL - Drott clam (Parts list Figure 236)

1шт.

L32365

SPOOL - Drott clam (Parts list Figure 236)

1шт.

L32366

SPOOL - Drott clam (Parts list Figure 236)

1шт.

L32367

SPOOL - Drott clam (Parts list Figure 236)

1шт.

22

L32387

SPOOL

- loader tilt (Used in L17844 valve only) Parts list Figure 234

1шт.

L32388

SPOOL

- loader tilt (Used in L17844 vavle only) Parts list Figure 234

1шт.

L32389

SPOOL

- loader tilt (Used in L17844 valve only) Parts list Figure 234)

1шт.

L32390

SPOOL

- loader tilt (Used in L17844 valve only) Parts list Figure 234

1шт.

23

L32375

SPOOL

- loader lift (Parts list Figure 230)

1шт.

L32376

SPOOL

- loader lift (Parts list Figure 230)

1шт.

L32377

SPOOL

- loader lift (Parts list Figure 230)

1шт.

L32378

SPOOL

- loader lift (Parts list Figure 230)

1шт.

24

L30683

X

PLUG - pipe, special

1шт.

25

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Incl Ref 26 Hex Soc, 3/4"-16 ORB

1шт.

27

86625138

PLUG,7/18" - 14

Includes Ref. 28 Hex Soc, 7/8"-14 ORB

1шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

29

218-5215

PLUG,Hex Soc, 1 5/8"-12 ORB

- hex. socket head, Includes: Ref. 30

1шт.

30

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

31

217-21

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- pressure check

1шт.

11

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

26

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.
