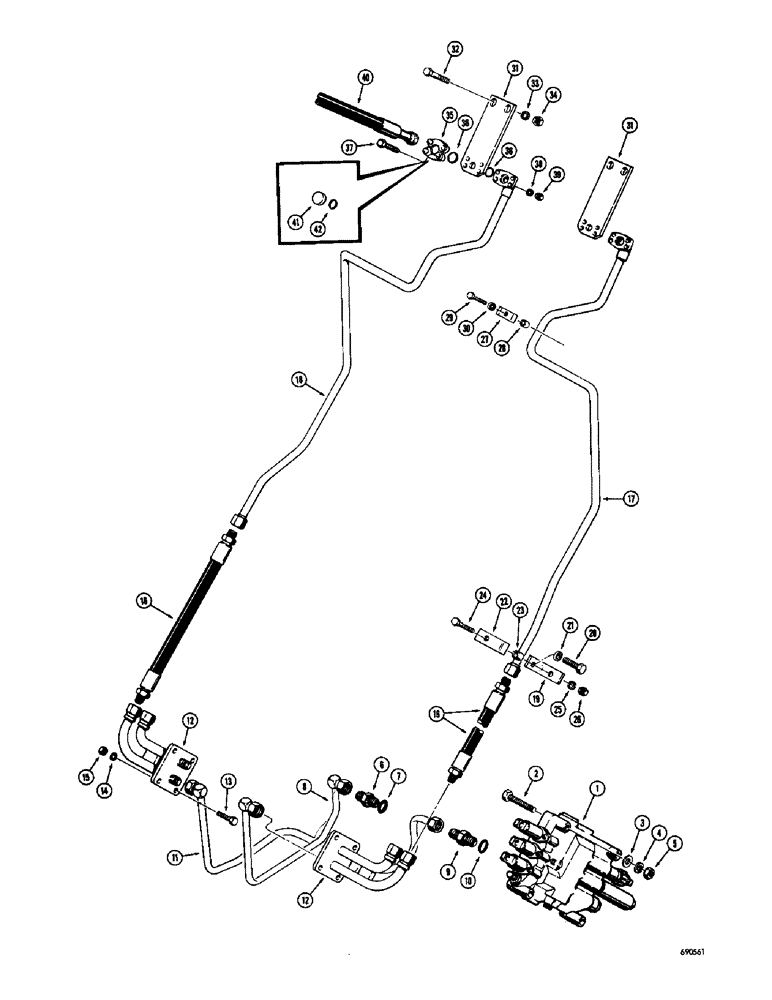

Запчасти Case W10C (218) - DROTT FOUR-IN-ONE BUCKET HYDRAULICS (08) - HYDRAULICS

1

L17844

VALVE

- loader control, diesel (3 spool) Parts list Figure 226

1шт.

L17479

VALVE

- loader control, gas (3 spool) Parts list Figure 226

1шт.

2

13-876

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 5

3шт.

3

195-33

WASHER,1/2"

- plain () 1/2"

3шт.

4

92-8

LOCK WASHER,1/2"

3шт.

5

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

3шт.

6

A17646

CONNECTOR, ELEC

CONNECTOR - male, straight, Includes: Ref. 7

1шт.

7

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

8

A19054

TUBE - valve to side plate connector, R.H.

1шт.

9

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - male, straight, Incl. Ref. 10

1шт.

10

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

11

A19055

TUBE - valve to side plate connector, L.H.

1шт.

12

A19049

TUBE - special, side plate

2шт.

13

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

8шт.

14

92-8

LOCK WASHER,1/2"

8шт.

15

25-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam (1/2"-13 NC)

8шт.

16

A17639

HOSE

- connector to intermediate tube (24-1/2" long)

2шт.

17

L18716

TUBE - intermediate, valve to calm cylinder (R.H.)

1шт.

18

L18717

TUBE,1" OD

- intermediate, valve to calm cylinder (L.H.)

1шт.

19

L18972

BRACKET - mounting, clamp

2шт.

20

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

21

92-6

LOCK WASHER,3/8"

2шт.

22

A16956

CLAMP - tube

2шт.

23

A16957

SPACER - clamp

2шт.

24

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

25

92-6

LOCK WASHER,3/8"

2шт.

26

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

27

31665

COLLAR CLAMP

CLAMP - tube

2шт.

28

D36524

BUSHING

SPACER - clamp

2шт.

29

13-526

BOLT,Hex, 5/16" - 18 x 1-5/8", Gr 5

2шт.

30

92-5

LOCK WASHER,5/16"

2шт.

31

L18679

BRACKET - tube mounting

2шт.

32

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

33

92-8

LOCK WASHER,1/2"

4шт.

34

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.

35

A16961

FLANGE

- split, Serial Range: hose-bracket

4шт.

36

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

SEAL - "O"ring

4шт.

37

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

8шт.

38

92-6

LOCK WASHER,3/8"

8шт.

39

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

8шт.

40

A16960

HOSE - split flange to swivel connector

2шт.

41

A18342

PLUG

- cylinder tube (Used when Drott bucket is removed)

2шт.

42

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

SEAL - "O"ring

2шт.
