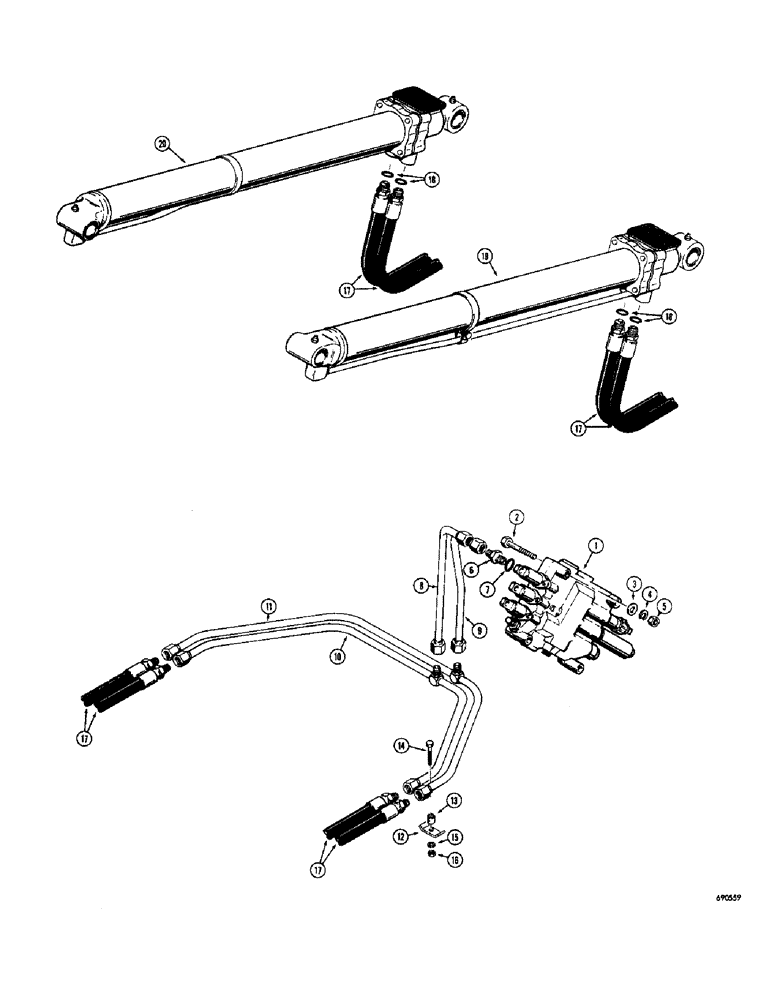

Запчасти Case W10C (212) - LOADER HYDRAULICS, LIFT CYLINDER HYDRAULICS (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE - hydraulic, loader control (See Figures 224, 226, and 228 for proper valve)

1шт.

2

13-876

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 5

3шт.

3

195-33

WASHER,1/2"

3шт.

4

92-8

LOCK WASHER,1/2"

3шт.

5

25-108

NUT,1/2"-13, G5

Hex

3шт.

6

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Male, Incl. Ref. 7

2шт.

7

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL

1шт.

8

A19046

TUBE

Valve to inner manifold

1шт.

9

A19047

SPARE PART Valve to outer manifold

1шт.

10

A12327

TUBE

Manifold, lift cylinder (Inner)

1шт.

11

A12331

TUBE

Manifold, lift cylinder (Outer)

1шт.

12

A12332

CLAMP

Manifold tube

2шт.

13

A19048

SPACER - clamp

2шт.

14

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

15

92-6

LOCK WASHER,3/8"

2шт.

16

25-106

NUT,3/8"-16, G5

Hex

2шт.

17

A19045

HYDRAULIC HOSE,0.63" ID x 30.00", SAE 100R2

Manifold to lift cylinder, Incl. Ref. 18

4шт.

18

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

SEAL

1шт.

19

A17882

SPARE PART RH loader lift (5" I.D. x 36" stroke) Parts list Figure 240

1шт.

20

A17883

CYLINDER BLOCK

Hydraulic, LH loader lift (5" I.D. x 36" stroke) Parts list Figure 240

1шт.
