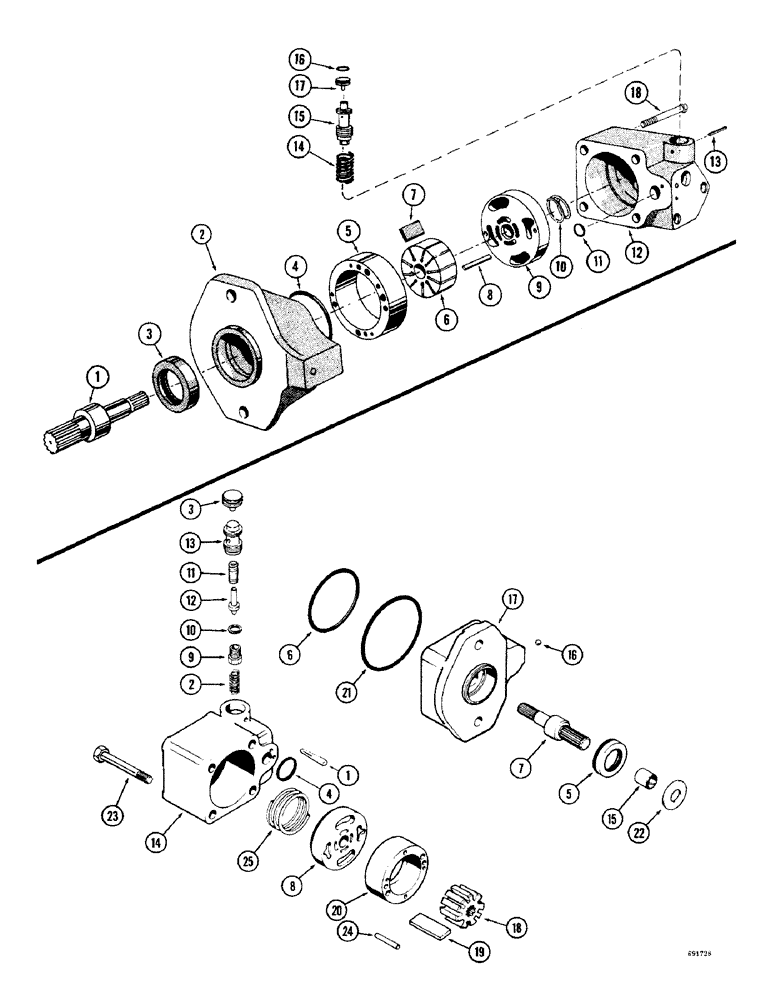

Запчасти Case W10B (098) - A17519 POWER STEERING PUMP (05) - STEERING

A17519

PUMP - power steering (Vickers no. VTM 28-60-45-10-NO-LI-10) Use L10898, Includes: Ref. 1 - 18

1шт.

1

A18164

SHAFT

- drive

1шт.

2

A18166

X

BODY - pump, Includes: Ref. 3

1шт.

3

A18161

SEAL

OIL SEAL - drive shaft

1шт.

4

A18163

O-RING,2.535" ID x 0.07"

SEAL - "O" ring, pump body

1шт.

5

A18159

CLAMP

RING - rotor

1шт.

6

A18158

ROTOR

- pump

1шт.

7

A18167

SPARE PART SET

VANE KIT - rotor (Set of 10)

1шт.

8

A18152

PIN

- pressure plate

2шт.

9

A18160

COVER PLATE

PLATE - pressure

1шт.

10

A18157

SPRING - pressure plate

1шт.

11

A18156

O-RING

SEAL - "O" ring, oil port

1шт.

12

A18165

COVER

ASSEMBLY - pump

1шт.

13

135-46

GROOVED PIN,5/32" x 1 1/4", Type A

PIN - relief valve

1шт.

15

A18155

VALVE PRESSURE RELIE

VALVE - relief

1шт.

16

A18162

O-RING

SEAL - "O" ring, relief valve plug

1шт.

17

A18154

PLUG

- relief valve

1шт.

18

A18150

BOLT

-, Serial Range: cover-body

4шт.

L10898

PUMP

- power steering (Vickers no. VTM 28-60-45-10-NO-LO-12-S1), L10898, Includes: Ref. 1 - 25

1шт.

1

135-46

GROOVED PIN,5/32" x 1 1/4", Type A

ROLL PIN - relief valve, L10898 power steering pump

1шт.

2

A18153

VALVE SPRING

SPRING - relief valve, L10898 power steering pump

1шт.

3

A18154

PLUG

- relief valve, L10898 power steering pump

1шт.

4

A18156

O-RING

SEAL - "O" ring, L10898 power steering pump

1шт.

5

A18161

SEAL

- drive shaft, L10898 power steering pump

1шт.

6

A18163

O-RING,2.535" ID x 0.07"

SEAL - "O" ring, pump body, L10898 power steering pump

1шт.

7

A18164

SHAFT

- drive, pump, L10898 power steering

1шт.

8

A56216

PLATE ASSY.

PLATE - pressure, L10898 power steering pump

1шт.

L30512

VALVE

ASSEMBLY - relief, L10898 power steering pump, Includes: Ref. 9 - 13

1шт.

9

L30517

PLUG

- relief valve, L10898 power steering pump

1шт.

10

L30518

SHIM

- relief valve (.015), L10898 power steering pump

1шт.

10

L30519

SHIM

- relief valve (.030), L10898 power steering pump

1шт.

10

L30525

SHIM

- relief valve (.0097), L10898 power steering pump

1шт.

11

L30520

SPRING

- relief valve, L10898 power steering pump

1шт.

12

L30524

VALVE

POPPET - relief valve, L10898 power steering pump

1шт.

13

L30526

PISTON

PLUNGER - relief valve, L10898 power steering pump

1шт.

14

L30514

COVER ASSY

COVER - pump, L10898 power steering

1шт.

L30515

BODY

ASSEMBLY - pump, L10898 power steering, Includes: Ref. 15 - 17

1шт.

15

L30521

BUSHING

- body, L10898 power steering pump

1шт.

16

NSS

NOT SOLD SEPARAT

BALL - body (7/32" dia.), L10898 power steering pump

1шт.

17

NSS

NOT SOLD SEPARAT

BODY - pump, L10898 power steering

1шт.

L30516

KIT

- rotor, ring and vane cartridge, L10898 power steering pump, Includes: Ref. 18 - 20

1шт.

18

NSS

NOT SOLD SEPARAT

ROTOR - pump, L10898 power steering

1шт.

19

NSS

NOT SOLD SEPARAT

VANE - pump, L10898 power steering

10шт.

20

NSS

NOT SOLD SEPARAT

RING - pump, L10898 power steering

1шт.

21

L30522

O-RING,0.492" ID x 0.106" Width

SEAL - "O" ring, pump body, L10898 power steering

1шт.

22

L30530

WASHER

- thrust, L10898 power steering pump

1шт.

23

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

L10898 power steering pump Hex, 3/8"-16 x 3", G5

4шт.

24

A18152

PIN

- ring, L10898 power steering pump

2шт.

25

A56215

VALVE SPRING

SPRING - rotor, L10898 power steering pump

1шт.
