(248) - CAB TURN SIGNALS, PRIOR TO LOADER SERIAL NUMBER 9807379

Запчасти Case W10B (248) - CAB TURN SIGNALS, PRIOR TO LOADER SERIAL NUMBER 9807379 (04) - ELECTRICAL SYSTEMS

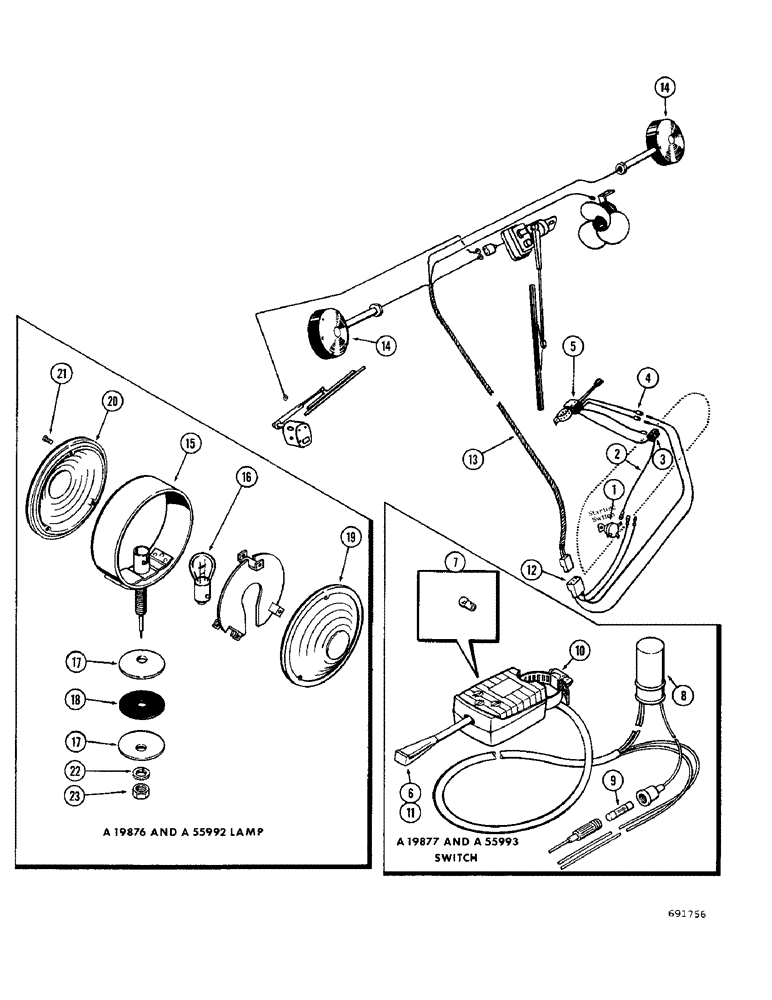

Схема запчастей Case W10B - (248) - CAB TURN SIGNALS, PRIOR TO LOADER SERIAL NUMBER 9807379 (04) - ELECTRICAL SYSTEMS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

L17820

SWITCH

- starting

1шт.

2

A13754

ELECTRICAL WIRE

WIRE - starting switch to resistor (24 volt electrical system only)

1шт.

3

A56520

RESISTOR - electrical (24 volt system only)

1шт.

4

A27213

CONNECTOR - 2 wire

2шт.

5

A19877

SWITCH ASSEMBLY - turn signal, 12 volt (Gas models only), Includes: Ref. 6 - 11

1шт.

6

L30264

HANDLE - signal switch

1шт.

7

B50213

BULB

- signal switch, 12 volt

1шт.

8

A19878

FLASHER - signal control, 12 volt

1шт.

9

223-14

FUSE,10 Amp, Type SFE

- protective, 14 amp

1шт.

10

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

- switch mounting #28, 1.31/2.25 Type F Worm

1шт.

11

177-82

SCREW - machine, fillister head (#8 - 36 NF x 1")

2шт.

5

A55993

SWITCH ASSEMBLY - turn signal, 24 volt (Diesel models only), Includes: Ref. 6 - 11

1шт.

6

L30264

HANDLE - signal switch

1шт.

7

A14928

BULB

- signal switch, 24 volt

1шт.

8

A55994

FLASHER UNIT

FLASHER - signal control, 24 volt

1шт.

9

223-6

FUSE,6 Amp, Type 3AG

- protective, 6 amp

1шт.

10

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

- mounting #28, 1.31/2.25 Type F Worm

1шт.

11

177-82

SCREW - machine, fillister head (#8 - 36 NF x 1")

2шт.

12

A19881

PLUG AND WIRE - switch to cab harness

1шт.

13

A19880

HARNESS - cab wiring and turn signal lights

1шт.

14

A19876

INDICATOR, TURN SIGN

LIGHT - turn signal, 12 volt (Gas models only), Includes: Ref. 15 - 23

2шт.

14

A55992

LIGHT - turn signal, 24 volt (Diesel models only), Includes: Ref. 15 - 23

2шт.

15

NSS

NOT SOLD SEPARAT

BODY - light

1шт.

16

33686

BULB

- light, 12 volt (A19876 light only)

1шт.

16

A15084

LAMP

BULB - light, 24 volt (A55992 light only)

1шт.

17

L30258

WASHER

- crowned

2шт.

18

L30259

WASHER

- rubber

1шт.

19

L30260

LENS

- yellow

1шт.

20

L30261

LENS

- red

1шт.

21

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

- machine, round head (#6 - 32 NC x 1/2")

6шт.

22

192-407

LOCK WASHER,7/16"

7/16"

1шт.

23

129-104

NUT,7/16"-14, G5

1шт.
