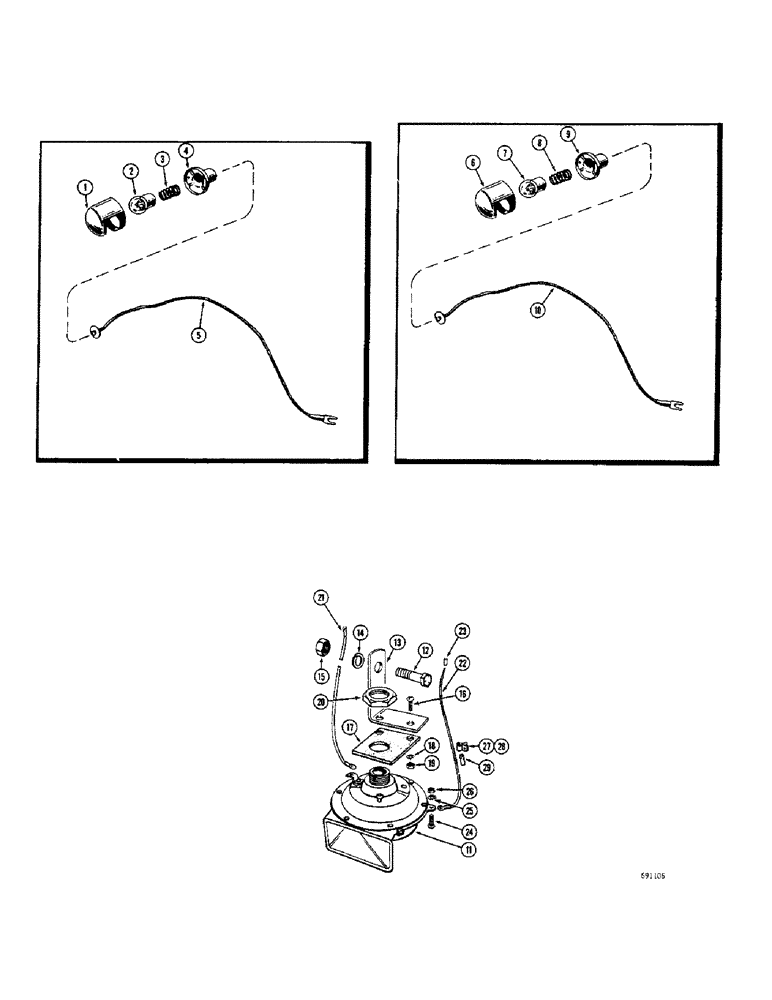

Запчасти Case W10B (088) - A14737 DASH LIGHT (04) - ELECTRICAL SYSTEMS

A14737

LAMP

LIGHT - dash, 24 volt, Includes: Ref. 1 - 5

2шт.

1

B50319

COVER - dash light

1шт.

2

A15237

BULB

- dash light, 24 volt

1шт.

3

B50262

SPRING - light socket

1шт.

4

B50320

SOCKET - dash light

1шт.

5

B50332

WIRE - connector

1шт.

A7642

LAMP

LIGHT - dash, 12 volt, A7642, Includes: Ref. 6 - 10

2шт.

6

B50319

COVER - dash light, A7642

1шт.

7

71421

BULB,R5W, 12V, 5W

- dash light, 12 volt, A7642

1шт.

8

B50262

SPRING - light socket, A7642 dash

1шт.

9

B50320

SOCKET - dash light, A7642

1шт.

10

A40161

WIRE - connecting, A7642 dash light

1шт.

11

A19581

HORN

- warning, A19581

1шт.

12

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

A19581 horn Hex, 3/8"-16 x 1 1/8", G5, Full Thd

1шт.

13

A12489

BRACKET - horn mounting, A19581

1шт.

14

92-6

LOCK WASHER,3/8"

A19581 horn 3/8"

1шт.

15

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC), A19581 horn

1шт.

16

174-97

SCREW,Sl Rnd Hd, #10 - 32 x 1/2"

- machine, round head (#10 - 32 NF x 1/2"), A19581 horn

2шт.

17

A19582

INSULATOR - horn mounting, A19581

1шт.

18

92-3

LOCK WASHER,#10

WASHER, LOCK, , A19581 horn #10

2шт.

19

129-27

NUT,Hex, #10 - 32

- hex. (#10 - 32 NF), A19581 horn

2шт.

20

L30866

LOCK NUT

- horn to mounting plate, A19581

1шт.

21

A56428

WIRE - horn to instrument panel wiring (34" long), A19581

1шт.

22

A56078

WIRE - horn to horn button, A19581

1шт.

23

A27213

CONNECTOR - wire to horn button, A19581

1шт.

24

173-97

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

- machine, round head (#10 - 24 NC x 1/2"), A19581 horn

1шт.

25

92-3

LOCK WASHER,#10

WASHER, LOCK, , A19581 horn #10

1шт.

26

129-7

NUT,Hex, #10 - 24

- hex. (#10 - 24 NC), A19581 horn

1шт.

27

A7922

CLIP

- wire to master cylinder support, A19581 horn

1шт.

28

A27814

X

CLIP - wire to front platform, A19581 horn

1шт.

29

A12458

SLEEVE

LOOM - wire to clip, A19581 horn

2шт.
