Запчасти Case W10B (080) - INSTRUMENT PANEL, GAS ENGINE, USED WITH GENERATOR ELECTRICAL SYSTEM (04) - ELECTRICAL SYSTEMS

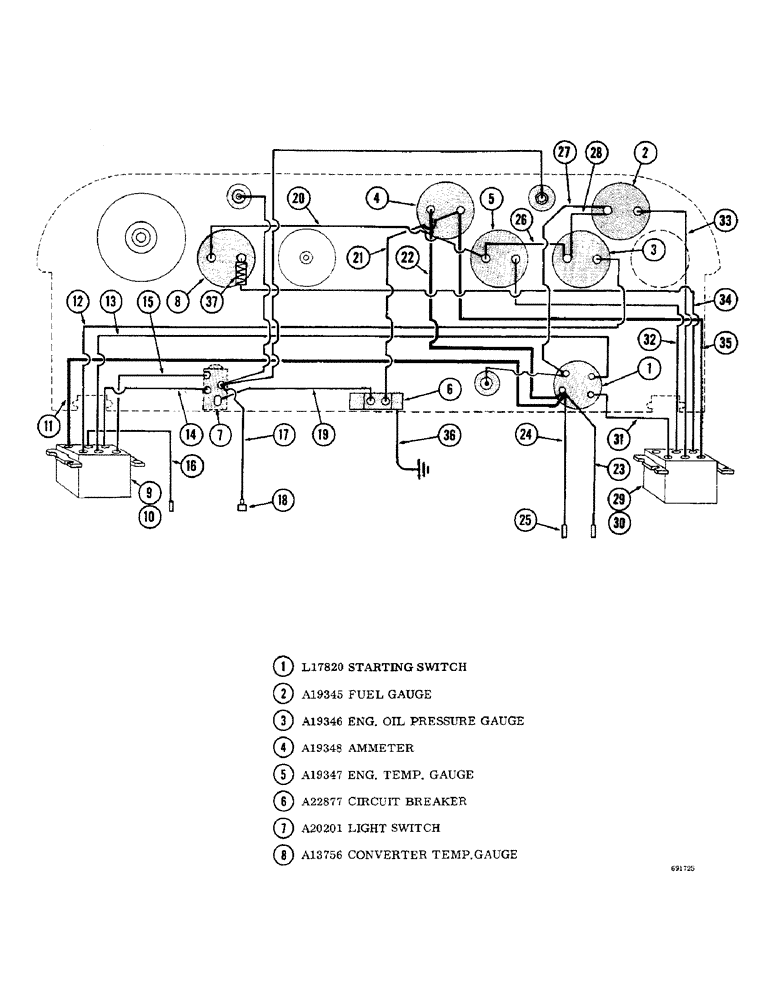

Схема запчастей Case W10B - (080) - INSTRUMENT PANEL, GAS ENGINE, USED WITH GENERATOR ELECTRICAL SYSTEM (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

1

L17820

SWITCH

- starting

1шт.

2

A19345

ELECTRICAL GAUGE

GAUGE - fuel

1шт.

3

A19346

ELECTRICAL GAUGE

GAUGE - engine oil pressure

1шт.

4

A19348

ELECTRICAL GAUGE

AMMETER - electrical

1шт.

5

A19347

ELECTRICAL GAUGE

GAUGE - engine temperature

1шт.

6

A22877

BREAKER,40A

- circuit

1шт.

7

A20201

SWITCH

- light

1шт.

8

A13756

GAUGE

- converter temperature

1шт.

9

A19351

WIRE ASSEMBLY - L.H., Includes: Ref. 10 - 16

1шт.

10

A13742

BLOCK - connector

1шт.

11

A19359

WIRE - switch solenoid terminal (Green - 24-3/4" long)

1шт.

12

A19361

WIRE - engine oil pressure (White - 24-3/4" long)

1шт.

13

A19362

WIRE - rear head light (Black - 9-1/2" long)

1шт.

15

A19358

WIRE - taillight (Yellow - 8-1/2" long)

1шт.

16

A19360

WIRE - stoplight (Blue - 28" long)

1шт.

17

A19367

WIRE - front lights (Black - 18" long)

1шт.

18

A8210

CONNECTOR, ELEC

CONNECTOR - 3 wire

1шт.

19

A19365

WIRE - breaker to light switch (Black - 8" long)

1шт.

20

A19366

WIRE - converter temperature to engine temperature (Black - 11-1/4" long)

1шт.

21

A19364

WIRE - breaker to ammeter (Black - 6" long)

1шт.

22

A19369

WIRE - ammeter to starting switch (Red - 8-1/4" long)

1шт.

23

A19508

WIRE - starting switch to stop light (Blue - 28" long)

1шт.

24

A19367

WIRE - starting switch to horn (Black - 18" long)

1шт.

25

A27213

CONNECTOR - 2 wire

1шт.

26

A19363

WIRE - temperature gauge to oil gauge (Black - 3-3/4" long)

1шт.

27

A19363

WIRE - starting switch to fuel gauge (Black - 3-3/4" long)

1шт.

28

A19363

WIRE - fuel to oil gauge (Black - 3-3/4" long)

1шт.

29

A19350

WIRE ASSEMBLY - R.H., Includes: Ref. 30 - 35

1шт.

30

A13742

BLOCK - connector

1шт.

31

A19356

WIRE - starting switch (Blue - 6-1/2" long)

1шт.

32

A19355

WIRE - engine temperature (Green - 12" long)

1шт.

33

A19354

WIRE - fuel gauge (White - 7-1/2" long)

1шт.

34

A19353

WIRE - converter temperature (Black - 23" long)

1шт.

35

A19352

WIRE- ammeter (Red - 16-1/2" long)

1шт.

36

A56181

ELECTRICAL WIRE

WIRE - panel to ground (Black - 24" long)

1шт.

37

A9348

BLOCK - terminal

1шт.

Выбрано товаров: 36
