Артикул
Название
Примечание
Количество

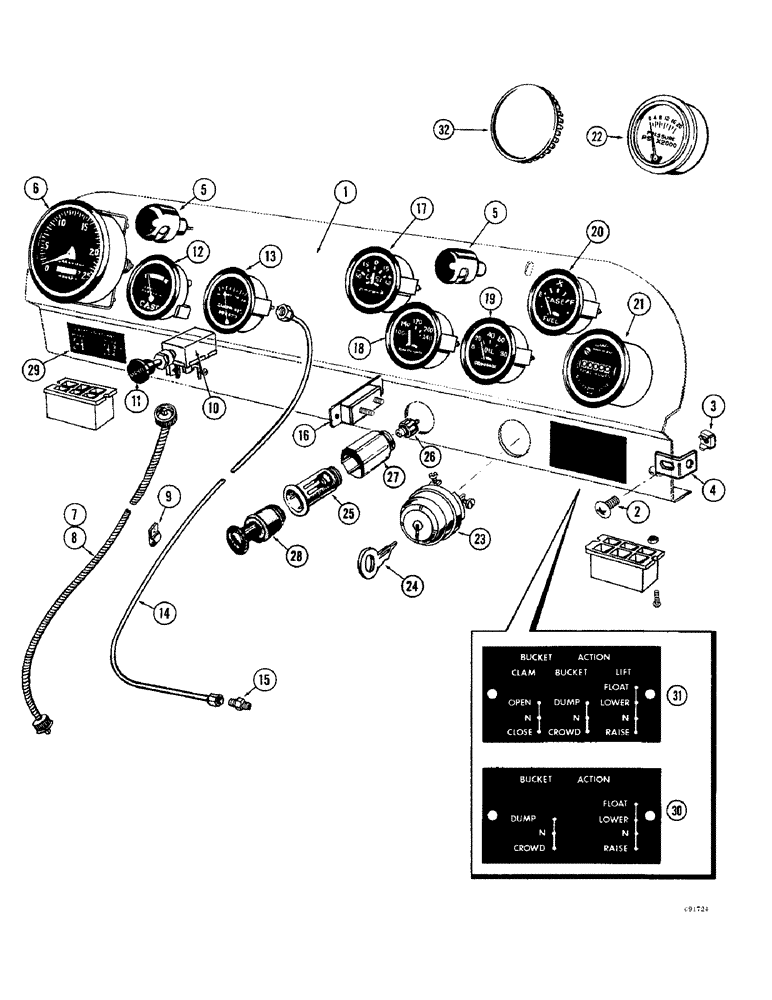

1
A19344
PANEL - instrument
1шт.
2
175-402
SCREW,Sl Truss Hd, 1/4" - 20 x 5/8"
- machine, truss head (1/4" - 20 NC x 5/8")
4шт.
4
A17270
CLIP - mounting
2шт.
5
A7642
LAMP
- dash (Parts list figure 88)
2шт.
6
A11190
TACHOMETER
- engine
1шт.
7
A12627
CABLE PULLING GRIP
DRIVE - tachometer, Includes: Ref. 8
1шт.
8
A13199
CABLE
- tachometer
1шт.
9
A27033
CLIP - tachometer drive
1шт.
10
A20201
SWITCH
- light, Includes: Ref. 11
1шт.
11
A7817
KNOB
- light switch
1шт.
12
A13756
GAUGE
- converter temperature
1шт.
13
A56447
ELECTRICAL GAUGE
GAUGE - converter pressure
1шт.
14
A17267
TUBE
- pressure
1шт.
15
222-681
FITTING,5/16"-24 x 1/8" NPT Fem, Comp
COUPLING - tube, 1/8" O.D. x 1/8" NPT
1шт.
16
A22877
BREAKER,40A
- circuit
1шт.
17
A19348
ELECTRICAL GAUGE
AMMETER - electrical
1шт.
18
A19347
ELECTRICAL GAUGE
GAUGE - engine temperature
1шт.
19
A19346
ELECTRICAL GAUGE
GAUGE - engine oil pressure
1шт.
20
A19345
ELECTRICAL GAUGE
GAUGE - fuel level
1шт.
21
A19520
HOURMETER
- engine (Optional)
1шт.
22
A19522
ELECTRICAL GAUGE
GAUGE - hydraulic pressure (Optional)
1шт.
23
L17820
SWITCH
- starting, Includes: Ref.24
1шт.
24
A20346
KEY
- starting switch
1шт.
25
G44916
SOCKET
- lighter, Includes: Ref. 26
1шт.
26
G44918
FUSE - lighter
1шт.
27
G46381
SHELL - lighter clamping
1шт.
28
A24134
CIGARETTE LIGHTER
LIGHTER UNIT - cigarette
1шт.
29
A17607
PLATE ASSY.
PLATE - shift pattern
1шт.
30
A19277
PLATE ASSY.
PLATE - bucket action (2 spool)
1шт.
31
A18406
PLATE ASSY.
PLATE - bucket action (3 spool)
1шт.
32
A19381
X
PLUG - button (Used in place of hourmeter or hydraulic pressure gauge)
1шт.
Выбрано товаров: 32
