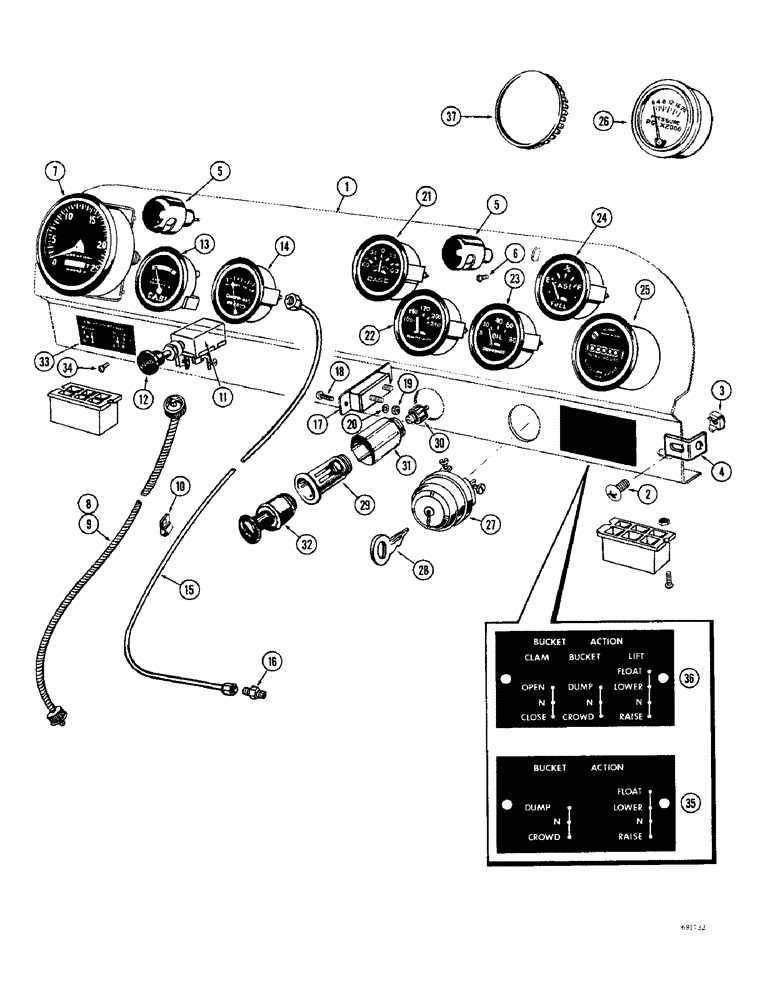

Запчасти Case W10B (070) - INSTRUMENT PANEL, GAS ENGINE, ALTERNATOR ELECTRICAL SYSTEM, PRIOR TO LOADER SERIAL NUMBER 9805550 (04) - ELECTRICAL SYSTEMS

1

A19344

PANEL - instrument

1шт.

2

175-402

SCREW,Sl Truss Hd, 1/4" - 20 x 5/8"

- machine, truss head (1/4" - 20 NC x 5/8")

4шт.

3

131-135

SPRING NUT,Tinn, U, 1/4"-20

4шт.

4

A17270

CLIP - mounting

2шт.

5

A7642

LAMP

- dash (Parts list Figure 088)

2шт.

6

187-1007

SCREW

- round head, self-tapping (#6 - 32 NC x 5/16")

4шт.

7

A11190

TACHOMETER

- engine

1шт.

8

A12627

CABLE PULLING GRIP

DRIVE - tachometer, Includes: Ref. 9

1шт.

9

A13199

CABLE

- tachometer

1шт.

10

A27033

CLIP - tachometer drive

1шт.

11

A20201

SWITCH

KIT - light switch, Includes: Ref. 12

1шт.

12

A7817

KNOB

- light switch

1шт.

13

A13756

GAUGE

- converter temperature

1шт.

14

A56447

ELECTRICAL GAUGE

GAUGE - converter oil pressure

1шт.

15

A17267

TUBE

- pressure

1шт.

16

222-681

FITTING,5/16"-24 x 1/8" NPT Fem, Comp

COUPLING - 1/8" tube

1шт.

17

A22877

BREAKER,40A

- circuit

1шт.

18

173-95

SCREW,Sl Rnd Hd, #10 - 24 x 3/8"

- machine, round head (#10 - 24 NC x 3/8")

2шт.

19

129-7

NUT,Hex, #10 - 24

- hex. (#10 - 24 NC)

2шт.

20

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

21

A55699

ELECTRICAL GAUGE

AMMETER - 60 amp

1шт.

22

A19347

ELECTRICAL GAUGE

GAUGE - engine temperature

1шт.

23

A19346

ELECTRICAL GAUGE

GAUGE - engine oil pressure

1шт.

24

A19345

ELECTRICAL GAUGE

GAUGE - fuel level

1шт.

25

A19520

HOURMETER

- engine (Optional)

1шт.

26

A19522

ELECTRICAL GAUGE

GAUGE - hydraulic pressure (Optional)

1шт.

27

L17820

SWITCH

- starter, Includes: Ref. 28

1шт.

28

A20346

KEY

- starting switch

1шт.

29

G44916

SOCKET

- cigarette lighter (Includes fuse and cable), Includes: Ref. 30

1шт.

30

G44918

FUSE - lighter

1шт.

31

G46381

SHELL - clamping, lighter socket

1шт.

32

A24134

CIGARETTE LIGHTER

LIGHTER UNIT - cigarette

1шт.

33

A17607

PLATE ASSY.

PLATE - transmission pattern

1шт.

34

187-570

SELF-TAP SCREW,Slotted Pan Hd, #10 x 1/2"

SCREW - round head, self-tapping (#10 - 24 NC x 1/4")

2шт.

35

A19277

PLATE ASSY.

PLATE - bucket action (2 spool)

1шт.

36

A18406

PLATE ASSY.

PLATE - bucket action (3 spool)

1шт.

37

A19381

X

PLUG - button (Used in place of hourmeter or hydraulic pressure gauge)

1шт.
