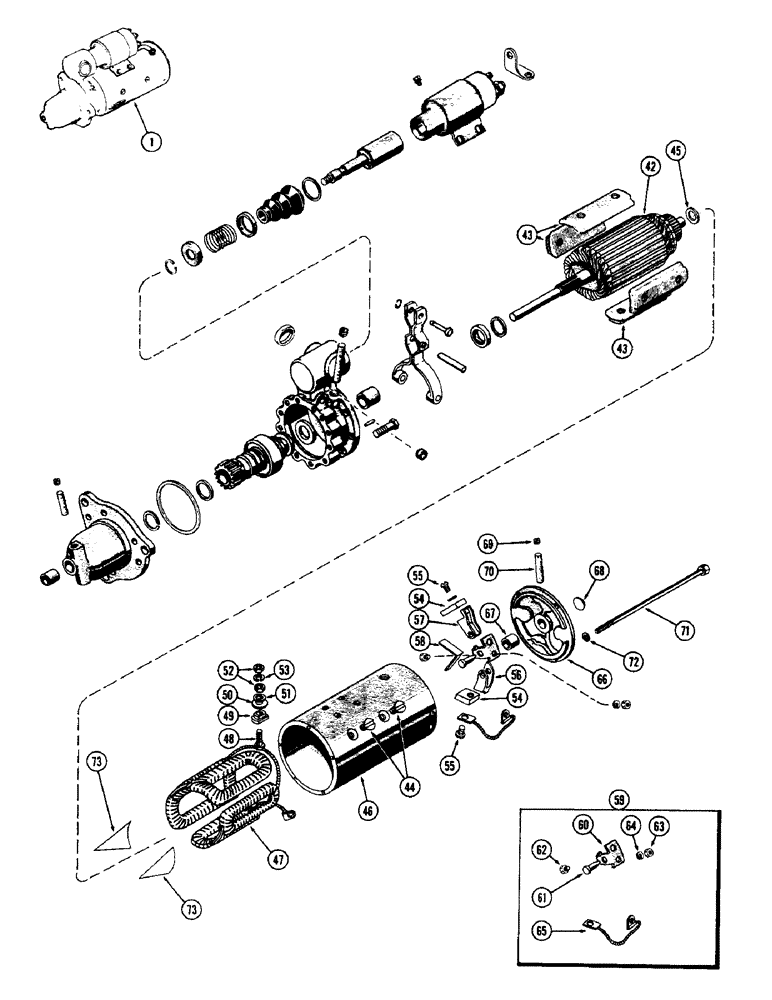

Запчасти Case W10B (065C) - A20633 STARTER, (377) SPARK IGNITION ENGINE (04) - ELECTRICAL SYSTEMS

1

A20633

STARTER MOTOR

STARTER ASSY. - , Includes: Ref. 42 - 73 and Ref. 2 - 41 on Figure 065A

1шт.

1

AR20633

REMAN-STARTER

Remanufactured Starter

1шт.

1

AC20633

CORE-STARTER

Return Number

1шт.

42

A25308

ARMATURE

ARMATURE

1шт.

43

R15008

SPARE PART SHOE - pole

4шт.

44

74-610

SCREW,3/8" - 24 x 5/8"

SCREW - pole shoe, 3/8 x 5/8" N.F. hex.

8шт.

45

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

WASHER - spacer, commutator end

1шт.

46

NSS

NOT SOLD SEPARAT

HOUSING - armature (Order A20633)

1шт.

47

A25318

COIL

COIL ASSY. - field, Includes: Ref. 48

1шт.

48

R15017

STUD

STUD - terminal field

1шт.

49

R15010

BUSHING

BUSHING - insulator, terminal stud

1шт.

50

A42010

WASHER

WASHER - insulator, terminal stud

1шт.

51

R15013

WASHER

WASHER - plain (25/64" I.D. x 11/16" O.D.)

1шт.

52

R15014

NUT

NUT - terminal stud (3/8" N.C. hex.)

2шт.

53

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

54

A20897

BRUSH, COMMUTATOR

BRUSH BRUSH - starter

1шт.

55

D32481

SELF-TAP SCREW,Sltd Pan Hd, #8-32 x 13/16", w/LW

SCREW - brush attaching

4шт.

56

A40217

HOLDER

HOLDER - grounded, brush

2шт.

57

R21590

HOLDER

HOLDER - insulated, brush

2шт.

58

R15025

SPRING

SPRING - brush pressure

1шт.

59

R15029

BRUSH

SUPPORT KIT - brush holder, Includes: Ref. 60 - 65

2шт.

60

NSS

NOT SOLD SEPARAT

SUPPORT - (Order R15029)

1шт.

61

R15035

PIN

PIN - brush holder

1шт.

62

175-449

SCREW,Phil Truss Hd, #10 - 32 x 3/4"

SCREW - support (#10-24 x 3/4" rd. hd.)

2шт.

63

R15032

X

NUT - #10-24 hex.

2шт.

64

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

65

R15030

ELECTRICAL WIRE

WIRE LEAD - ground

1шт.

66

R15019

FUNNEL

FRAME FRAME ASSY. - commutator end, Includes: Ref. 67 - 70

1шт.

67

R15020

BUSHING

BUSHING - armature shaft

1шт.

68

R15021

PLUG

PLUG - end (3/4" expansion type)

1шт.

69

221-1041

PLUG

PLUG - pipe, 1/8" slotted hd.

1шт.

70

R15023

WICK

WICK - oil

1шт.

71

R15106

BOLT

BOLT - through

2шт.

72

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

73

A41977

RUBBER INSULATOR

INSULATION - field coil

2шт.
