Запчасти Case W10B (064) - A24505 DISTRIBUTOR, WITH CENTER MOUNTED OIL PUMP (04) - ELECTRICAL SYSTEMS

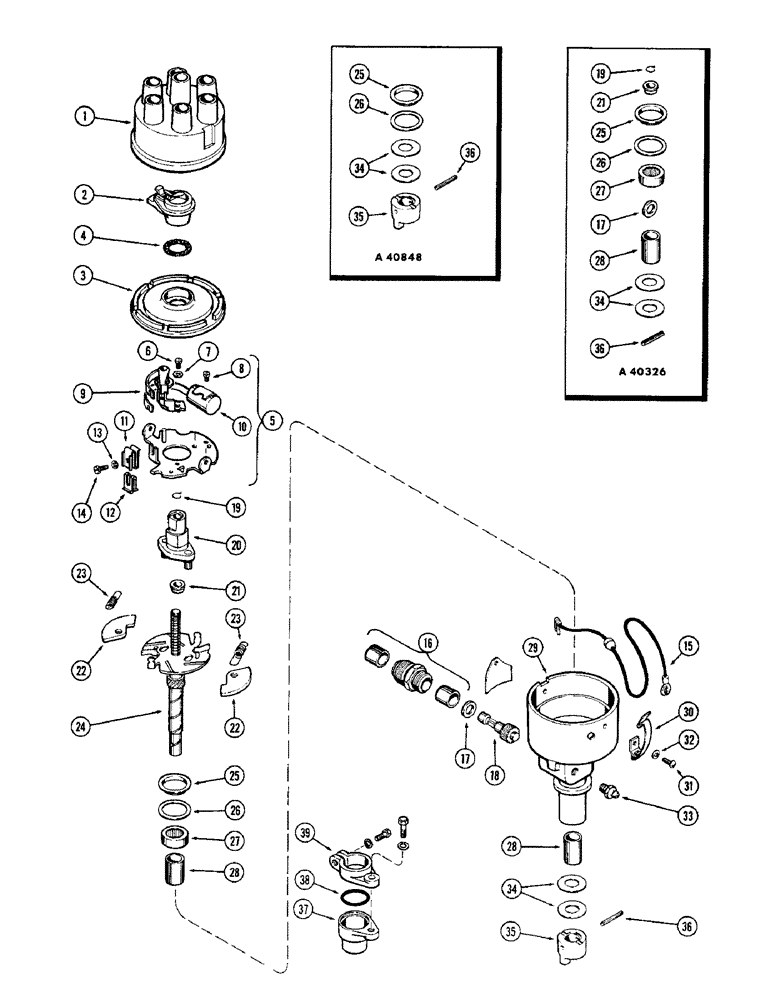

Схема запчастей Case W10B - (064) - A24505 DISTRIBUTOR, WITH CENTER MOUNTED OIL PUMP (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

A24505

DISTRIBUTOR

- (Presto-Lite #IBT-6403) (Not illust.) (Order 1-A57082 & 1-A57086), Includes: Ref. 1 - 39

1шт.

1

A24565

CAP

ASSY.

1шт.

2

A24566

ROTOR

1шт.

3

A24763

PLATE

- seal, Includes: Ref. 4

1шт.

4

2A4764

WASHER - felt

1шт.

5

A40330

PLATE

ASSY. - breaker (Replaces A24769), Includes: Ref. 6 - 15

1шт.

6

NSS

NOT SOLD SEPARAT

SCREW - contact set (#8-32 x 3/16")

1шт.

7

195-509

WASHER,3/16"

- #8 plain

1шт.

8

169-56

SCREW - condenser (#6-32 x 3/16")

1шт.

A40930

KIT

POINT & CONDENSER KIT (Not illust.), Includes: Ref. 9 and 10

1шт.

9

NSS

NOT SOLD SEPARAT

CONTACT SET

1шт.

10

NSS

NOT SOLD SEPARAT

CONDENSER - distributor

1шт.

11

NSS

NOT SOLD SEPARAT

CLIP - retaining

1шт.

12

NSS

NOT SOLD SEPARAT

INSULATION - clip screw

1шт.

13

195-506

WASHER,#6

- plain #6

1шт.

14

NSS

NOT SOLD SEPARAT

SCREW - spring clip

1шт.

15

A24772

HARNESS

WIRE - primary

1шт.

16

A24781

HOUSING - tach. drive (Incl. bushings)

1шт.

17

A24755

WASHER - thrust, tach. drive

1шт.

Part of Bearing Kit P/N A40326

1шт.

18

A24761

SHAFT

AND GEAR - tach. drive

1шт.

19

A24756

SNAP RING - cam retaining

1шт.

Part of Bearing Kit P/N A40326

1шт.

20

A24831

CAM AND STOP PLATE

1шт.

21

A24757

SPACER - cam

1шт.

Part of Bearing Kit P/N A40326

1шт.

22

A24754

WEIGHT - governor

2шт.

23

A24835

SET

SPRING - governor weight (Set of 2)

1шт.

24

A24833

DRIVE SHAFT

SHAFT - drive

1шт.

25

A24759

WASHER - upper, drive shaft

1шт.

Part of Bearing Kit P/N A40326

1шт.

Part of Coupling Kit P/N A40848

1шт.

26

A24758

WASHER - lower, drive shaft

1шт.

Part of Bearing Kit P/N A40326

1шт.

Part of Coupling Kit P/N A40848

1шт.

27

NSS

NOT SOLD SEPARAT

BEARING - needle (Order A40326)

1шт.

Part of Bearing Kit P/N A40326

1шт.

28

NSS

NOT SOLD SEPARAT

BEARING - bronze (Order A40326)

2шт.

Part of Bearing Kit P/N A40326

1шт.

29

NSS

NOT SOLD SEPARAT

BASE

1шт.

30

A40329

SPRING

CLAMP - cap

2шт.

31

A24779

SCREW - clamp (#8-32 x 5/16")

2шт.

32

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

33

219-6

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - 1/4" taper

1шт.

34

A24834

WASHER - thrust

2шт.

Part of Bearing Kit P/N A40326

1шт.

Part of Coupling Kit P/N A40848

1шт.

35

NSS

NOT SOLD SEPARAT

COUPLING - drive (Order A40848)

1шт.

Part of Coupling Kit P/N A40848

1шт.

36

138-58

LOCK PIN,1/8" x 13/16", Slotted

Pin, , coupling 1/8" x 13/16", Slotted

1шт.

Part of Coupling Kit P/N A40848

1шт.

37

A7621

INSERT - distributor support

1шт.

38

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING - support

1шт.

39

A7622

CLAMP - distributor

1шт.

A40326

PACKAGE, REPAIR

BEARING KIT - (Includes ref. 17, 19, 21, 25, 26, 27, 28, 34 & 36)

1шт.

A40848

BOX

COUPLING KIT - (Includes ref. 25, 26, 34, 35 & 36)

1шт.

Выбрано товаров: 56
