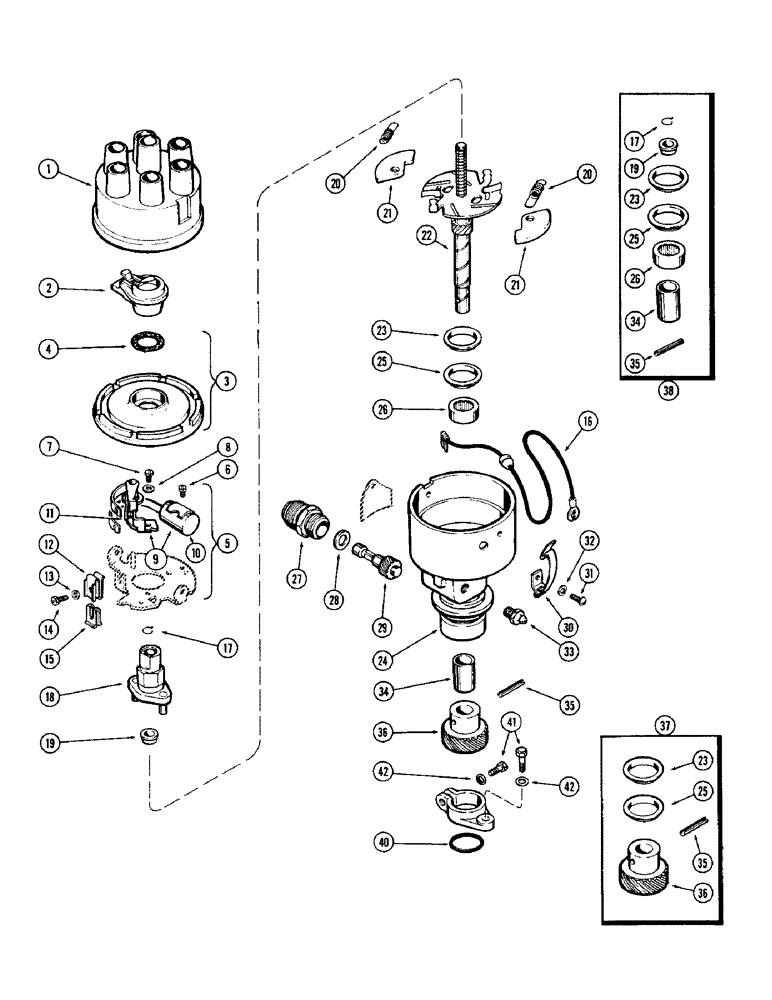

Запчасти Case W10B (063C) - A34978 DISTRIBUTOR, WITH FRONT MOUNTED OIL PUMP (04) - ELECTRICAL SYSTEMS

A34978

DISTRIBUTOR ASSY. - ignition, Includes: Ref. 1 - 42

1шт.

1

A24565

CAP

- distributor

1шт.

2

A24566

ROTOR

- distributor

1шт.

3

A24763

PLATE

ASSY. - seal, distributor, Includes: Ref. 4

1шт.

4

A24764

WASHER

- plate sealing (Felt)

1шт.

5

A40330

PLATE

ASSY. - breaker, Includes: Ref. 6 - 16

1шт.

6

NSS

NOT SOLD SEPARAT

SCREW - breaker contact

1шт.

7

169-56

SCREW - mach., #6 x 3/16" N.C. fillister hd.

1шт.

8

195-509

WASHER,3/16"

- small flat, #8

1шт.

9

A40930

KIT

- points & condenser, breaker, Includes: Ref. 10 and 11

1шт.

10

NSS

NOT SOLD SEPARAT

CONDENSER - distr. (Order ref. #9)

1шт.

11

NSS

NOT SOLD SEPARAT

CONTACT - breaker (Order ref. #9)

1шт.

12

A24774

CLIP

- retaining

1шт.

13

195-506

WASHER,#6

- plain, #6

1шт.

14

A24775

SCREW,0.138"-32 x 1/32"

- spring clamp, #6-32 x 5/8" hex.

1шт.

15

A24773

INSULATOR

- spring clamp

1шт.

16

A24772

HARNESS

WIRE - distr. to coil primary

1шт.

17

A24756

RING - snap, cam retaining

1шт.

18

A24831

PLATE - cam & stop, distr.

1шт.

19

A24757

SPACER- cam

1шт.

20

A24835

SET

SPRING KIT - governor weight (Set of 2)

1шт.

21

A41388

WEIGHT - governor (Set of 2)

1шт.

22

A41387

SHAFT

- drive, distr.

1шт.

23

A24753

WASHER

- drive shaft outer

1шт.

24

NSS

NOT SOLD SEPARAT

BASE ASSY. - distr. (Order A34978)

1шт.

25

A24752

WASHER

- drive shaft inner

1шт.

26

NSS

NOT SOLD SEPARAT

BEARING - needle (Order ref. #38)

1шт.

27

A24781

HOUSING - tach. drive w/bushing

1шт.

28

A24755

WASHER - thrust, tach. drive shaft

1шт.

29

A24761

SHAFT

- tach. drive w/gear, distr.

1шт.

30

A40329

SPRING

CLAMP - spring & hinge (Set of 2)

1шт.

31

NSS

NOT SOLD SEPARAT

SCREW - mounting, clamp

2шт.

32

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

33

219-6

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, 1/4"-28 taper straight

1шт.

34

NSS

NOT SOLD SEPARAT

BEARING - housing (Bronze) (Order ref. #38)

1шт.

35

138-60

LOCK PIN,1/8" x 15/16", Slotted

PIN, , Gear 1/8" x 15/16", Slotted

1шт.

37

A40332

GEAR

REPAIR KIT - gear & washer

1шт.

36

NSS

NOT SOLD SEPARAT

GEAR - drive shaft (Order A40332)

1шт.

38

A40331

BEARING

REPAIR KIT - thrust washer & bearing

1шт.

40

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

"O" RING - distributor

1шт.

41

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Distr. to block Hex, 3/8"-16 x 7/8", G5, Full Thd

2шт.

42

95-6

WASHER,3/8"

- plain () 3/8"

2шт.
