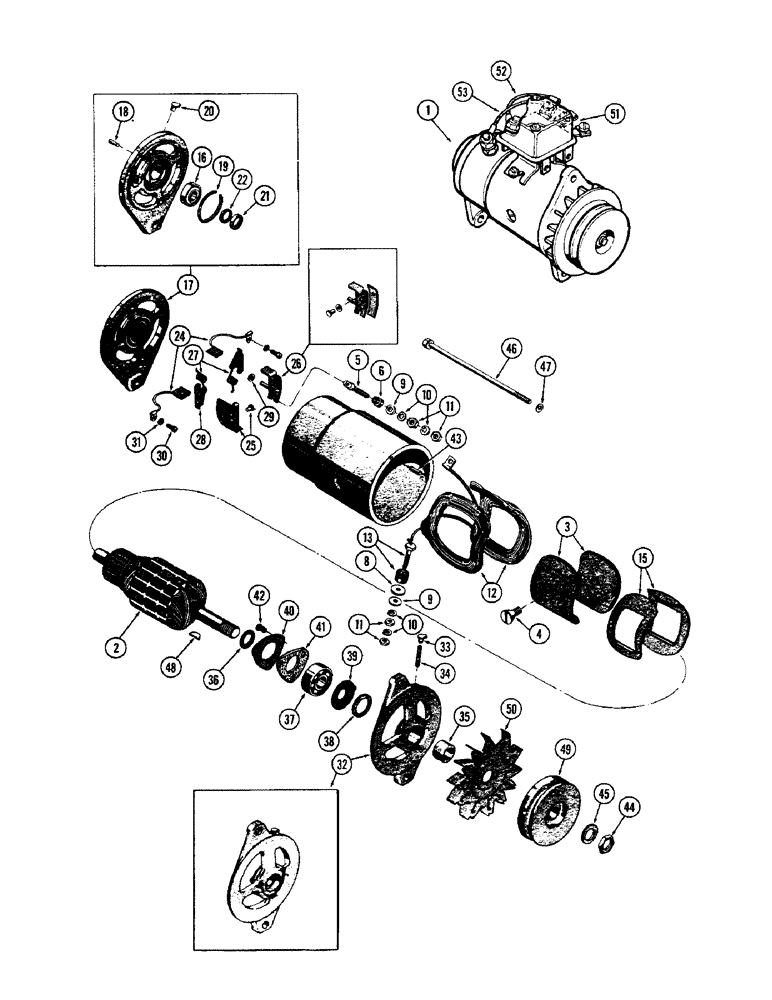

Запчасти Case W10B (063A) - A33983 GENERATOR, (377) SPARK IGNITION ENGINE (04) - ELECTRICAL SYSTEMS

1

A33983

GENERATOR

ASSY. - (Delco-Remy #1109444), Includes: Ref. 2 - 53

1шт.

2

A40377

ARMATURE

ASSY. - generator

1шт.

3

A40700

SHOE - generator pole

2шт.

4

74-610

SCREW,3/8" - 24 x 5/8"

- shoe pole, 3/8 x 5/8" N.F. flat hd.

2шт.

5

A40701

STUD

- terminal "A"

1шт.

6

R16147

BUSHING

- term, "A" insulator

1шт.

8

R16148

WASHER

- insulation, term. stud

1шт.

9

A41927

WASHER

- plain, term. stud

2шт.

10

192-17

LOCK WASHER,#12

Washer, Lock, , Terminal stud #12

4шт.

11

129-18

NUT,#12-24

- terminal stud, hex. #12-24

4шт.

12

R16149

COIL ASSY.

- field, Includes: Ref. 13 and 15

1шт.

13

A40702

STUD

- generator & terminal (Replaces 1-R15077 bushing & 1-R16150 stud)

1шт.

15

R16152

INSULATOR

- field coil

2шт.

16

A25461

BALL BEARING,0.6693" ID x 1.5748" OD x 0.4724"

BEARING - ball, comm. end

1шт.

17

A25413

HOUSING

ASSY. - commutator end, Includes: Ref. 18 - 22

1шт.

18

R15095

PIN - dowel, comm., end

1шт.

19

R15087

CLAMP - bearing (Rubber)

1шт.

20

219-202

OILER

- commutator end

1шт.

21

A41928

CUP - felt retainer

1шт.

22

A41929

WHEEL

WASHER - felt, comm. end

1шт.

24

R4286

BRUSH, COMMUTATOR

BRUSH - main

2шт.

25

A40703

NOZZLE HOLDER

HOLDER - ground brush

1шт.

26

A40704

NOZZLE HOLDER

HOLDER - insulated brush

1шт.

27

R16161

VALVE SPRING

SPRING - brush

2шт.

28

R15090

ARM

- brush

2шт.

29

NSS

NOT SOLD SEPARAT

WASHER - spacer, brush arm

2шт.

30

182-513

SCREW,Sl Pan Hd, #6 - 32 x 1/4"

- brush lead, #6-32 x 1/4" rd. hd.

2шт.

31

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, #6

2шт.

32

A25442

HOUSING

ASSY. - drive end, Includes: Ref. 33 and 34

1шт.

33

219-202

OILER

- housing

1шт.

34

R16165

WICK - oil, housing

1шт.

35

R16166

BUSHING

COLLAR - spacer, drive hsg., inner

1шт.

36

R15100

WASHER - spacer, drive hsg., inner

1шт.

37

G10623

BALL BEARING

BEARING - ball, drive housing

1шт.

38

R16168

WASHER

- felt, drive housing

1шт.

39

R16169

LARGE PLATE

PLATE - retainer, felt washer

1шт.

40

R15101

PLATE

- retainer, brg., drive hds.

1шт.

41

R16170

GASKET

- brg. retainer, hsg.

1шт.

42

A41959

SCREW,#10 - 32 x 3/8"

- retainer plate

3шт.

43

R15041

PIN - dowel, drive hsg.

1шт.

44

A25546

NUT

- armature shaft, dr. end

1шт.

45

R16171

SPRING WASHER

- lock, shaft nut

1шт.

46

A40129

BOLT

BOLT - gen. body & end hsg.

2шт.

47

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Generator bolt 5/16"

2шт.

48

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

Drive end #5, 1/8" x 5/8", HT

1шт.

49

A22366

PULLEY

- generator drive

1шт.

50

A25449

FAN

- vent, drive end

1шт.

51

A20792

REGULATOR

ASSY. - voltage, gen.

1шт.

52

R16179

ELECTRICAL WIRE

WIRE - armature term. to regulator (6" lg.)

1шт.

53

A41930

WIRE - field term. to regulator (4" lg.)

1шт.
