Запчасти Case W10B (060) - INSTRUMENT PANEL, DIESEL ENGINE, USED WITH ALTERNATOR AND GENERATOR ELECTRICAL SYSTEM (04) - ELECTRICAL SYSTEMS

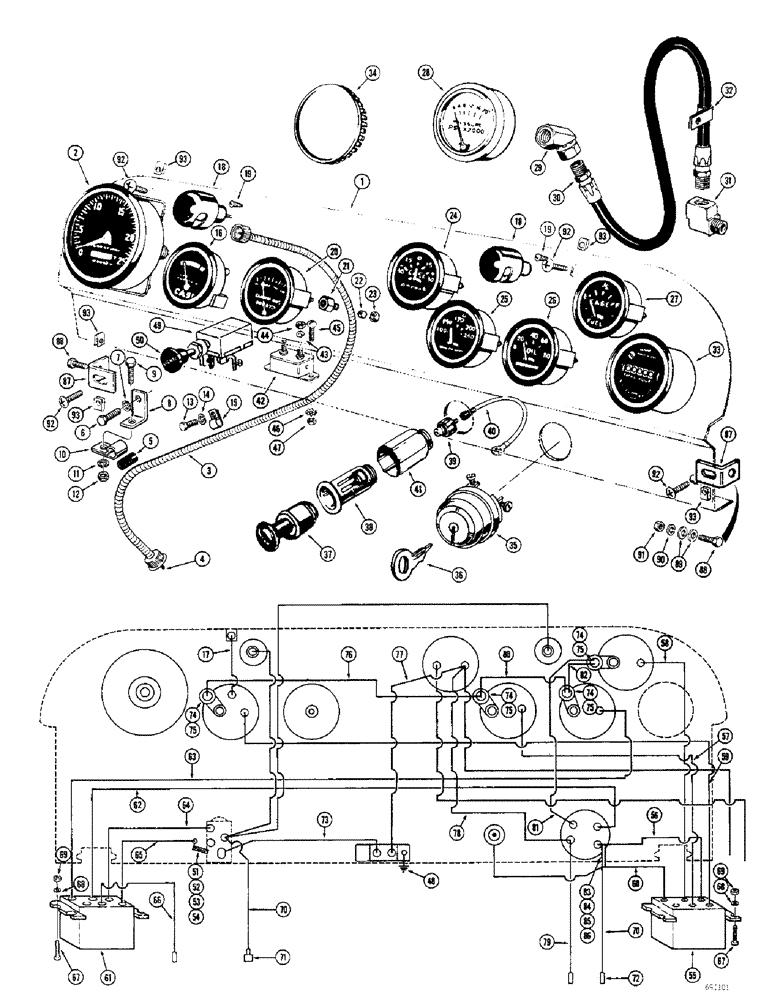

Схема запчастей Case W10B - (060) - INSTRUMENT PANEL, DIESEL ENGINE, USED WITH ALTERNATOR AND GENERATOR ELECTRICAL SYSTEM (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

1

A19344

PANEL - instrument

1шт.

2

A11190

TACHOMETER

- engine (Includes hourmeter)

1шт.

3

A12430

HOUSING

CABLE ASSEMBLY - tachometer drive, Includes: Ref. 4

1шт.

4

A13200

CABLE

- tachometer drive

1шт.

5

A12458

SLEEVE

LOOM - protective

1шт.

6

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

7

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

8

A18841

BRACKET - tachometer cable, Serial Range: clip-firewall

1шт.

9

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

10

A7922

CLIP

- cable to firewall bracket

1шт.

11

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

12

25-104

NUT,1/4"-20, G5

1шт.

13

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

1шт.

14

92-5

LOCK WASHER,5/16"

1шт.

15

A27033

CLIP - tachometer cable to side plate

1шт.

16

A13756

GAUGE

- converter oil temperature

1шт.

17

21625

WIRE - ground, gauge to panel bracket

1шт.

18

A14737

LAMP

ASSEMBLY - dash panel, 24 volt (Parts list Figure 088)

1шт.

19

187-1007

SCREW

- round head, self-tapping (#6 - 32 NC x 5/16")

1шт.

20

A56447

ELECTRICAL GAUGE

GAUGE - clutch pressure

1шт.

222-681

FITTING,5/16"-24 x 1/8" NPT Fem, Comp

COUPLING ASSEMBLY - flex fitting, Includes: Ref. 21 - 23

1шт.

21

NSS

NOT SOLD SEPARAT

COUPLING - flex fitting

1шт.

22

222-100

TUBE NUT,1/8" Tube

SLEEVE - flex fitting

1шт.

23

222-110

TUBE NUT,3/8"-24

NUT - flex fitting

1шт.

REFER TO ILLUSTRATION, REFER TO REF. 23,TUBE AND COUPLING A17267 AND COUPLING IS 222-600

1шт.

23a

A17267

TUBE

- pressure gauge (Not shown)

1шт.

23b

222-600

FITTING,5/16"-24 x 1/8 NPT, Comp

CONNECTOR - tube to transmission (Not shown)

1шт.

24

A55699

ELECTRICAL GAUGE

GAUGE - ammeter, 60 amp

1шт.

25

A19347

ELECTRICAL GAUGE

GAUGE - engine temperature

1шт.

26

A19346

ELECTRICAL GAUGE

GAUGE - engine oil pressure

1шт.

27

A19345

ELECTRICAL GAUGE

GAUGE - fuel level

1шт.

28

A19522

ELECTRICAL GAUGE

GAUGE - hydraulic pressure (Optional)

1шт.

29

A19523

ADAPTER - pressure, Serial Range: gauge-hose

1шт.

30

A19426

HOSE - adapter to control valve

1шт.

31

217-21

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- hose to control valve

1шт.

32

A26696

NO LONGER SERVICED

CLIP - hose to brake cylinder bracket

1шт.

33

L13298

ELECTRICAL GAUGE

GAUGE - hourmeter, 24 volt (Optional)

1шт.

34

205-68

HOLE PLUG BUTTON,2 3/32"

PLUG - button, gauge opening (Used in place of hourmeter or hydraulic pressure gauge)

1шт.

35

L17820

SWITCH

- starting, Includes: Ref. 36

1шт.

36

A20346

KEY

- starting switch

1шт.

37

A24134

CIGARETTE LIGHTER

LIGHTER - cigarette

1шт.

38

G44916

SOCKET

- lighter, Includes: Ref. 39 and 40

1шт.

39

G44918

CIRCUIT BREAKER - protective

1шт.

40

G44022

ELECTRICAL WIRE

WIRE -, Serial Range: lighter-switch

1шт.

41

G46381

SHELL- retainer, lighter socket

1шт.

42

A22877

BREAKER,40A

CIRCUIT BREAKER - light switch

1шт.

43

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

44

129-27

NUT,Hex, #10 - 32

- hex, #10 - 32 NF

2шт.

45

173-95

SCREW,Sl Rnd Hd, #10 - 24 x 3/8"

- machine, round head, #10 - 24 NC x 3/8"

2шт.

46

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

2шт.

47

129-7

NUT,Hex, #10 - 24

- hex, #10 - 24 NC

2шт.

48

A56181

ELECTRICAL WIRE

WIRE - ground, circuit breaker

1шт.

49

A20201

SWITCH

- headlight

1шт.

50

A7817

KNOB

- light switch

1шт.

51

A14900

RESISTOR

- voltage, taillight

1шт.

52

173-75

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

- machine, round hd., #8 - 32 NC x 3/8"

1шт.

53

192-6

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

54

129-6

NUT,#8-32

1шт.

L10078

HARNESS - wiring, panel (R.H.), Includes: Ref. 55 - 60

1шт.

55

A13742

BLOCK - harness connector

1шт.

56

A13743

WIRE - block to starting switch (Red - 7" long)

1шт.

57

A19355

WIRE - block to engine temperature gauge (Green - 12" long)

1шт.

58

A19354

WIRE - block to fuel level gauge (White - 7-1/2" long)

1шт.

59

A19353

WIRE - block to converter temperature gauge (Black - 23" long)

1шт.

60

A19356

WIRE - block to starting switch (Blue - 6-1/2" long)

1шт.

L10079

HARNESS - wiring, panel (L.H.), Includes: Ref. 61 - 66

1шт.

61

A13742

BLOCK - harness connector

1шт.

62

A19359

WIRE - block to solenoid terminal of starting switch (Green - 24-3/4" long)

1шт.

63

A19361

WIRE - block to engine oil pressure gauge (White - 24/34" long)

1шт.

64

A19357

WIRE - block to rear headlight terminal of switch (Black - 9-1/2" long)

1шт.

65

A19358

WIRE - block to taillight terminal of switch (Yellow - 8-1/2" long)

1шт.

66

A19360

WIRE - block to stop light switch (Blue - 28" long)

1шт.

67

173-61

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

- machine, round head (#6 - 32 NC x 1/2")

4шт.

68

192-5

LOCK WASHER,#6

WASHER, LOCK, #6

4шт.

69

129-5

NUT,#6-32

4шт.

70

A19367

WIRE - light switch to front headlights, starting switch to horn (Black - 18" long)

2шт.

71

A8210

CONNECTOR, ELEC

CONECTOR - three wire (Front headlights)

1шт.

72

A27213

CONNECTOR - two wire (Horn)

1шт.

73

A19365

WIRE - circuit breaker to light switch (Black - 8" long)

1шт.

74

A19349

RESISTOR

- voltage, gauge

4шт.

75

195-12

WASHER,#10

- plain () #10

4шт.

76

A19366

WIRE - converter temperature gauge to engine tempature gauge (Black - 11-1/4" long)

1шт.

77

A19364

WIRE - circuit breaker to ammeter (Black - 6" long)

1шт.

78

A19369

WIRE - ammeter to starting switch (Red - 8-1/4" long)

1шт.

79

A19502

WIRE - starting switch to stop light switch (Blue - 28" long)

1шт.

80

A19363

WIRE - engine temperature gauge to engine oil pressure gauge (Black - 3-3/4" long)

1шт.

81

A19363

WIRE - starting switch to fuel level gauge (Black - 3-3/4" long)

1шт.

82

A19363

WIRE - fuel level gauge to engine oil pressure gauge (Black - 3-3/4" long)

1шт.

83

A9348

BLOCK - electrical terminal

1шт.

84

173-61

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

- machine, round head (#6 - 32 NC x 1/2")

1шт.

85

192-5

LOCK WASHER,#6

WASHER, LOCK, #6

1шт.

86

129-5

NUT,#6-32

1шт.

87

A17270

CLIP - mounting, instrument panel

2шт.

86

129-5

NUT,#6-32

1шт.

88

13-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

2шт.

89

95-4

WASHER,1/4"

- plain () 1/4"

2шт.

90

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

91

25-144

JAM NUT,Jam, 1/4"-20, G5

- hex., jam (1/4" - 20 NC)

1шт.

92

175-405

SCREW,Phil Truss Hd, 1/2" - 20 x 1/2"

- machine, truss head (1/4" - 20 NC x 1/2") Zinc plated

4шт.

93

131-120

NUT

- Tinnerman (1/4" - 20 NC)

5шт.
