Запчасти Case W10B (056) - GENERATOR ELECTRICAL SYTEM, DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

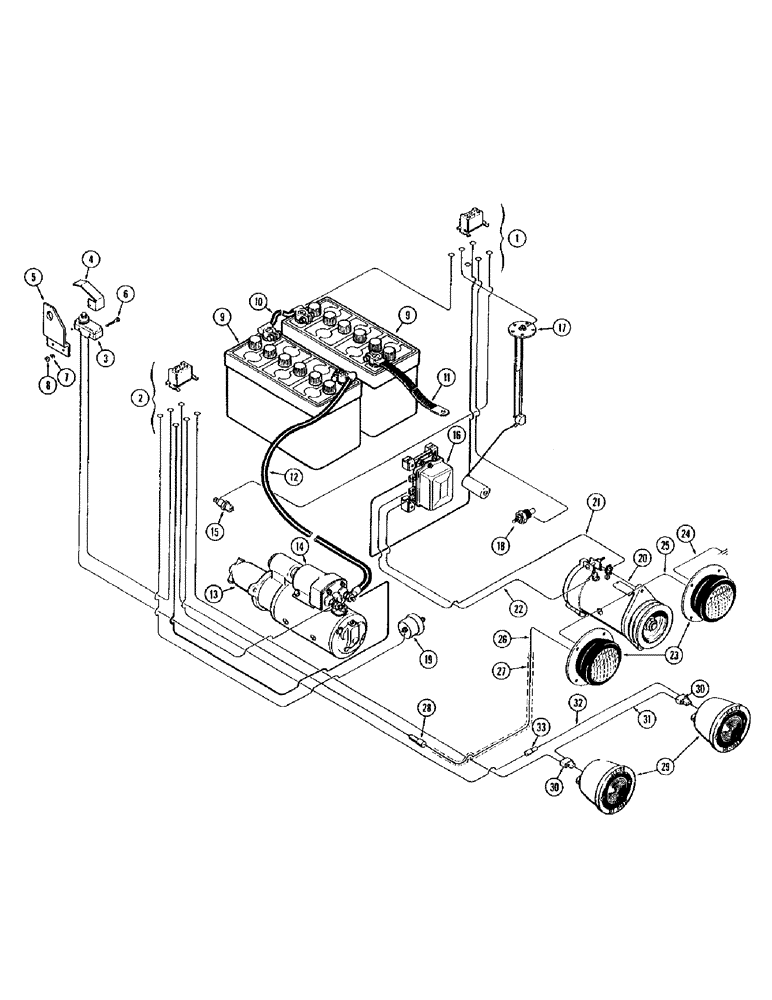

Схема запчастей Case W10B - (056) - GENERATOR ELECTRICAL SYTEM, DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

1

A19372

SPARE PART HARNESS - wiring, R.H.

1шт.

2

A19373

SPARE PART HARNESS - wiring, L.H.

1шт.

3

A19513

SWITCH

SWITCH - neutral start

1шт.

A19515

SPARE PART PIN - plunger, switch (Not illustrated)

1шт.

4

L11390

SPARE PART GUARD - neutral start switch

1шт.

5

A19514

SPARE PART PLATE - mounting, neutral start switch

1шт.

6

173-68

SCREW,Sl Rnd Hd, #6 - 32 x 1 1/4"

SCREW - machine, round head (#6 - 32 NC x 1-1/4")

2шт.

7

192-5

LOCK WASHER,#6

WASHER, LOCK, #6

2шт.

8

129-5

NUT,#6-32

NUT, #6-32

2шт.

9

14H90

BATTERY - electrical, 12 volt

2шт.

10

A18926

CABLE

CABLE - jumper (18" long)

1шт.

11

A27069

CABLE

CABLE - negative terminal to ground (15" long)

1шт.

12

A18925

SPARE PART CABLE - positive terminal to starter solenoid (38" long)

1шт.

13

A15485

STARTING MOTOR

STARTER - engine, 24 volt (Parts list Figures 058 and 059C), Includes: Ref. 14

1шт.

13

RR46156

REMAN-STARTER

Remanufactured Starter

1шт.

13

RC46156

CORE-STARTER

Return Number

1шт.

14

A42376

SWITCH

SOLENOID - starter (replaces A15385)

1шт.

15

A13795

SENDER UNIT

SENDER SENDING UNIT - converter temperature

1шт.

16

A14760

X

REGULATOR - voltage, 24 volt

1шт.

17

A18869

SENDER UNIT

SENDER SENDING UNIT - fuel gauge

1шт.

18

A21462

SENDER UNIT

SENDER SENDING UNIT - engine temperature

1шт.

19

A35031

SENDER UNIT

SENDER SENDING UNIT - engine oil pressure

1шт.

20

A22682

GENERATOR

GENERATOR - electrical, 24 volt (Parts list Figure 057A)

1шт.

21

A18937

WIRE - generator to regulator (Black - 75" long)

1шт.

22

A18938

WIRE - generator to regulator (Red - 75" long)

1шт.

23

A15932

X

LIGHT - rear (Parts list Figure 086)

2шт.

24

A15941

ELECTRICAL WIRE

WIRE WIRE - ground, R.H. rear light

1шт.

25

A16367

ELECTRICAL WIRE

WIRE WIRE - connecting, L.H. to R.H. rear light

1шт.

26

A15948

ELECTRICAL WIRE

WIRE WIRE - harness to L.H. rear light

1шт.

27

A27201

SPARE PART LOOM - wire protector

1шт.

28

A27213

SPARE PART CONNECTOR - wire, harness to rear lights

1шт.

29

L11000

INTERIOR LIGHT

LIGHT - stop and tail, 24 volt (Parts list Figure 086)

2шт.

30

A8210

CONNECTOR, ELEC

CONNECTOR CONNECTOR - wire, Serial Range: stoplights-harness

2шт.

31

A13252

ELECTRICAL WIRE

WIRE WIRE - connecting, R.H. to L.H. stoplight

1шт.

32

A13251

ELECTRICAL WIRE

WIRE WIRE - connecting, harness to R.H. stoplight

1шт.

33

A27213

SPARE PART CONNECTOR -, Serial Range: harness-stoplight

1шт.

Выбрано товаров: 36
