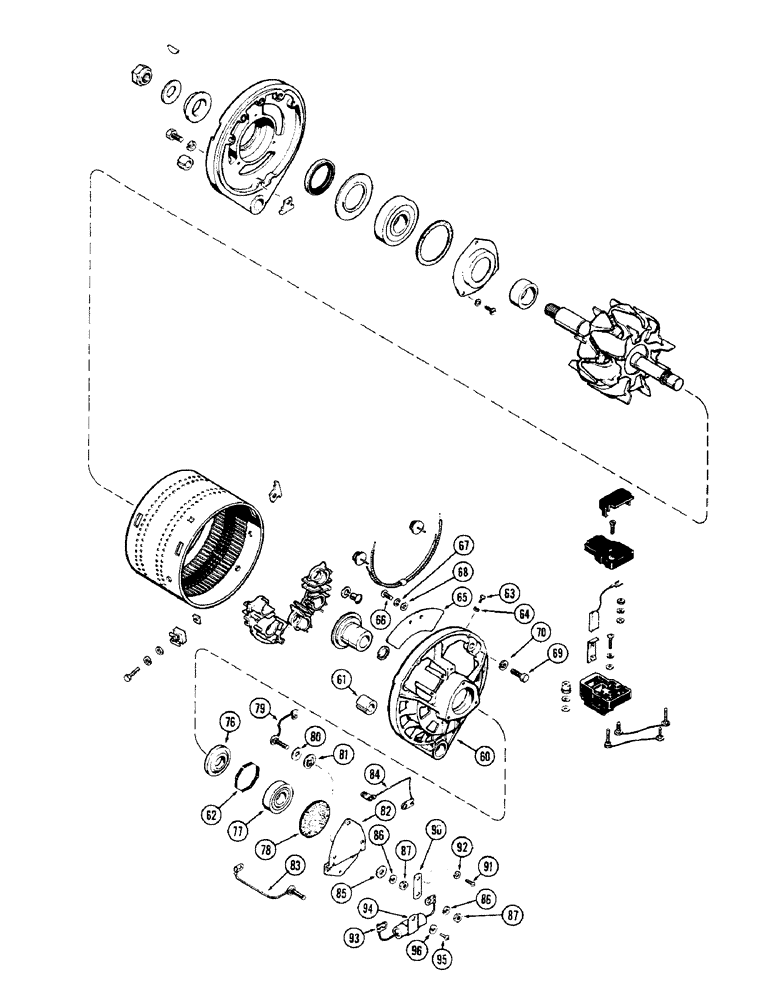

Запчасти Case W10B (055A) - A56095 ALTERNATOR, (401) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

A56095

ALTERNATOR

ALTERNATOR ASSY. - , Includes: Ref. 60 - 96 and Ref. 1 - 59 on Figure 54

1шт.

60

A40804

SPARE PART FRAME ASSY. - slip ring, Includes: Ref. 61 and 62

1шт.

61

A42144

BUSHING - mtg. hinge, slip ring end

1шт.

62

A42110

CLAMP - brg. retainer

1шт.

63

173-210

SCREW,Sl Rnd Hd, #10 - 24 x 3/8"

SCREW - grond, #10-24 x 3/8" rd. hd.

1шт.

64

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

65

A42141

BAFFLE - fan

1шт.

66

173-274

SCREW,Sl Rnd Hd, #8 - 32 x 1/2"

SCREW - baffle, #8-16 x 1/2" rd. hd.

2шт.

67

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

68

A42138

WASHER - baffle screw

2шт.

69

114-5

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5

BOLT - slip ring end, 1/4 x 3/4" N.F. hex.

3шт.

70

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3шт.

76

A41031

COLLAR - slip ring end

1шт.

77

A25476

BEARING

BEARING - ball, slip ring end

1шт.

78

A42149

SPARE PART GASKET - retainer plate

1шт.

79

A25998

TERMINAL - negative, battery

1шт.

80

A42136

WASHER - battery term (Sq. hole)

1шт.

81

A42142

SPARE PART BUSHING - insulated, term

1шт.

82

A25994

PLATE - end retainer

1шт.

83

A25999

SPARE PART TERMINAL - positive, battery

1шт.

84

A42152

ELECTRICAL WIRE

WIRE LEAD - field term

1шт.

85

A41927

WASHER

WASHER - plain, batt. terminal

2шт.

86

192-17

LOCK WASHER,#12

Washer, Lock, #12

4шт.

87

129-18

NUT,#12-24

NUT - battery term., #12 N.C. hex.

4шт.

90

A42150

SUPPORT

STRAP - ground

1шт.

91

173-275

SCREW - end plate, #8-32 x 7/16" rd. hd.

3шт.

92

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

3шт.

93

A40946

TANK

CAPACITOR - alternator

1шт.

94

A42132

BRACKET - capacitor

1шт.

95

173-224

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

SCREW - bracket, #8-32 x 1/4" rd. hd.

1шт.

96

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

1шт.
