Запчасти Case W10B (049A) - A32617 CARBURETOR, (377) SPARK IGNITION ENGINE, USED WITH OIL BATH AIR CLEANER (03) - FUEL SYSTEM

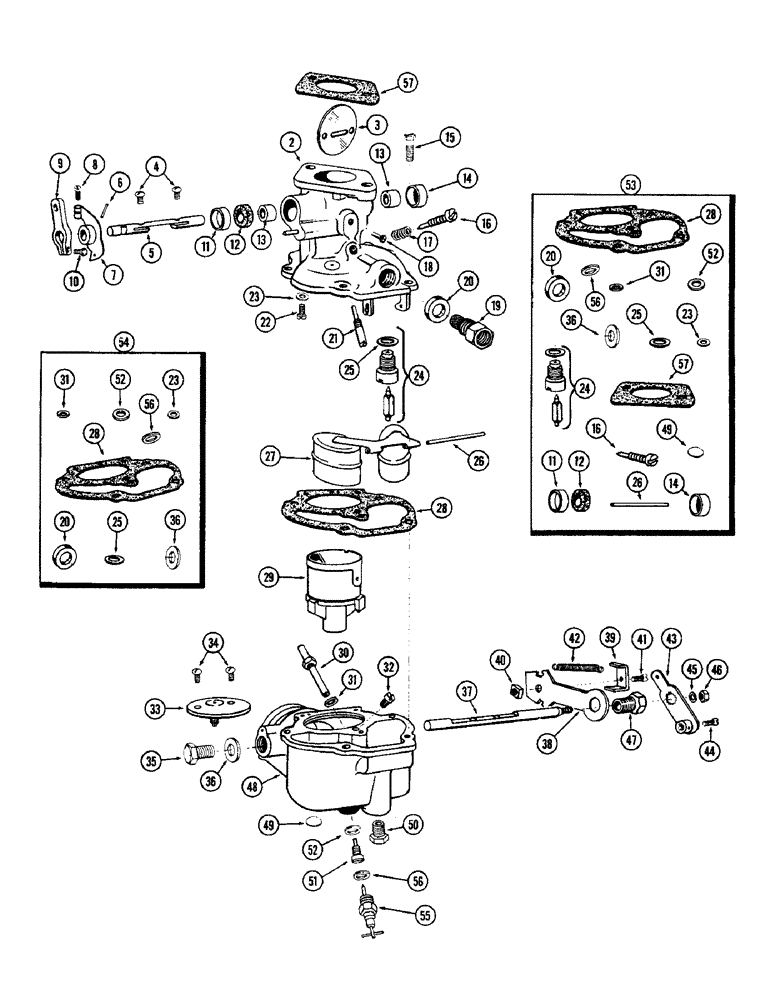

Схема запчастей Case W10B - (049A) - A32617 CARBURETOR, (377) SPARK IGNITION ENGINE, USED WITH OIL BATH AIR CLEANER (03) - FUEL SYSTEM

Артикул

Название

Примечание

Количество

A32617

CARBURETOR - engine fuel, Includes: Ref. 2 - 52

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - throttle

1шт.

3

A41359

PLATE - throttle

1шт.

4

A24888

SCREW - throttle plate

2шт.

5

40244

SHAFT - throttle

1шт.

6

138-36

LOCK PIN,3/32" x 7/16", Slotted

PIN, , Stop to shaft 3/32" x 7/16", Slotted

1шт.

7

B51508

LEVER - stop, throttle shaft

1шт.

8

B51581

SCREW - stop

1шт.

9

A40010

LEVER - clamp, throttle shaft

1шт.

10

B51584

SCREW - clamp lever

1шт.

11

A40008

WASHER - shaft seal

2шт.

Part of Repair Kit A24905

1шт.

12

A40007

SEAL

- throttle shaft

2шт.

Part of Repair Kit A24905

1шт.

13

B51497

BUSHING

- throttle shaft

2шт.

14

A40006

PLUG - shaft hole

1шт.

Part of Repair Kit A24905

1шт.

15

A24890

SCREW - throttle, Serial Range: body-bowl

6шт.

16

B51263

SCREW

- idle adjusting

1шт.

Part of Repair Kit A24905

1шт.

17

B51407

SPRING

- idle screw

1шт.

18

B51631

SCREW - venturi

1шт.

19

B51485

FILTER - plug

1шт.

20

B51614

WASHER

- filter screen

1шт.

Part of Repair Kit A24905

1шт.

21

B51301

JET

- idle

1шт.

22

A24903

JET - economizer

1шт.

23

B51610

WASHER

- economizer jet

1шт.

Part of Repair Kit A24905

1шт.

24

A25577

VALVE

- jet, Includes: Ref. 25

1шт.

Part of Repair Kit A24905

1шт.

25

B51618

WASHER

- valve seat

1шт.

Part of Repair Kit A24905

1шт.

26

B51429

AXLE

- float

1шт.

27

A24891

FLOAT

ASSY.

1шт.

28

A24889

GASKET

- throttle, Serial Range: body-bowl

1шт.

29

A24898

VENTURI

1шт.

30

A24900

JET - main discharge

1шт.

31

A24901

WASHER - discharge jet

1шт.

32

A24902

VENT - well

1шт.

33

A24893

PLATE - choke

1шт.

34

A24896

SCREW,Sl Rnd Hd, #5 - 40 x 1/4", w/ LW

- choke plate

2шт.

35

B51449

PLUG

- choke shaft hole

1шт.

36

B51618

WASHER

- plug

1шт.

37

A24894

SHAFT - choke

1шт.

38

B51398

BRACKET - choke, Includes: Ref. 39 - 41

1шт.

39

B51402

CLAMP - choke rod

1шт.

40

129-76

SQUARE NUT,#8 - 36

- clamp screw, #10-24 sq., Includes: Ref. 41

1шт.

41

B51581

SCREW - clamp

1шт.

42

B51414

SPRING - return

1шт.

43

B51379

LEVER - choke, Includes: Ref. 44

1шт.

44

B51579

SCREW - swivel

1шт.

45

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

46

129-36

NUT,#8-36

- lever to shaft, hex. #8-36

1шт.

47

B51455

SCREW - choke bracket

1шт.

48

A24892

BOWL - fuel, Includes: Ref. 49

1шт.

49

B51442

FILTER

DISC - drain

1шт.

Part of Repair Kit A24905

1шт.

50

B51541

PLUG

- drain

1шт.

51

A24899

JET

- main

1шт.

52

B51624

WASHER

- main jet

1шт.

Part of Repair Kit A24905

1шт.

53

A24905

KIT

REPAIR KIT, Incl. Refs. 11, 12, 14, 16, 20, 23, 24, 25, 49, 52, 54, 56 and 57

1шт.

54

A24904

KIT

GASKET KIT - (Incl. ref. 20, 23, 25, 28, 31, 36, 52, & 56)

1шт.

Part of Repair Kit A24905

1шт.

55

A24897

JET

ADJUSTMENT ASSY. - main jet, Includes: Ref. 56

1шт.

56

B51614

WASHER

- adjustment assy.

1шт.

Part of Repair Kit A24905

1шт.

57

A27776

GASKET

-, Serial Range: carburetor-manifold

1шт.

Part of Repair Kit A24905

1шт.

Выбрано товаров: 70
