Запчасти Case W10B (048) - A24552 CARBURETOR, (377) SPARK IGNITION ENGINE, USED WITH DRY TYPE AIR CLEANER (03) - FUEL SYSTEM

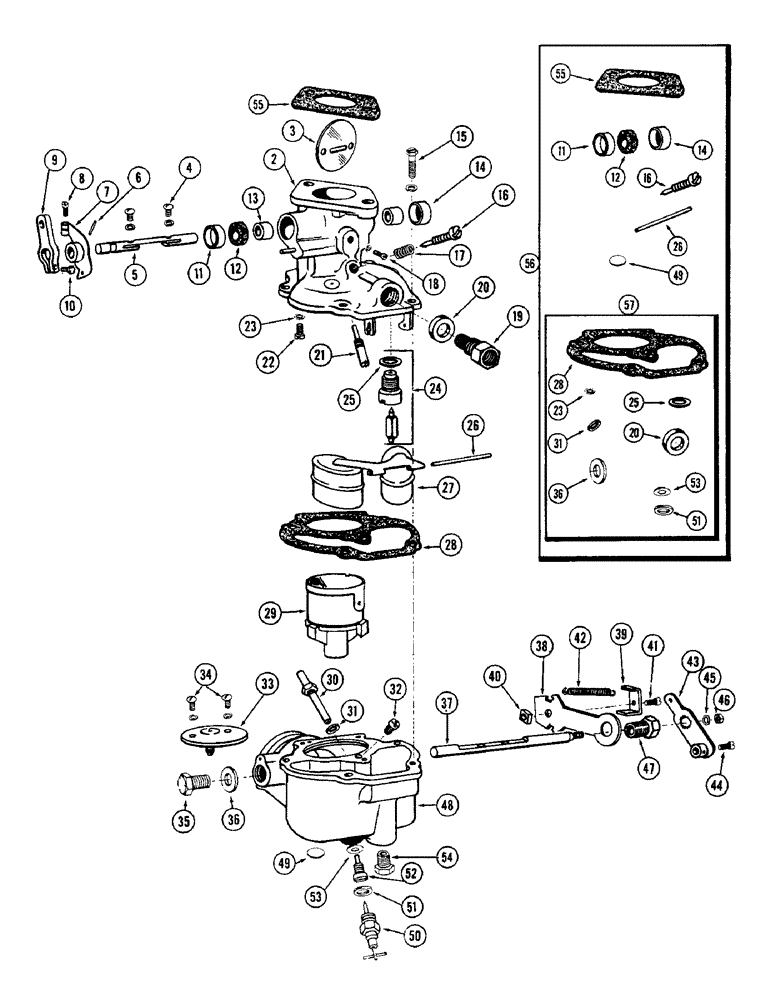

Схема запчастей Case W10B - (048) - A24552 CARBURETOR, (377) SPARK IGNITION ENGINE, USED WITH DRY TYPE AIR CLEANER (03) - FUEL SYSTEM

Артикул

Название

Примечание

Количество

A24552

CARBURETOR ASSY. - engine fuel (Not illust.), Includes: Ref. 2 - 55

1шт.

2

NSS

NOT SOLD SEPARAT

THROTTLE - body

1шт.

3

A41359

PLATE - throttle

1шт.

4

A24888

SCREW - throttle, Serial Range: plate-shaft

2шт.

5

A40009

SHAFT - throttle

1шт.

6

138-36

LOCK PIN,3/32" x 7/16", Slotted

PIN, , Stop to shaft 3/32" x 7/16", Slotted

1шт.

138-39

LOCK PIN,3/32" x 5/8", Slotted

PIN, , Clamp lever to shaft 3/32" x 5/8", Slotted

1шт.

7

A24886

LEVER - stop, throttle shaft

1шт.

8

B51581

SCREW - stop

1шт.

9

A40010

LEVER - clamp, throttle shaft

1шт.

10

B51584

SCREW - clamp lever

1шт.

11

B59344

RETAINER - packing washer

1шт.

12

B51534

WASHER

- packing, throttle shaft

1шт.

13

B51497

BUSHING

- throttle shaft

2шт.

14

B51438

PLUG

- shaft hole

1шт.

Part of Repair Kit A24905

1шт.

15

A24890

SCREW - throttle, Serial Range: body-bowl

6шт.

16

B51263

SCREW

- idle adjusting

1шт.

Part of Repair Kit A24905

1шт.

17

B51407

SPRING

- idle screw

1шт.

18

B51631

SCREW - venturi

1шт.

19

A40319

FILTER - plug

1шт.

20

B51314

WASHER - filter screen

1шт.

21

B51301

JET

- idle

1шт.

22

A24903

JET - economizer

1шт.

23

B51610

WASHER

- economizer jet

1шт.

Part of Repair Kit A24905

1шт.

24

A25577

VALVE

- fuel, Includes: Ref. 25

1шт.

Part of Repair Kit A24905

1шт.

25

B51618

WASHER

- valve seat

1шт.

26

B51429

AXLE

- float

1шт.

Part of Repair Kit A24905

1шт.

27

A24891

FLOAT

ASSY.

1шт.

28

A24889

GASKET

- throttle, Serial Range: body-bowl

1шт.

Part of Repair Kit A24905

1шт.

29

A24898

VENTURI

1шт.

30

A24900

JET - main discharge

1шт.

31

A24901

WASHER - discharge jet

1шт.

Part of Repair Kit A24905

1шт.

33

A24092

VENT - well

1шт.

33

A24893

PLATE - choke

1шт.

34

A24896

SCREW,Sl Rnd Hd, #5 - 40 x 1/4", w/ LW

- choke, Serial Range: plate-shaft

2шт.

35

B51449

PLUG

- choke shaft hole

1шт.

36

B51618

WASHER

- plug

1шт.

Part of Repair Kit A24905

1шт.

37

A24894

SHAFT - choke

1шт.

38

A24895

BRACKET - choke, Includes: Ref. 39 - 41

1шт.

39

B51402

CLAMP - choke rod

1шт.

40

129-76

SQUARE NUT,#8 - 36

- clamp screw, #10-24 sq.

1шт.

41

B51584

SCREW - clamp

1шт.

42

B51412

SPRING

- return

1шт.

43

B51378

LEVER

- choke, Includes: Ref. 44

1шт.

44

B51579

SCREW - swivel

1шт.

45

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

46

129-36

NUT,#8-36

- lever to shaft, hex. #8-36

1шт.

47

B51455

SCREW - choke bracket

1шт.

48

A24992

THRUST WASHER

BOWL - fuel, Includes: Ref. 49

1шт.

49

B51442

FILTER

DISC - drain

1шт.

Part of Repair Kit A24905

1шт.

50

A24897

JET

ADJUSTMENT ASSY. - main jet

1шт.

51

B51614

WASHER

- adjustment

1шт.

Part of Repair Kit A24905

1шт.

52

A24899

JET

- main

1шт.

53

B51624

WASHER

- main jet

1шт.

Part of Repair Kit A24905

1шт.

54

B51541

PLUG

- drain

1шт.

55

A27776

GASKET

-, Serial Range: carburetor-manifold

1шт.

Part of Repair Kit A24905

1шт.

56

A24905

KIT

REPAIR KIT - Incl Refs. 14, 16, 23, 24, 26, 28, 31, 36, 49, 51, 53, 55 and 57

1шт.

57

A24904

KIT

GASKET KIT - Incl. Refs. 23, 28, 31, 36, 51 & 53

1шт.

Part of Repair Kit A24905

1шт.
