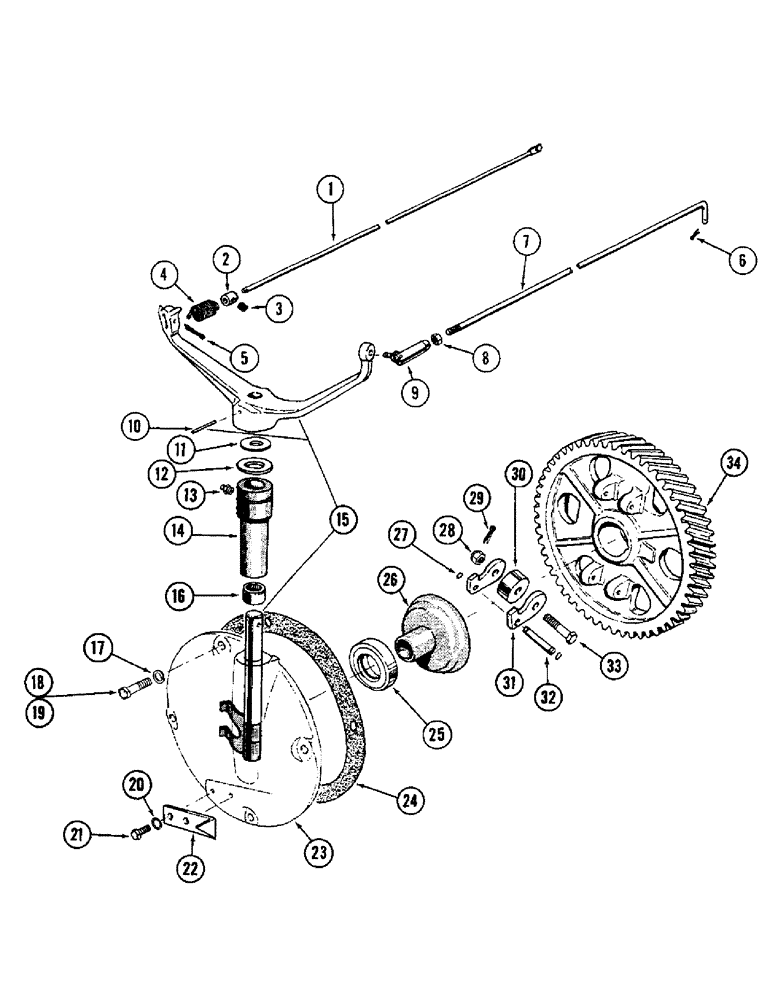

Запчасти Case W10B (044) - GOVERNOR, (377) SPARK IGNITION ENGINE (03) - FUEL SYSTEM
№
Артикул
Название
Примечание
Количество
1
A24553
ROD - throttle, front
1шт.
2
A20846
COLLAR
- throttle rod stop
1шт.
3
84-44
SET SCREW,Hex Soc, 1/4"-28 x 1/4"
SCREW - set, 1/4" x 5/8 " sq. hd.
1шт.
4
A20868
SPRING
- governor
1шт.
5
132-46
COTTER PIN,1/8" x 3/4"
Pin, Split (Cotter), 1/8" x 3/4"
1шт.
6
132-5
COTTER PIN,1/16" x 1/2"
Pin, Split (Cotter), 1/16" x 1/2"
1шт.
7
A21306
ROD - governor, Serial Range: lever-carburetor
1шт.
9
A10326
BALL JOINT
- governor arm to carb. rod
1шт.
10
138-101
LOCK PIN,3/16" x 1 5/8", Slotted
PIN, LOCK, 3/16" x 1 5/8", Slotted
1шт.
11
A7293
WASHER
- governor lever bearing
1шт.
12
A7292
SEAL
- lever bearing
1шт.
13
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, 1/8" P.T. str.
1шт.
14
A20835
SLEEVE - governor lever shaft bearing
1шт.
15
A20838
SHAFT
- w/finger and lever
1шт.
16
A7290
NEEDLE BEARING,Needle, 14.29mm ID x 19.05mm OD x 12.7mm W
BEARING - lever shaft
2шт.
17
92-6
LOCK WASHER,3/8"
4шт.
18
13-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd
1шт.
19
13-618
BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5
3шт.
20
193-44
LOCK WASHER,Ext-Int Tooth, 1/4"
WASHER - 1/4" Shakeproof
2шт.
21
13-48
BOLT,Hex, 1/4" - 20 x 1/2", Gr 5
2шт.
22
A28218
POINTER - timing
1шт.
23
A20833
CAP - timing gear cover, w/thrust button
1шт.
24
A27867
GASKET
- timing gear cap
1шт.
25
A7285
THRUST BEARING,1.0675" ID x 40574" OD x 5"
BEARING - governor thrust
1шт.
26
A7284
SLEEVE - governor
1шт.
27
A7111
SNAP RING,#25, Ext
Ring, Snap, , governor weight pin #25, Ext
4шт.
28
25-235
SLOTTED NUT
NUT - 5/16" N.F. castle
2шт.
29
132-5
COTTER PIN,1/16" x 1/2"
Pin, Split (Cotter), 1/16" x 1/2"
2шт.
30
A7227
WEIGHT - governor
1шт.
31
A33471
KIT
FINGER - (Set of 4) governor weight
1шт.
32
A7282
PIN,6.31mm OD x 47.63mm L
- governor weight
2шт.
33
A17504
BOLT
- governor weight
2шт.
34
A26328
GEAR
- camshaft
1шт.
Выбрано товаров: 34
