Запчасти Case W10B (039C) - DRY TYPE AIR CLEANER, GAS ENGINE (02) - ENGINE

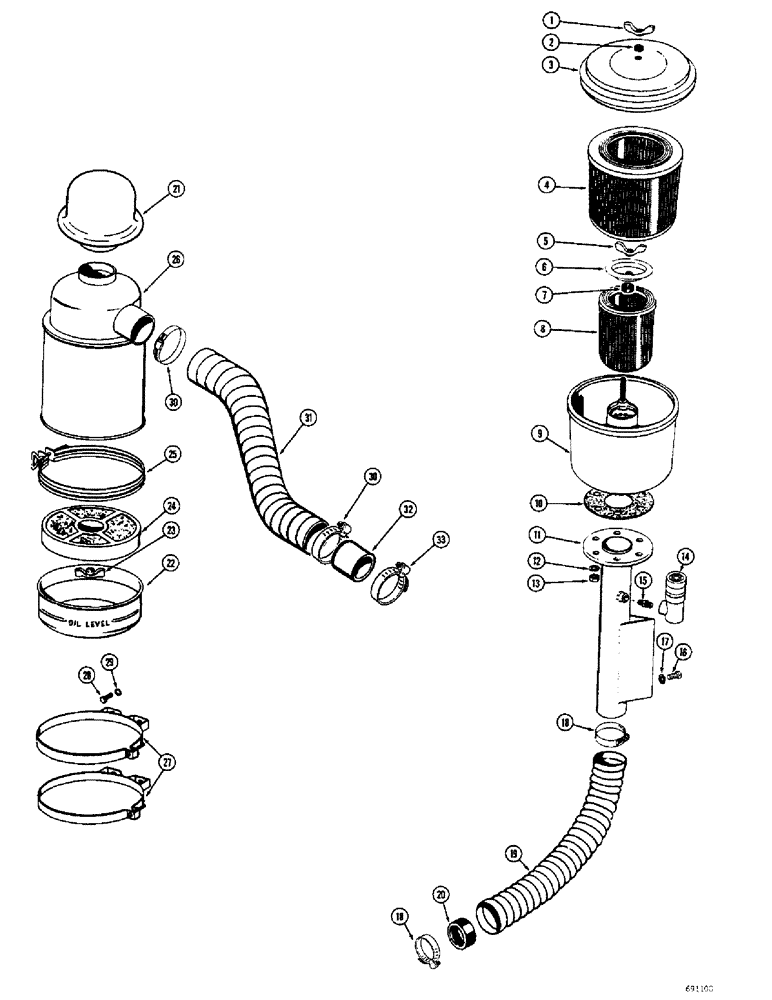

Схема запчастей Case W10B - (039C) - DRY TYPE AIR CLEANER, GAS ENGINE (02) - ENGINE

Артикул

Название

Примечание

Количество

A17650

FILTER

AIR CLEANER - dry type, Includes: Ref. 1 - 10

1шт.

1

A17745

NUT

NUT - wing, cover retainer

1шт.

2

A17744

GROMMET

- cover sealing

1шт.

3

A17743

X

COVER - air cleaner body

1шт.

4

A17741

AIR CLEANER

ELEMENT - filter, outer

1шт.

5

A17746

NUT

- wing, element retainer

1шт.

6

A17747

PLATE ASSY.

COVER - innerfilter element

1шт.

7

A17748

GASKET

- filter element

1шт.

8

A17749

GASKET

ELEMENT - filter, inner

1шт.

9

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

10

A17749

GASKET

- air cleaner, Serial Range: body-bracket

1шт.

11

A19088

TUBE AND BRACKET - mounting, air cleaner

1шт.

12

92-5

LOCK WASHER,5/16"

6шт.

13

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

6шт.

14

A17652

ELECTRICAL GAUGE

GAUGE - warning, air cleaner

1шт.

15

D36264

FITTING

ADAPTER - filtered, Serial Range: gauge-bracket

1шт.

16

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

17

92-6

LOCK WASHER,3/8"

4шт.

18

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

- hose to bracket and carburetor #36, 1.81/2.75 Type F Worm

2шт.

19

A19083

HOSE

- mounting, Serial Range: bracket-carburetor

1шт.

20

A19082

SLEEVE -, Serial Range: carburetor-hose

1шт.

21

A61277

CAP

PRE-SCREENER - air cleaner (Late production), oil bath, gas engine

1шт.

21

A10872

CAP

PRE-SCREENER - air cleaner (Early production), oil bath, gas engine

1шт.

A21415

AIR CLEANER - oil bath, gas engine, Includes: Ref. 22 - 26

1шт.

22

A22344

CUP - oil, bath air cleaner, gas engine

1шт.

23

129-404

WING NUT,1/4"-20

NUT - wing, element retaining (1/4" - 20 NC), oil bath air cleaner, gas engine

1шт.

24

A22345

ELEMENT - filter, oil bath air cleaner gas, engine

1шт.

25

A22336

BAND - retaining, oil cup, oil bath air cleaner, gas engine

1шт.

26

NSS

NOT SOLD SEPARAT

BODY - air cleaner, oil bath air cleaner, gas engine

1шт.

27

A10867

CLAMP - mounting, air cleaner, oil bath air cleaner, gas engine

2шт.

28

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

Oil bath air cleaner, gas engine Hex, 3/8"-16 x 5/8", G5, Full Thd

4шт.

29

92-6

LOCK WASHER,3/8"

oil bath air cleaner, gas engine 3/8"

4шт.

30

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - air cleaner to hose, oil bath, gas engine

2шт.

31

L10236

HOSE

- air cleaner to carburetor (3" I.D. x 32" long) used with A32617 carburetor, oil bath, gas engine

1шт.

31

A19990

HOSE - air cleaner to carburetor (3" I.D. x 52" long) used with A24552 carburetor, oil bath, gas engine

1шт.

32

A19992

SLEEVE - hose to carburetor, oil bath air cleaner, gas engine

1шт.

33

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

- sleeve to carburetor, oil bath air cleaner, gas engine #28, 1.31/2.25 Type F Worm

1шт.

Выбрано товаров: 37
