Запчасти Case W10B (039A) - CRANKCASE VENT ATTACHMENT, (377) SPARK IGNITION ENGINE (02) - ENGINE

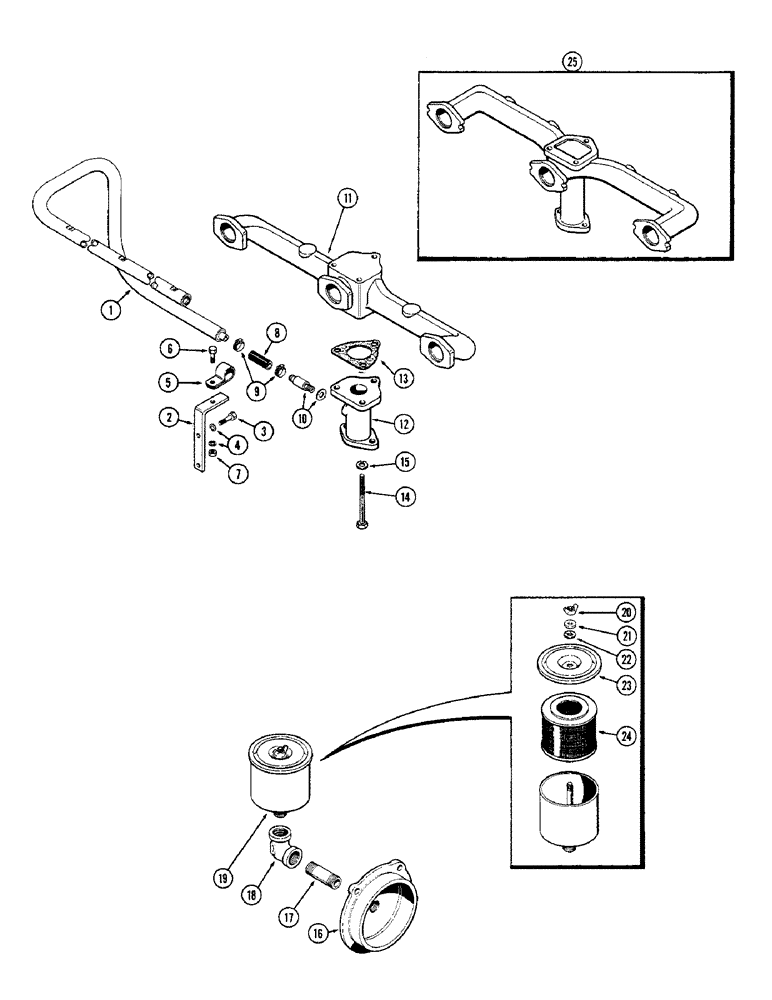

Схема запчастей Case W10B - (039A) - CRANKCASE VENT ATTACHMENT, (377) SPARK IGNITION ENGINE (02) - ENGINE

Артикул

Название

Примечание

Количество

A34142

ATTACHMENT - crankcase venting (Mach. item), Includes: Ref. 1 - 3

1шт.

1

A34149

TUBE - breather

1шт.

2

A34152

BRACKET - support, breather tube

1шт.

3

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

4

92-6

LOCK WASHER,3/8"

Includes: Ref. 5 - 24 3/8"

3шт.

5

A21324

CLIP - breather tube

1шт.

6

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

7

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.)

1шт.

8

A34148

HOSE -, Serial Range: breather-manifold

1шт.

9

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose (9/16" to 1-1/16")

2шт.

10

A34147

VALVE ASSY. - vent

1шт.

11

A34673

MANIFOLD - intake (2 piece)

1шт.

12

A34888

MUFFLER

STACK - intake manifold (2 piece)

1шт.

13

A34675

GASKET

-, Serial Range: stack-manifold

1шт.

14

13-676

CAPSCREW,Hex, 3/8" - 16 x 4 3/4", Gr 5

BOLT, Hex, 3/8"-16 x 4 3/4", G5

3шт.

15

92-6

LOCK WASHER,3/8"

3шт.

16

A34144

COVER - magneto opening

1шт.

17

221-1190

PIPE,Nipple, 1/2" NPT x 2"

NIPPLE - (1/2" N. P. T. x 2")

1шт.

18

221-1377

ELBOW,90 Degree, 1/2" NPT

- (90 degrees x 1/2" N.P.T)

1шт.

19

A34145

FILTER ASSY. - crankcase air, Includes: Ref. 20 - 23

1шт.

20

129-404

WING NUT,1/4"-20

NUT - wing (1/4" N.C.)

1шт.

21

95-4

WASHER,1/4"

- (5/16 x 3/4 x 1/16")

1шт.

22

A40768

GASKET - center bolt

1шт.

23

A40769

COVER - air filter

1шт.

24

A40767

SPARE PART

CARTRIDGE - element, filter

1шт.

25

A34146

X

MANIFOLD - intake (1 piece) (Order 1-A34673, 1-A34888 & 1-A34675)

1шт.

Выбрано товаров: 26
