Запчасти Case W10B (037A) - OIL FILTER, (377) SPARK IGNITION ENGINE, SCREW-ON TYPE, FIRST USED ENGINE SERIAL NUMBER 2207574 (02) - ENGINE

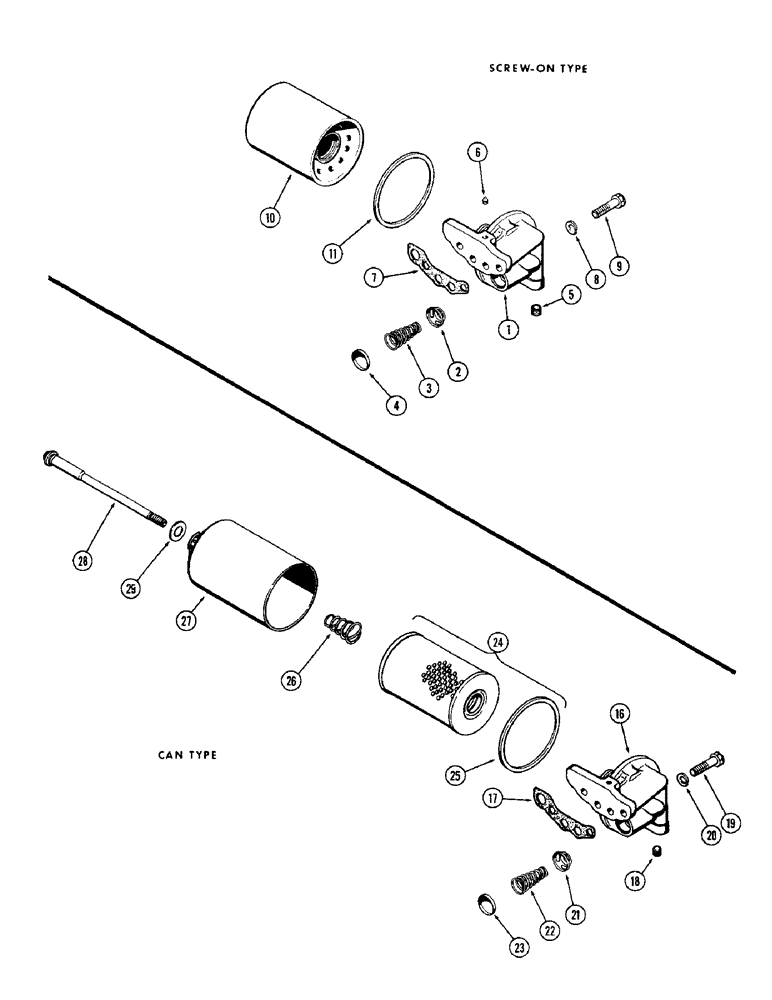

Схема запчастей Case W10B - (037A) - OIL FILTER, (377) SPARK IGNITION ENGINE, SCREW-ON TYPE, FIRST USED ENGINE SERIAL NUMBER 2207574 (02) - ENGINE

Артикул

Название

Примечание

Количество

A57849

BASE

ASSY. - filter, engine oil, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

BASE - filter (Order A57849)

1шт.

2

A21090

VALVE

- relief

1шт.

3

A21091

VALVE SPRING

SPRING - relief valve

1шт.

4

41-1020

PLUG,Cup, 1 1/4"

- relief valve (1-1/4" cup type)

1шт.

5

221-1843

PLUG

- pipe, 3/8" P.T. socket hd.

1шт.

6

221-1041

PLUG

- pipe, 1/8" P.T. slotted

1шт.

7

A21084

GASKET

-, Serial Range: base-block

1шт.

8

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

9

92-8

LOCK WASHER,1/2"

2шт.

A41725

FILTER, ENGINE OIL

FILTER KIT - engine oil, Includes: Ref. 10 and 11

1шт.

10

NSS

NOT SOLD SEPARAT

FILTER - oil (Order A41725)

1шт.

11

A57858

GASKET

- filter to base (4-3/4 x 5-3/16 x 13/64")

1шт.

16

A23474

BASE

- oil filter, can type used prior to engine, Start Serial: 2207574

1шт.

17

A21085

GASKET - base to block, can type used prior to engine, Start Serial: 2207574

1шт.

18

221-843

PLUG,Hex Soc, 3/8"-18

- (3/8" P.T. socket hd.), can type used prior to engine, Start Serial: 2207574

1шт.

19

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Can type used prior to engine Hex, 1/2"-13 x 1 1/2", G5, Full Thd, Start Serial: 2207574

2шт.

20

92-8

LOCK WASHER,1/2"

can type used prior to engine 1/2", Start Serial: 2207574

2шт.

21

A21090

VALVE

- relief, can type used prior to engine, Start Serial: 2207574

1шт.

22

A21091

VALVE SPRING

SPRING - relief valve, can type used prior to engine, Start Serial: 2207574

1шт.

23

41-1620

PLUG,Cup, 1 1/4", Stainless

- relief valve, can type used prior to engine, Start Serial: 2207574

1шт.

24

A20822

ENGINE OIL FILTER

ELEMENT ASSY. - filter, w/gasket, can type used prior to engine, Includes: Ref. 25, Start Serial: 2207574

1шт.

25

A20429

GASKET

- element to base (4-13/16 x 5-13/64 x 3/32"), can type used prior to engine, Start Serial: 2207574

1шт.

26

A20427

VALVE SPRING

SPRING - element, can type used prior to engine, Start Serial: 2207574

1шт.

27

A20824

SHELL

- filter, can type used prior to engine, Start Serial: 2207574

1шт.

28

A20825

PIPE

- stand, can type used prior to engine, Start Serial: 2207574

1шт.

29

A20426

GASKET

- stand pipe, can type used prior to engine, Start Serial: 2207574

1шт.

Выбрано товаров: 27
