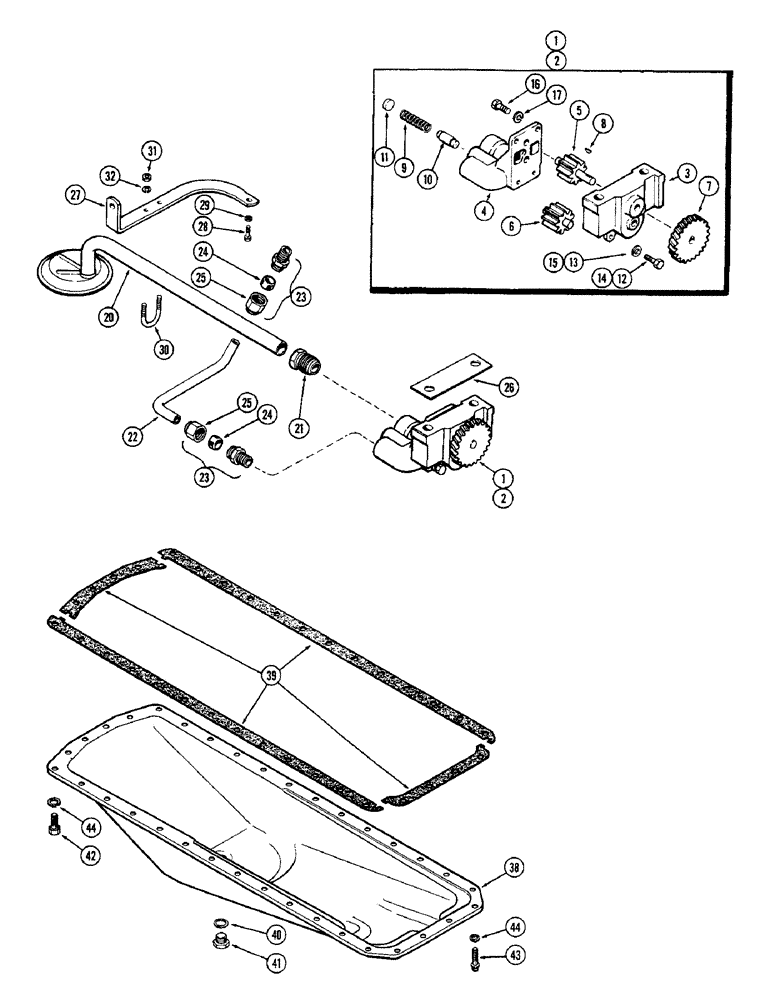

Запчасти Case W10B (035A) - OIL PUMP, (377) SPARK IGNITION ENGINE, FIRST USED ENGINE SERIAL NUMBER 2173890 (02) - ENGINE

1

A57486

PUMP

ASSY. - oil (1st used eng. SN 2202205), Includes: Ref. 3 - 17

1шт.

2

A34940

PUMP ASSY. - oil (Order A57486) (Used prior to eng. SN 2202205), Includes: Ref. 3 - 17

1шт.

3

A57487

BODY

- pump (Drilled for 5/16" bolt) (Used w/A57486 pump (See ref 1)

1шт.

3

A34941

X

BODY - pump (Drilled for 3/4" shoulder bolt) (Used w/A34940 pump) (See ref. 2) (Order A57487, A57488, 4-13-518 & 4-92-5)

1шт.

4

A57488

COVER

- (w/29/32" tapped bolt hole depth) (Used w/A57486 pump) (See ref. 1)

1шт.

4

A34991

COVER

- (w/5/8" tapped bolt hole depth) (Used w/A34940 pump) (See ref. 2) (Order A57487, A57488, 4-13-518 & 4-92-5)

1шт.

5

A34942

GEAR ASSY. - drive (Incl. shaft)

1шт.

6

A34945

GEAR ASSY. - driven (Incl. shaft)

1шт.

7

A34947

GEAR - pump drive (21 helical teeth)

1шт.

8

126-9

WOODRUFF KEY,#3, 1/8" x 1/2"

Drive gear #3, 1/8" x 1/2"

1шт.

9

A34993

RING

SPRING - relief valve

1шт.

10

A34992

PISTON

VALVE - relief

1шт.

11

A34951

X

PLUG - relief valve (45/64" cup type)

1шт.

12

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

(Use with A57487 body) Hex, 5/16"-18 x 1 1/8", G5

4шт.

13

92-5

LOCK WASHER,5/16"

4шт.

14

A34950

STEP BOLT

BOLT - shoulder (5/16" N.C. x 1") (Use with A34941 body)

2шт.

15

92-6

LOCK WASHER,3/8"

(for A34950 bolt) 3/8"

2шт.

16

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

(Use w/A34991 cover) Hex, 5/16"-18 x 7/8", G5, Full Thd

1шт.

16

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- 5/16 x 1/4" N.C. hex. (Use w/A34991 cover)

1шт.

17

92-5

LOCK WASHER,5/16"

2шт.

20

A34976

SCREEN

TUBE - oil suction (Includes screen) (replaces A24953)

1шт.

21

222-510

TUBE NUT,1 1/4"-18

NUT - tube to pump

1шт.

22

A57388

TUBE

-, Serial Range: pump-filter

1шт.

23

222-31

HYD CONNECTOR,1"-18 x 1/2" NPTF w/Nut

CONNECTOR - filter tube, 5/8" tube x 1/2", Includes: Ref. 24 and 25

2шт.

24

222-106

SLEEVE,5/8" Tube

- 5/8" Tube

1шт.

25

222-116

TUBE NUT,1"-18

NUT - 5/8" tube

1шт.

26

A57454

SHIM,.005" Thk

Oil pump to brg. cap .005" Thk

1шт.

26

A57455

SHIM,.010" Thk

Oil pump to brg. cap .010" Thk

1шт.

26

A57456

SHIM,.025" Thk

Oil pump to brg. cap .025" Thk

1шт.

27

A34980

BRACKET

SUPPORT - suction tube

1шт.

28

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

29

92-6

LOCK WASHER,3/8"

2шт.

30

A34979

BOLT

"U" BOLT - tube clamp

1шт.

31

25-104

NUT,1/4"-20, G5

2шт.

32

193-28

LOCK WASHER,Int Tooth, 1/4"

WASHER - lock, 1/4"

2шт.

38

A34982

CASE

PAN - oil

1шт.

39

A24719

GASKET SET - oil pan

1шт.

40

A27927

OIL PAN GASKET SET

- drain plug, oil pan

1шт.

41

A14280

PLUG

- drain, oil pan

1шт.

42

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Oil pan Hex, 3/8"-16 x 7/8", G5, Full Thd

30шт.

43

A34929

BOLT (SPREADER)

BOLT - pan to cover, (3/8 x 1-1/8" N.C., 12 pt. hd.), oil

2шт.

44

92-6

LOCK WASHER,3/8"

oil pan 3/8"

32шт.
