Запчасти Case W10B (032) - CAMSHAFT, (377) SPARK IGNITION ENGINE (02) - ENGINE

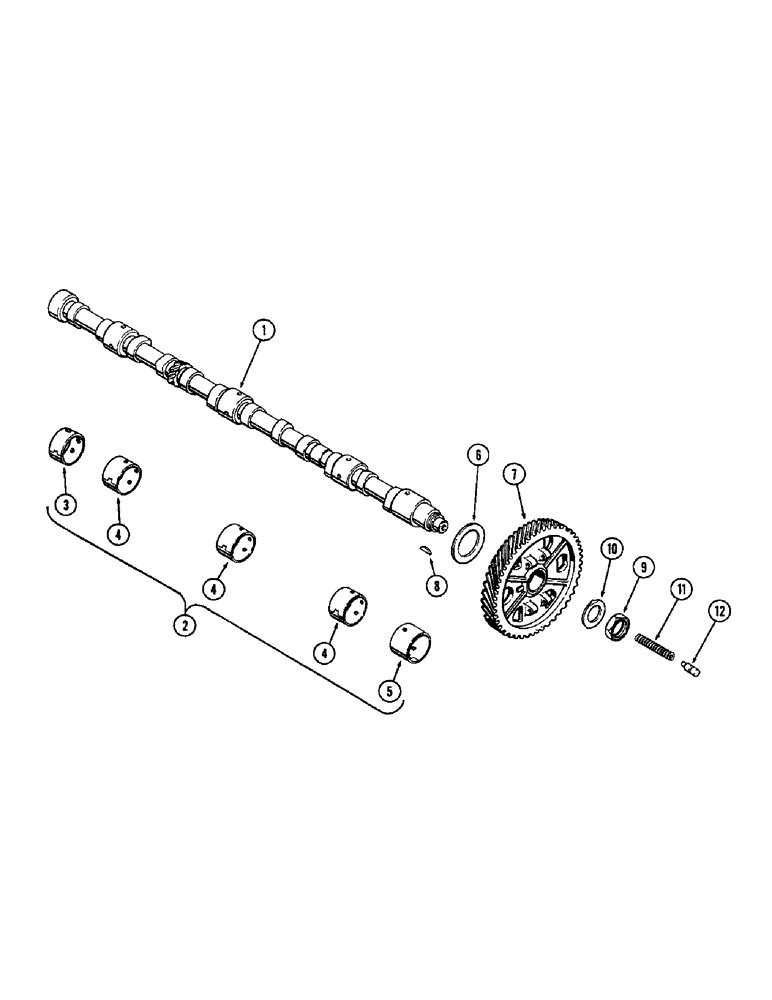

Схема запчастей Case W10B - (032) - CAMSHAFT, (377) SPARK IGNITION ENGINE (02) - ENGINE

Артикул

Название

Примечание

Количество

1

A34173

CAMSHAFT

- (w/steel gear insert) (Used w/A38878 oil pump gear) (See Figure 036)

1шт.

1

A23492

CAMSHAFT

- (w/cast gear insert) (Used w/A33443 oil pump gear) (See Figure 036) (Order 1-A33840 & 1-A34173)

1шт.

1

A34969

CAMSHAFT - (Used w/front mounted oil pump)

1шт.

2

A23544

BUSHING

KIT - camshaft (Set of 5), Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

BUSHING - camshaft, rear (15/32" wide)

1шт.

4

NSS

NOT SOLD SEPARAT

BUSHING - camshaft, 2nd, 3rd, and 4th (1-27/64" wide)

3шт.

5

NSS

NOT SOLD SEPARAT

BUSHING - crankshaft front (1-41/64" wide)

1шт.

6

A21017

WASHER

- thrust, camshaft

1шт.

7

A26328

GEAR

- camshaft

1шт.

8

126-28

WOODRUFF KEY,#18, 1/4" x 1 1/8"

Camshaft gear #18, 1/4" x 1 1/8"

1шт.

9

A26444

LOCK WASHER

LOCKWASHER - camshaft nut

1шт.

10

A26445

NUT

- camshaft

1шт.

11

CASA27853

SPRING

- thrust plunger

1шт.

12

A27852

PLUNGER

- thrust, camshaft

1шт.

Выбрано товаров: 14
