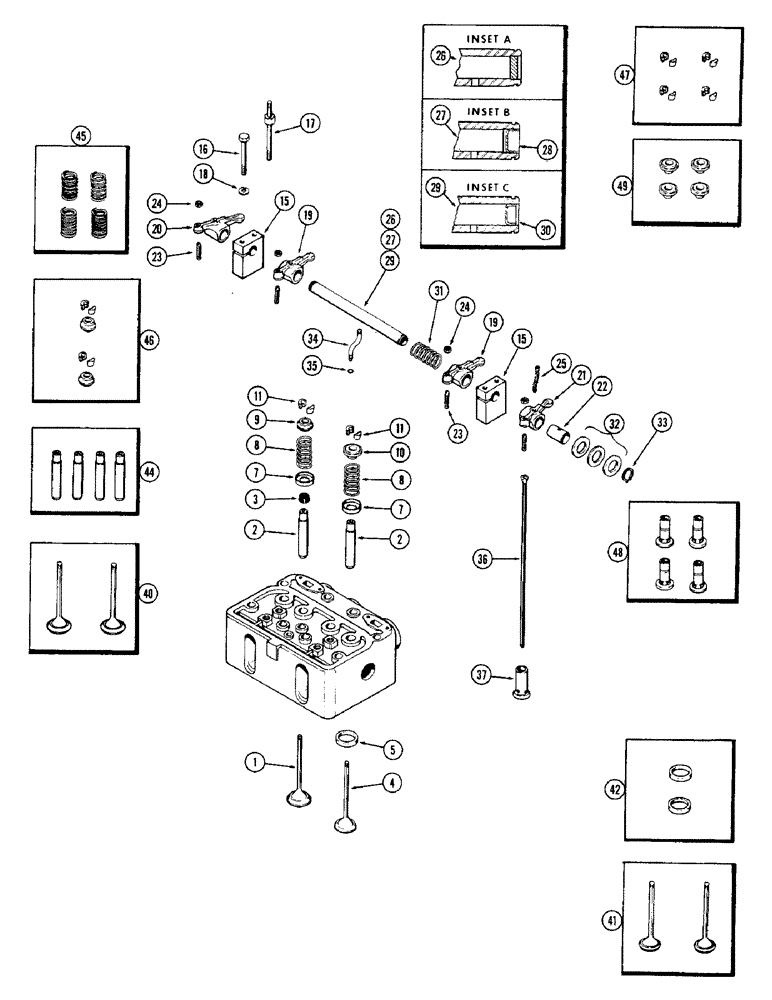

Запчасти Case W10B (029C) - VALVES AND VALVE MECHANISM, (377) SPARK IGNITION ENGINE, FORGED ROCKER ARMS (02) - ENGINE

1

NSS

NOT SOLD SEPARAT

VALVE - intake (Order ref. 40)

6шт.

2

NSS

NOT SOLD SEPARAT

GUIDE - valve stem (Order ref. 44)

12шт.

3

A10726

SEAL

SHIELD - oil, intake valve stem

6шт.

4

NSS

NOT SOLD SEPARAT

VALVE - exhaust (Order ref. 41)

6шт.

5

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve seat (Order ref. 42)

6шт.

7

A27866

SEAT

- valve spring

12шт.

8

NSS

NOT SOLD SEPARAT

SPRING - valve (Order ref. 45)

12шт.

9

NSS

NOT SOLD SEPARAT

RETAINER - intake valve spring (Order ref. 46)

6шт.

10

NSS

NOT SOLD SEPARAT

ROTO-CAP - exhaust valve (Order ref. 49)

6шт.

11

NSS

NOT SOLD SEPARAT

LOCK - valve spring (Order ref. 47)

24шт.

15

A27881

BRACKET

- rocker arm shaft

6шт.

16

13-764

BOLT,Hex, 7/16" - 14 x 4", Gr 5

6шт.

17

A27882

STUD - bracket & cover (w/N.C. top thread and 4-1/8" bottom length)

6шт.

18

92-7

LOCK WASHER,7/16"

6шт.

19

A28659

X

ARM ASSY. - rocker, intake valve (Incl. ref. 22) (Order A22322)

6шт.

20

A28660

ARM

ASSY. - rocker, #1, 3 & 5 exhaust valve (Incl. ref. 22) (Order A22324)

3шт.

21

A28661

X

ARM ASSY. - rocker, #2, 4 & 6 exhaust valve (Incl. ref. 22) (Order A22326)

3шт.

22

A27876

BUSHING

- rocker arm

1шт.

23

A21105

ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"

SCREW - adjusting, rocker arm

12шт.

24

25-156

JAM NUT,Jam, 3/8"-24, G5

- adjusting, 5/16" N.F. jam

12шт.

25

A27938

WICK

- oil, rocker arm

12шт.

26

A57532

SHAFT

- rocker (w/solid plug. see inset A)

3шт.

27

A21100

SHAFT

- reamed (See inset B) (Can use A57532), Includes: Ref. 28

3шт.

28

A26667

PLUG - cup, rocker shaft (9/16" O.D.)

2шт.

29

A23671

X

SHAFT - not reamed (See inset C) (Order A57532), Includes: Ref. 30

3шт.

30

A22318

PLUG - cup, rocker shaft (9/16" O.D.)

2шт.

31

A27877

SPRING

- rocker shaft

3шт.

32

A27878

WASHER

- rocker shaft ends (29/32 x 1-5/16 x 9/32")

21шт.

33

B18206

SNAP RING,#87, Ext

Ring, Snap, , rocker shaft #87, Ext

6шт.

34

A27879

TUBE

- oil, rocker shaft

3шт.

35

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - oil tube (3/16 x 5/16 x 1/16")

3шт.

36

A21060

ROD

- push

12шт.

37

NSS

NOT SOLD SEPARAT

LIFTER - push rod (Order ref. 48)

12шт.

40

A33455

VALVE

S - intake (Set of 2)

3шт.

41

A33456

VALVE, ENG EXHAUST,

VALVES - exhaust (Set of 2)

3шт.

42

A33453

KIT

INSERTS - exhaust valve seat (Set of 2)

3шт.

44

A21673

GUIDE

S - valve stem (Set of 2)

6шт.

45

A21694

SPRING

S - valve (Set of 4)

3шт.

46

A21657

LOCK

RETAINER - intake valve stem (Set of 2 w/locks)

3шт.

47

A40352

LOCK

S - valve spring (Set of 8)

3шт.

48

A21653

KIT

LIFTERS - push rod (Set of 4)

3шт.

49

A57433

COIL

ROTO-CAPS - exhaust valve (Set of 2)

3шт.
