Запчасти Case W10B (026) - DECOMPRESSOR, (401) DIESEL ENGINE, USED PRIOR TO ENGINE SERIAL NUMBER 2095635 (02) - ENGINE

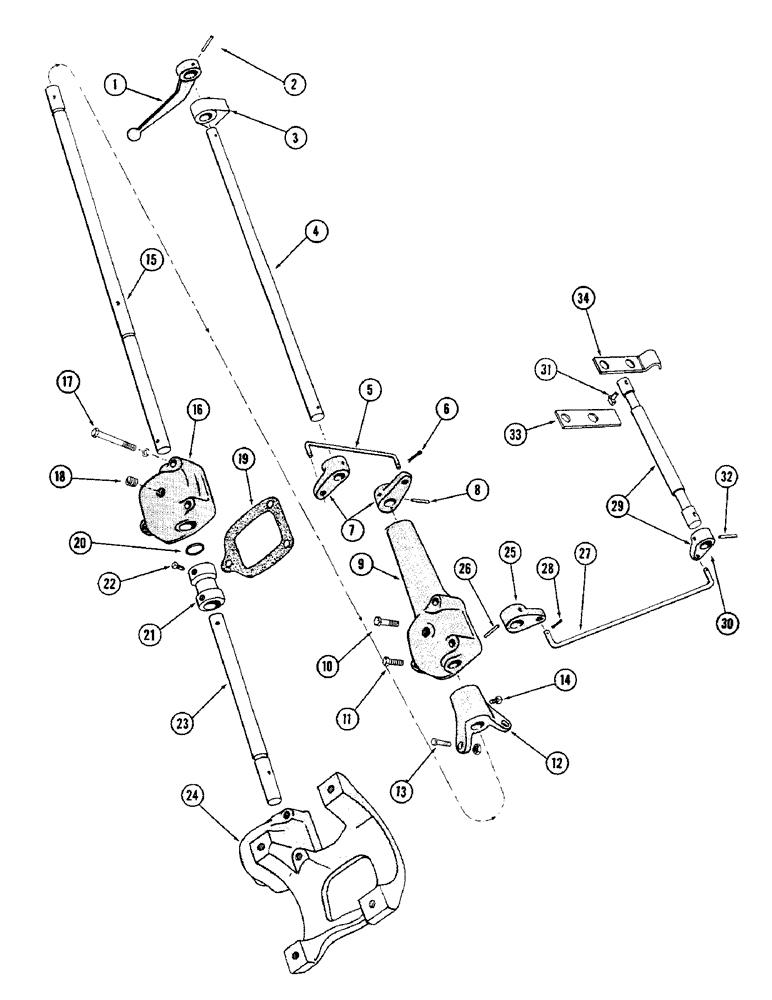

Схема запчастей Case W10B - (026) - DECOMPRESSOR, (401) DIESEL ENGINE, USED PRIOR TO ENGINE SERIAL NUMBER 2095635 (02) - ENGINE

Артикул

Название

Примечание

Количество

1

A26310

LEVER - hand control

1шт.

2

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

3

A17482

INTERIOR LIGHT

BEARING - hand lever shaft

1шт.

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

1шт.

92-5

LOCK WASHER,5/16"

1шт.

4

A19115

SHAFT - hand lever

1шт.

5

A19116

LINK - control

1шт.

6

132-6

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter) 1/16" x 5/8"

2шт.

7

A7541

LEVER - control link

2шт.

8

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

2шт.

9

A26330

HOUSING - rear shaft

1шт.

10

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- 5/16 x 1-3/4" N.C. hex. hd.

2шт.

11

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

92-5

LOCK WASHER,5/16"

3шт.

12

A26331

COUPLING

1шт.

13

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- 3/4 x 1" N.C. hex. hd.

2шт.

14

A27892

SET SCREW,1/4" - 20 x 7/8"

- set, coupling

1шт.

15

A17500

SHAFT - intermediate

1шт.

16

A26296

HOUSING

1шт.

17

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

92-5

LOCK WASHER,5/16"

3шт.

18

221-41

PLUG

- pipe, 1/8" slotted hd.

2шт.

19

A22939

GASKET

- control housing

1шт.

20

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

"O" RING - shaft

3шт.

21

A27893

COUPLING - front shaft

1шт.

22

A27892

SET SCREW,1/4" - 20 x 7/8"

- set

2шт.

23

A27889

SHAFT - control, front

1шт.

24

A22183

HOUSING - decompressor control

1шт.

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

25

A26326

LEVER - control link

1шт.

26

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

27

A27894

LINK

1шт.

28

132-6

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter) 1/16" x 5/8"

2шт.

29

A23096

SHAFT ASSY. - decompressor, Includes: Ref. 30 and 31

1шт.

30

A26326

LEVER - control link

1шт.

31

A23095

AXLE PIN

PIN

2шт.

32

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

33

A27887

BRACKET - bottom

1шт.

34

A27886

BRACKET

- top

1шт.

Выбрано товаров: 40
