Запчасти Case W10B (017A) - FUEL INJECTION FILTER SYS., (401) DIESEL ENGINE, 2 STAGE FILTERING SYS., FIRST USED ENG. S/N 2205483 (02) - ENGINE

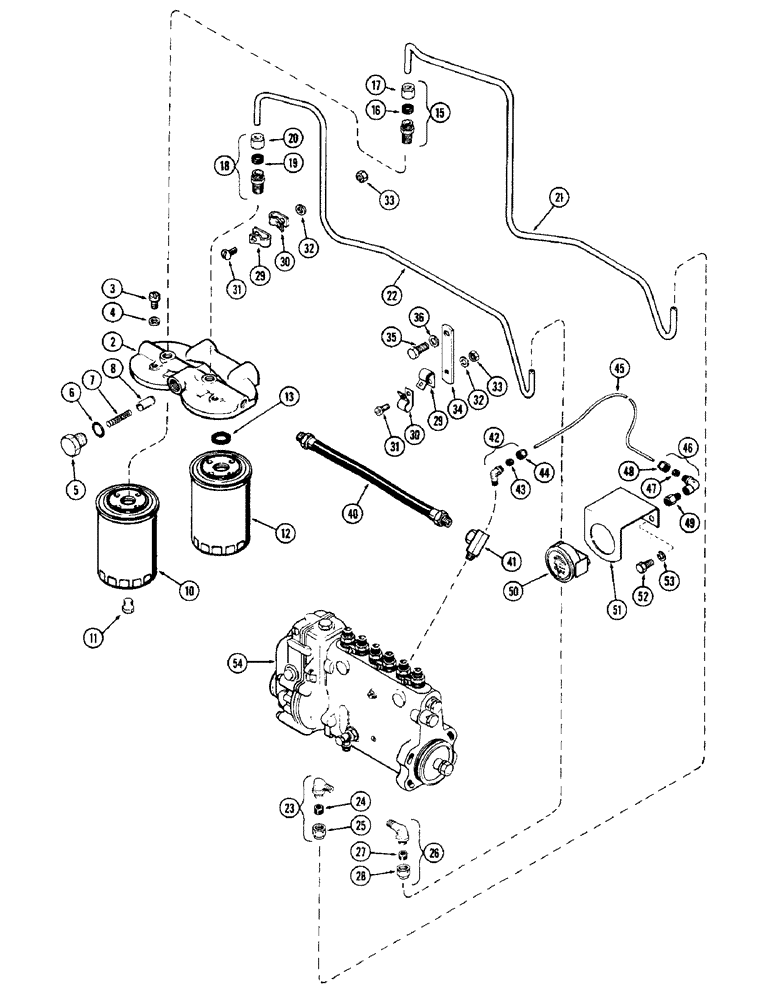

Схема запчастей Case W10B - (017A) - FUEL INJECTION FILTER SYS., (401) DIESEL ENGINE, 2 STAGE FILTERING SYS., FIRST USED ENG. S/N 2205483 (02) - ENGINE

Артикул

Название

Примечание

Количество

A60032

HEAD

ASSY. - filter mounting, Includes: Ref. 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

HEAD - filter (Order A60032)

1шт.

3

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- bleed (#10-32 x 5/16" fill. hd.)

2шт.

4

A20662

GASKET

WASHER - fiber, bleed screw (3/16 x 3/8 x 3/64")

2шт.

5

A24916

PLUG

- relief valve

1шт.

6

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - valve plug (1/2 x 11/16 x 3/32")

1шт.

7

A24918

SPRING

- relief valve

1шт.

8

A24917

PLUNGER

- relief valve

1шт.

A41745

KIT

FILTER KIT - replacement, 1st & 2nd stage, Includes: Ref. 10 - 13

1шт.

10

A58712

KIT

FILTER - 1st stage (13/16" - 16 att. thread), Includes: Ref. 11

1шт.

11

221-1661

PLUG

- drain, 1/8" P.T. hex. hd.

1шт.

12

A58713

FILTER

- 2nd stage (15/16" - 16 att. thread), Includes: Ref. 13

1шт.

13

A42315

GASKET

-, Serial Range: filter-head

1шт.

15

222-27

HYD CONNECTOR,5/8"-24 x 1/4" NPTF W/Nut

CONNECTOR ASSY. - 1st stage filter, 3/8" tube x 1/4", Includes: Ref. 16 and 17

1шт.

16

222-104

SLEEVE,3/8" Tube

- 3/8" Tube

1шт.

17

222-114

NUT,5/8"-24

NUT - 3/8" tube

1шт.

18

222-25

HYD CONNECTOR,9/16"-24 x 1/4" NPTF w/Nut

CONNECTOR ASSY. - 2nd stage filter, 5/16" tube x 1/4", Includes: Ref. 19 and 20

1шт.

19

222-103

SLEEVE,5/16" Tube

1шт.

20

222-113

TUBE NUT,9/16"-24

NUT - 5/16" tube

1шт.

21

A57866

TUBE

- 1st stage filter to pump (3/8" O.D.)

1шт.

22

A57869

TUBE - pump to 2nd stage filter (5/16" O.D.)

1шт.

23

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

ASSY. - 3/8" tube to pump, 3/8" tube x 1/4", Includes: Ref. 24 and 25

1шт.

24

222-104

SLEEVE,3/8" Tube

- 3/8" Tube

1шт.

25

222-114

NUT,5/8"-24

NUT - 3/8" tube

1шт.

26

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSY. - 5/16" tube to pump, 5/16" tube x 1/4", Includes: Ref. 27 and 28

1шт.

27

222-103

SLEEVE,5/16" Tube

1шт.

28

222-113

TUBE NUT,9/16"-24

NUT - 5/16" tube

1шт.

29

A20688

CLIP

- 3/8" tube

2шт.

30

A27814

X

CLIP - 5/16" tube

2шт.

31

75-410

SCREW,Rd, 1/4" - 20 x 5/8"

- tube clip, 1/4 x 5/8" N.C. rd. hd.

2шт.

32

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

33

25-140

NUT - 1/4" N.C. hex.

1шт.

34

A20537

SUPPORT - tube clip

1шт.

35

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

36

92-6

LOCK WASHER,3/8"

1шт.

40

A57865

HOSE

- filter to pump (15" lg.)

1шт.

41

A20539

FITTING

UNION -, Serial Range: hose-pump

1шт.

42

222-40

ELBOW,90 Degree, 3/8"-24 Fem x 1/8"-27 NPTF

ASSY. - pressure tube, 1/8" tube x 1/8", Includes: Ref. 43 and 44

1шт.

43

222-100

TUBE NUT,1/8" Tube

SLEEVE - 1/8" Tube

1шт.

44

222-110

TUBE NUT,3/8"-24

NUT - 1/8" tube

1шт.

45

A9364

TUBE

- pressure gauge (1/8" O.D.)

1шт.

46

222-53

ELBOW,3/8"-24 x 1/8 NPTF

ASSY. - pressure tube, 1/8" tube x 1/8", Includes: Ref. 47 and 48

1шт.

47

222-100

TUBE NUT,1/8" Tube

SLEEVE - 1/8" Tube

1шт.

48

222-110

TUBE NUT,3/8"-24

NUT - 1/8" tube

1шт.

49

A28061

FITTING

SNUBBER - elbow to gauge (1/8" P.T.)

1шт.

50

A8101

GAUGE

- fuel pressure

1шт.

51

A57077

BRACKET

- pressure gauge

1шт.

52

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

- 3/8 x 3/4" N.C. hex.

2шт.

53

92-6

LOCK WASHER,3/8"

2шт.

54

A24533

FUEL INJECTION PUMP

PUMP ASSY. - fuel injection (Repairs Figure 021A)

1шт.

Выбрано товаров: 50
