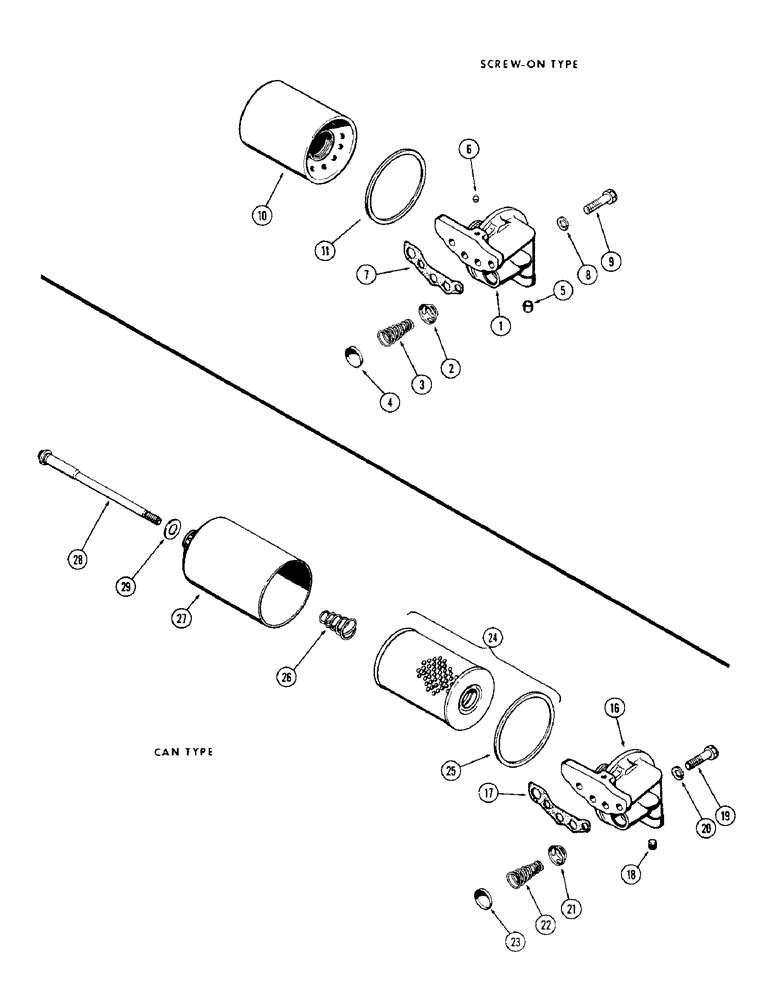

Запчасти Case W10B (013A) - OIL FILTER, (401) DIESEL ENGINE, SCREW-ON TYPE, FIRST USED ENGINE SERIAL NUMBER 2207574 (02) - ENGINE

A57849

BASE

ASSY. - filter, engine oil, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

BASE - filter (Order A57849)

1шт.

2

A21090

VALVE

- relief

1шт.

3

A21091

VALVE SPRING

SPRING - relief valve

1шт.

4

41-1020

PLUG,Cup, 1 1/4"

- relief valve (1-1/4" cup type)

1шт.

5

221-1843

PLUG

- pipe, 3/8" P.T. socket hd.

1шт.

6

221-1041

PLUG

- pipe, 1/8" P.T. slotted

1шт.

7

A21084

GASKET

-, Serial Range: base-block

1шт.

8

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

9

92-8

LOCK WASHER,1/2"

2шт.

A41725

FILTER, ENGINE OIL

FILTER KIT - engine oil, Includes: Ref. 10 and 11

1шт.

10

NSS

NOT SOLD SEPARAT

FILTER - oil (Order A41725)

1шт.

11

A57858

GASKET

- filter to base (4-3/4 x 5-3/16 x 13/64")

1шт.

16

A23474

BASE

- oil filter (Order 1-A57849 & 1-A47125), can type, used prior to engine, Start Serial: 2207574

1шт.

17

A21084

GASKET

- base to block, can type, used prior to engine, Start Serial: 2207574

1шт.

18

221-843

PLUG,Hex Soc, 3/8"-18

- pipe, 3/8" socket hd., can type, used prior to engine, Start Serial: 2207574

1шт.

19

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Can type, used prior to engine Hex, 1/2"-13 x 1 1/2", G5, Full Thd, Start Serial: 2207574

2шт.

20

92-8

LOCK WASHER,1/2"

can type, used prior to engine 1/2", Start Serial: 2207574

2шт.

21

A21090

VALVE

- relief, can type, used prior to engine, Start Serial: 2207574

1шт.

22

A21091

VALVE SPRING

SPRING - relief valve, can type, used prior to engine, Start Serial: 2207574

1шт.

23

41-1620

PLUG,Cup, 1 1/4", Stainless

- relief valve, can type, used prior to engine, Start Serial: 2207574

1шт.

24

A20822

ENGINE OIL FILTER

ELEMENT ASSY. - filter, can type, used prior to engine, Includes: Ref. 25, Start Serial: 2207574

1шт.

25

A20429

GASKET

- element to base, can type, used prior to engine, Start Serial: 2207574

1шт.

26

A20427

VALVE SPRING

SPRING - element, can type, used prior to engine, Start Serial: 2207574

1шт.

27

A20824

SHELL

can type, used prior to engine, Start Serial: 2207574

1шт.

28

A20825

PIPE

- stand, can type, used prior to engine, Start Serial: 2207574

1шт.

28

A20825

PIPE

- stand, can type, used prior to engine, Start Serial: 2207574

1шт.

29

A20426

GASKET

- pipe, can type, used prior to engine, Start Serial: 2207574

1шт.
