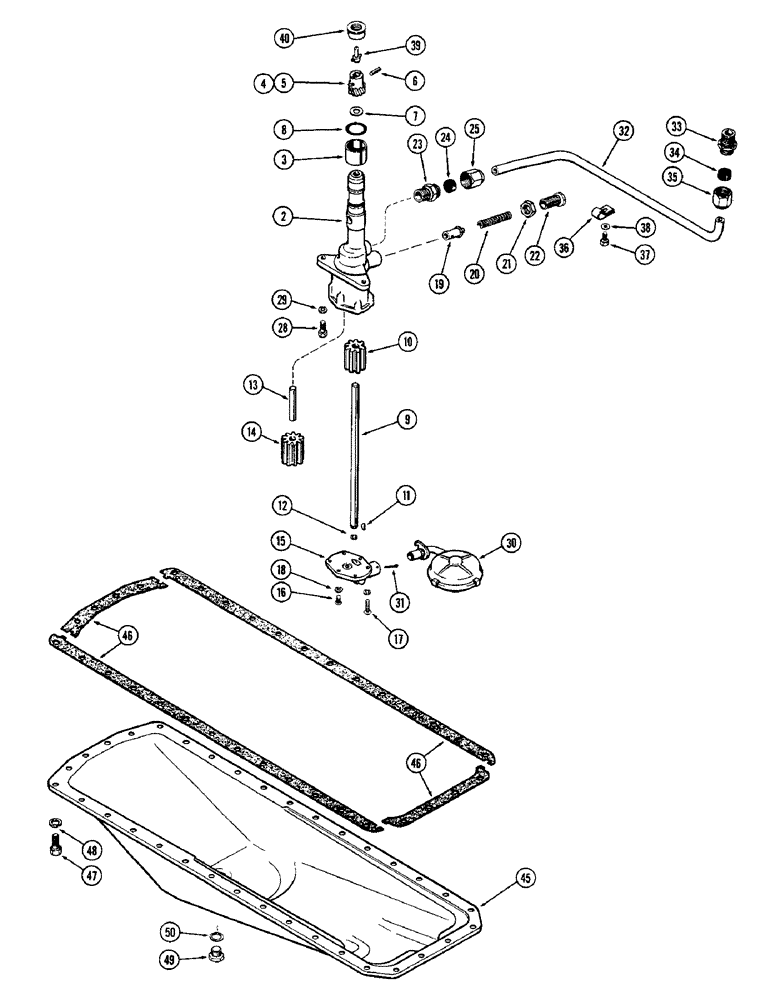

Запчасти Case W10B (012) - OIL PUMP, (401) DIESEL ENGINE, USED PRIOR TO ENGINE SERIAL NUMBER 2173890 (02) - ENGINE

A33878

PUMP

ASSY. - oil (Incl. Refs. 4 & 6 - 25) (Used with A33839 camshaft), Includes: Ref. 2 - 25

1шт.

A33443

PUMP

ASSY. - oil (Incl. Refs. 5 - 25) (Used with A23513 camshaft), Includes: Ref. 2 - 25

1шт.

2

A21094

BODY

ASSY. - oil pump, Includes: Ref. 3

1шт.

3

A21079

SLEEVE

- pump body

1шт.

4

A33840

GEAR WHEEL

GEAR - pump drive (Steel) (Used w/A33443 pump)

1шт.

5

A26329

GEAR

- pump drive (Cast) (Used w/A33443 pump)

1шт.

6

135-133

GROOVED PIN,3/16" x 1", Type A, Hardened

PIN, GROOVED, 3/16" x 1", Type A, Hardened

1шт.

7

A27857

WASHER

- thrust, drive gear (33/64 x 15/16 x 1/16")

1шт.

8

A27355

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

"O" RING - pump housing (1-3/16 x 1-7/16 x 1/8")

2шт.

9

A21102

SHAFT

- pump drive

1шт.

10

A27855

GEAR WHEEL

GEAR - driven (w/keyway)

1шт.

11

126-11

WOODRUFF KEY,#5, 1/8" x 5/8"

Driven gear #5, 1/8" x 5/8"

1шт.

12

A10916

RING, SNAP

RING - snap, drive shaft

1шт.

13

A27854

SHAFT

- idler

1шт.

14

A27856

GEAR WHEEL

GEAR - idler (w/o keyway)

1шт.

15

A33442

COVER - pump body

1шт.

16

75-412

SCREW,Rd, 1/4" x 3/4"

- cover, 1/4 x 3/4" N.C. rd. hd.

5шт.

17

75-424

SCREW

- cover, 1/4 x 1-1/2" N.C. rd. hd.

1шт.

18

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

19

A22566

PLUNGER

- relief valve

1шт.

20

A23598

VALVE SPRING

SPRING - relief valve

1шт.

21

A27858

NUT

- relief valve

1шт.

22

A8902

ADJUSTMENT SCREW,7/8" x 1 5/8"

SCREW - adjusting, relief valve

1шт.

23

222-31

HYD CONNECTOR,1"-18 x 1/2" NPTF w/Nut

CONNECTOR ASSY. - tube, 5/8" O.D. x 1/2" P.T., Includes: Ref. 24 and 25

1шт.

24

222-106

SLEEVE,5/8" Tube

- (For 5/8" O.D. tube)

1шт.

25

222-116

TUBE NUT,1"-18

NUT - (For 5/8" O.D. tube)

1шт.

28

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Pump to engine Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

29

92-6

LOCK WASHER,3/8"

2шт.

30

A27476

FILTER SCREEN

SCREEN - float

1шт.

31

132-32

COTTER PIN,3/32" x 1 1/2"

Pin, Split (Cotter), 3/32" x 1 1/2"

1шт.

32

A20735

TUBE

-, Serial Range: pump-filter

1шт.

33

222-31

HYD CONNECTOR,1"-18 x 1/2" NPTF w/Nut

CONNECTOR ASSY. - tube, 5/8" O.D. x 1/2" P.T., Includes: Ref. 34 and 35

1шт.

34

222-106

SLEEVE,5/8" Tube

- for 5/8" Tube

1шт.

35

222-116

TUBE NUT,1"-18

NUT - for 5/8" tube

1шт.

36

A10852

CLIP - tube

1шт.

37

A10072

BOLT,3/8" - 16 x 3/4"

- tube clip (3/8 x 3/4" N.C. spec.)

1шт.

38

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

39

A24528

ADAPTER

- tachometer drive

1шт.

40

A11195

PLUG

- adapter, tach. drive

1шт.

45

A23638

PAN - oil (Order A34982)

1шт.

46

A15391

GASKET

SET - oil, Serial Range: pan-block

1шт.

47

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Oil pan Hex, 3/8"-16 x 7/8", G5, Full Thd

32шт.

48

92-6

LOCK WASHER,3/8"

oil pan 3/8"

34шт.

49

A34826

PLUG,7/8" - 18 ORB

- drain (7/8" N.F.) (1st used eng. ser. no. 2150019), oil pan

1шт.

49

A30060

PLUG

- drain (3/4" N.F.) (Use prior to eng. ser. no. 2150019), oil pan

1шт.

50

A34827

GASKET

- (Copper) (Used w/A34826 plug), oil pan

1шт.

50

A30059

GASKET

- (Copper asbestos) (Used w/A30060 plug), oil pan

1шт.
