Запчасти Case W10B (010) - PISTON ASSEMBLY AND CONNECTING RODS, (401) DIESEL ENGINE (02) - ENGINE

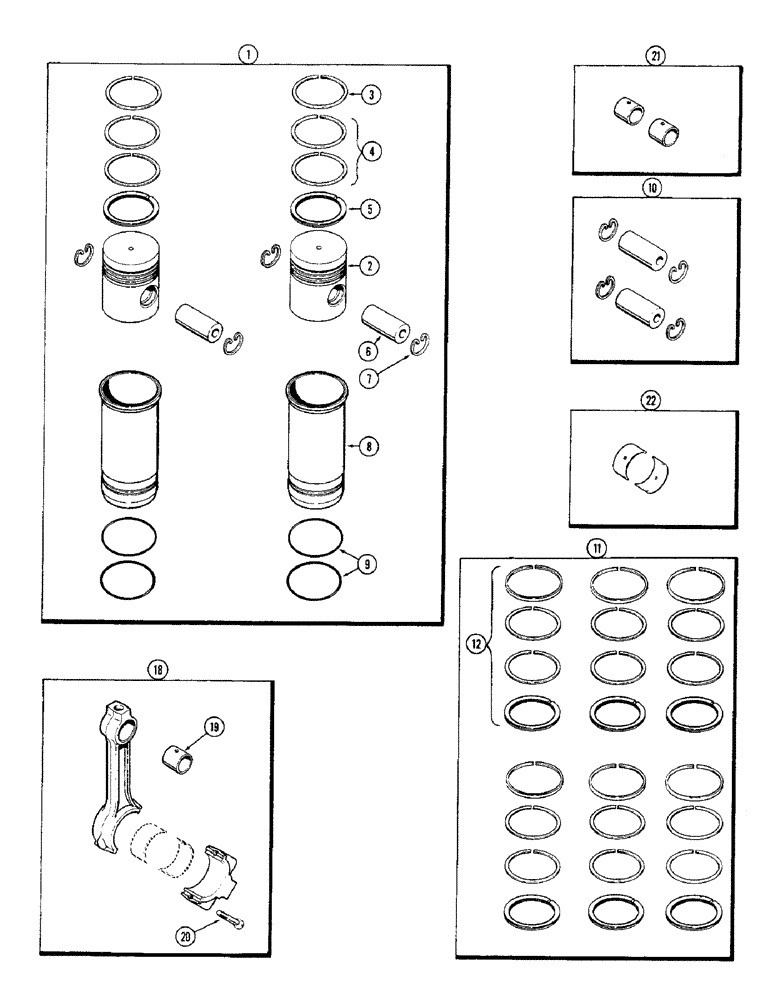

Схема запчастей Case W10B - (010) - PISTON ASSEMBLY AND CONNECTING RODS, (401) DIESEL ENGINE (02) - ENGINE

Артикул

Название

Примечание

Количество

1

A40479

SLEEVE

PISTON & SLEEVE KIT (Set of 2), Includes: Ref. 2 - 9

3шт.

2

A24488

PISTON

- aluminum (4-1/8" dia.)

2шт.

3

NSS

NOT SOLD SEPARAT

RING - 1st groove (Order ref. 11 or 12)

2шт.

4

NSS

NOT SOLD SEPARAT

RING - 2nd & 3rd groove (Order ref. 11 or 12)

4шт.

5

NSS

NOT SOLD SEPARAT

RING - oil control (Order ref. 11 or 12)

2шт.

6

NSS

NOT SOLD SEPARAT

PIN - wrist, piston (Order ref. 10)

2шт.

7

A21016

RING, SNAP

RING - retainer, wrist pin (See ref. 10)

4шт.

8

A23658

SLEEVE

- cylinder

2шт.

9

A23315

O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro

"O" RING - sleeve packing (4-1/4 x 4-1/2 x 1/8")

4шт.

10

A24517

PIN

KIT - wrist pin (Set of 2 includes rings)

3шт.

11

A40438

RING

KIT (Re-ring 6 pistons), Includes: Ref. 12

1шт.

12

A40364

RING, PISTON

RING KIT (Re-ring 1 piston)

6шт.

18

A24424

ROD

ASSY. - connecting, Includes: Ref. 19 and 20

6шт.

19

NSS

NOT SOLD SEPARAT

BUSHING - wrist pin (Order ref. 21)

1шт.

20

A27848

SPECIAL BOLT,1/2" - 20 x 2 3/16"

- cap to rod (1/2" N.F. x 2-3/16")

2шт.

21

A21722

BUSHING

KIT - wrist pin (Set of 2)

3шт.

22

A20393

LINING

LINERS - conn. rod brg.(Std.)

6шт.

22

A20569

JOURNAL

LINERS - conn. rod brg. (.002" undersize)

6шт.

22

A20571

BEARING LINER

LINERS - conn. rod brg. (.010" undersize)

6шт.

22

A20573

KIT

LINERS - conn. rod brg. (.020" undersize)

6шт.

22

A20576

LINING

LINERS - conn. rod brg. (.030" undersize)

6шт.

Выбрано товаров: 21
