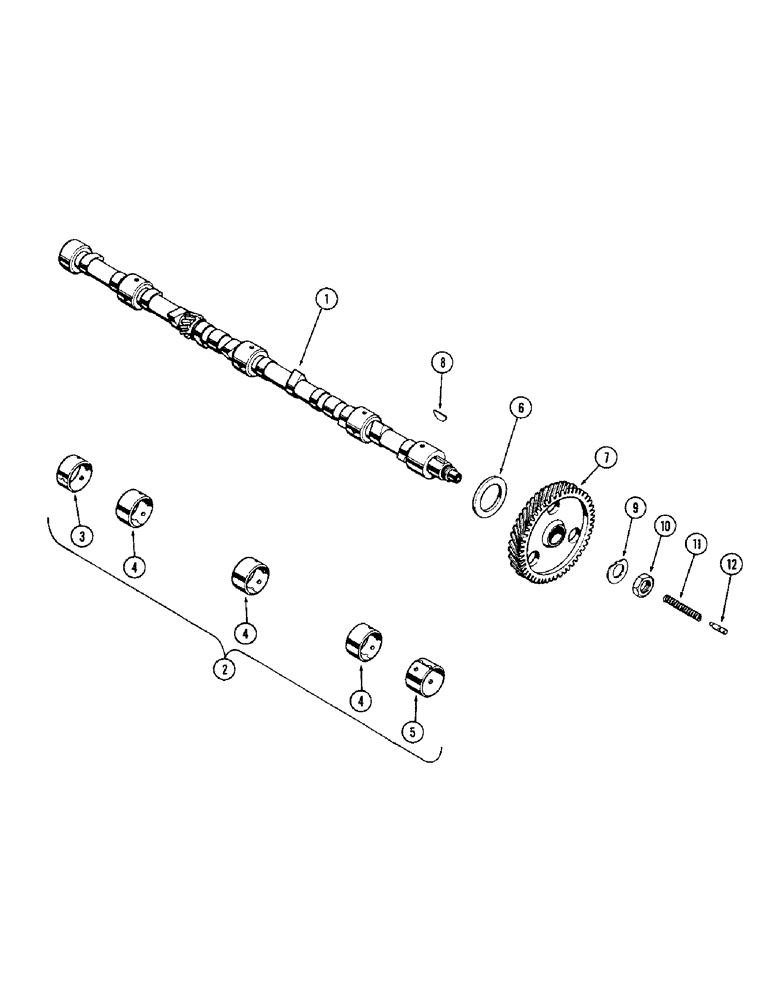

Запчасти Case W10B (008) - CAMSHAFT, (401) DIESEL ENGINE (02) - ENGINE

1

A33839

CAMSHAFT

- (w/steel gear insert) (Used w/A33840 oil pump gear) (See Figure 012)

1шт.

1

A23513

CAMSHAFT

- (w/cast gear) (Used w/A26329 oil pump gear) (See Figure 012) (Order 1-A33839 & 1-A33840)

1шт.

1

A60094

CAMSHAFT

- (w/front mounted oil pump) (Replaces A34968)

1шт.

2

A23544

BUSHING

SET - camshaft, Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

BUSHING - rear (15/32" wide)

1шт.

4

NSS

NOT SOLD SEPARAT

BUSHING - intermediate (1-27/64" wide)

3шт.

5

NSS

NOT SOLD SEPARAT

BUSHING - front (1-41/64" wide)

1шт.

6

A21017

WASHER

- thrust, camshaft

1шт.

7

A22604

GEAR

- camshaft

1шт.

8

126-128

WOODRUFF KEY,#18, 1/4" x 1 1/8", HT

Gear to camshaft #18, 1/4" x 1 1/8", HT

1шт.

9

A26444

LOCK WASHER

- tab, camshaft nut

1шт.

10

A26445

NUT

- camshaft

1шт.

11

CASA27853

SPRING

- camshaft thrust plunger

1шт.

12

A27852

PLUNGER

- thrust, camshaft

1шт.
