Артикул
Название
Примечание
Количество
1
A19984

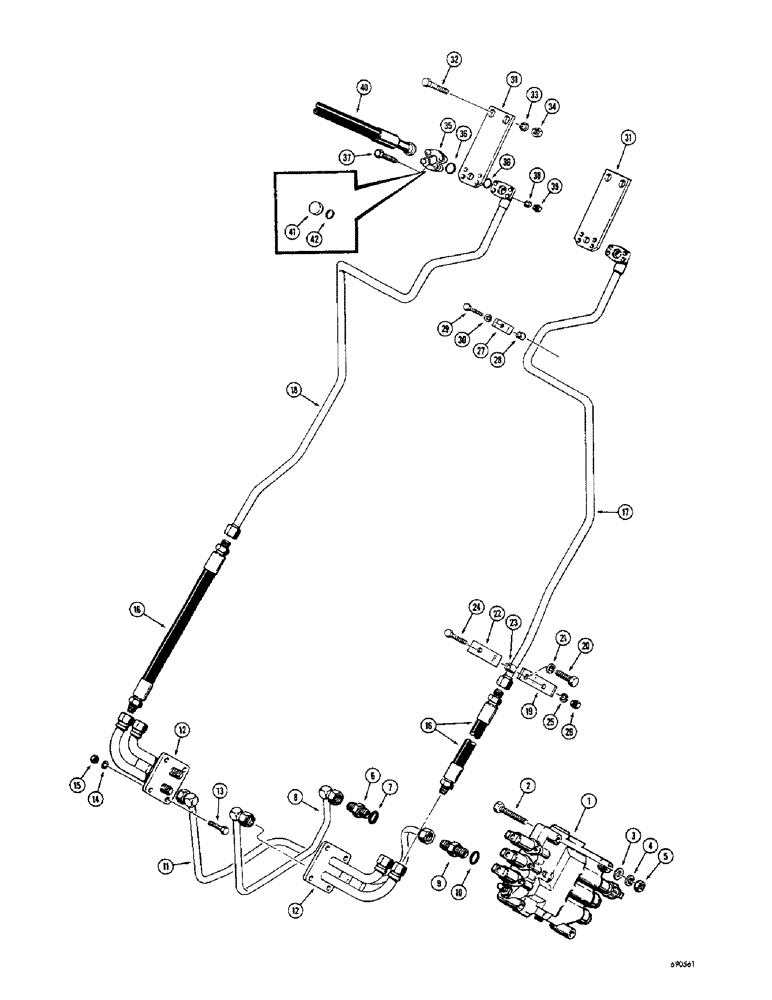

VALVE - loader control, 3 spool (Parts list Figure 224)
1шт.
2
13-876
BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 5
3шт.
3
195-33
WASHER,1/2"
- plain () 1/2"
3шт.
4
92-8
LOCK WASHER,1/2"
3шт.
5
25-108
NUT,1/2"-13, G5
- hex. (1/2" - 13 NC)
3шт.
6
A17646
CONNECTOR, ELEC
CONNECTOR - male, straight, Includes: Ref. 7
1шт.
7
218-5010
O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro
SEAL - "O" ring
1шт.
8
A19054
TUBE - valve to side plate connector, R.H.
1шт.
9
218-5069
HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB
CONNECTOR, HYD., , Male, straight, Incl. Ref. 10 1 5/16"-12, 37º x 1 5/16"-12, O-Ring
1шт.
10
218-5010
O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro
SEAL - "O" ring
1шт.
11
A19055
TUBE - valve to side plate connector, L.H.
1шт.
12
A19049
TUBE - special, side plate
2шт.
13
13-820
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd
8шт.
14
92-8
LOCK WASHER,1/2"
8шт.
15
25-148
JAM NUT,Jam, 1/2"-13, G5
- hex, jam (1/2"-13 NC)
8шт.
16
A17639
HOSE
- connector to intermediate tube (24-1/2" long)
2шт.
17
A19052
TUBE - intermediate, valve to clam cylinder (R.H.)
1шт.
18
A19053
TUBE
- intermediate, valve to clam cylinder (L.H.)
1шт.
19
L18972
BRACKET - mounting, clamp
2шт.
20
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
2шт.
21
92-6
LOCK WASHER,3/8"
2шт.
22
A16956
CLAMP - tube
2шт.
23
A16957
SPACER - clamp
2шт.
24
13-636
BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5
2шт.
25
92-6
LOCK WASHER,3/8"
2шт.
26
25-106
NUT,3/8"-16, G5
- hex. (3/8" - 16 NC)
2шт.
27
31665
COLLAR CLAMP
CLAMP - tube
2шт.
28
D36524
BUSHING
SPACER - clamp
2шт.
29
13-526
BOLT,Hex, 5/16" - 18 x 1-5/8", Gr 5
2шт.
30
92-5
LOCK WASHER,5/16"
2шт.
31
A19051
BRACKET - tube mounting
2шт.
32
13-832
BOLT,Hex, 1/2" - 13 x 2", Gr 5
4шт.
33
92-8
LOCK WASHER,1/2"
4шт.
34
25-108
NUT,1/2"-13, G5
- hex. (1/2" - 13 NC)
4шт.
35
A16961
FLANGE
- split, hose t bracket
4шт.
37
413-632
BOLT,Hex, 3/8" - 16 x 2", Gr 5
- 3/8" x 2" N.C. hex.
8шт.
38
92-6
LOCK WASHER,3/8"
8шт.
39
25-106
NUT,3/8"-16, G5
- hex. (3/8" - 16 NC)
8шт.
41
A18342
PLUG
- cylinder tube (Used when Drott bucket is removed)
2шт.
Выбрано товаров: 42
