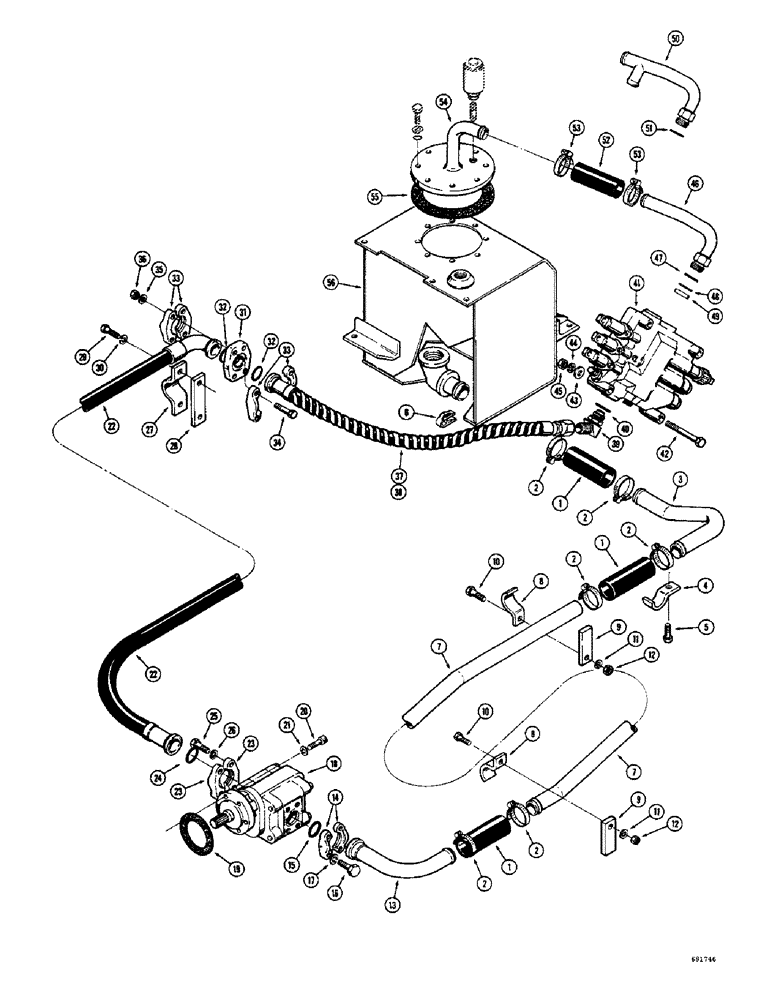

Запчасти Case W10B (208) - LOADER HYDRAULICS, PUMP SUCTION AND PRESSURE LINE HYDRAULICS (08) - HYDRAULICS

1

A16712

HOSE,1.75" ID x 5.50", SAE 20R1

Suction line, Low pressure

3шт.

2

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

6шт.

3

A19036

TUBE

Suction, tank to pump (At tank)

1шт.

4

A19037

SPARE PART, Serial Range: Tube-tank

1шт.

5

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

6

131-124

NUT

Tinnerman (5/16" - 18 NC)

1шт.

7

A19034

TUBE - suction, tank to pump (Intermediate)

1шт.

8

A14776

CLAMP - tube

2шт.

9

A19035

SPACER - clamp

2шт.

10

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

11

92-6

LOCK WASHER,3/8"

2шт.

12

25-106

NUT,3/8"-16, G5

2шт.

13

A19033

ELBOW UNION

Union Elbow TUBE - suction, hydraulic pump

1шт.

14

A14157

FLANGE

Split, suction, Serial Range: tube-pump

2шт.

15

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL

1шт.

16

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

17

92-8

LOCK WASHER,1/2"

4шт.

18

A19032

PUMP

Hydraulic, equipment (Parts list Figure 232)

1шт.

19

A17619

GASKET

Pump mounting

1шт.

20

61-620

HEX SOC SCREW,3/8"-16 x 1 1/4"

6шт.

21

92-6

LOCK WASHER,3/8"

6шт.

22

A19653

HOSE

Pressure, pump to valve (32-3/4" long)

1шт.

23

A12301

CLAMP,Half

Split, pressure, Serial Range: hose-pump

2шт.

24

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

SEAL

1шт.

25

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

4шт.

26

92-7

LOCK WASHER,7/16"

4шт.

27

A19654

CLAMP - hose

1шт.

28

A19652

SPARE PART Clamp

1шт.

29

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

30

92-6

LOCK WASHER,3/8"

1шт.

31

A14148

PLATE

Connector, hose

1шт.

32

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

SEAL

2шт.

33

A12301

CLAMP,Half

Split, connector plate

4шт.

34

13-732

BOLT,Hex, 7/16" - 14 x 2", Gr 5

4шт.

35

92-7

LOCK WASHER,7/16"

4шт.

36

25-107

NUT,7/16"-14, G5

1шт.

37

A19650

HOSE ASSY.

Connector to valve (2 spool valve) 36" long

1шт.

38

A19651

SPARE PART Connector to valve (3 spool valve) 34" long

1шт.

39

218-5140

45 ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adjustable, Incl. Ref. 40

1шт.

40

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL

1шт.

41

REF

INSTRUCTION

VALVE - hydraulic, loader control (See Figures 222 and 224 for proper valve)

1шт.

42

13-876

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 5

3шт.

43

195-33

WASHER,1/2"

3шт.

44

92-8

LOCK WASHER,1/2"

3шт.

45

25-108

NUT,1/2"-13, G5

3шт.

46

A19492

SPARE PART Return, valve to reservoir (Used prior to loader S/N 9807379), Incl. Ref. 47 - 49

1шт.

47

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL (replaces A30915)

1шт.

48

L30990

RING

Backup

1шт.

49

L30991

SPARE PART RETAINER - ring

1шт.

50

L15323

TUBE,1.25" OD x 9.6, 4.4" L

Return, valve to reservoir (Loader S/N 9807379 and after), Incl. Ref. 51

1шт.

51

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL

1шт.

52

A12299

HYDRAULIC HOSE,1.25" ID x 5.50", SAE20R1

Return, Low pressure

1шт.

53

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

54

A18777

SPARE PART Return filter

1шт.

55

A17427

GASKET

Filter cover

1шт.

56

REF

INSTRUCTION

TANK - hydraulic oil (See Figure 136 for related parts)

1шт.
