Артикул
Название
Примечание
Количество
1
A18554
CYLINDER

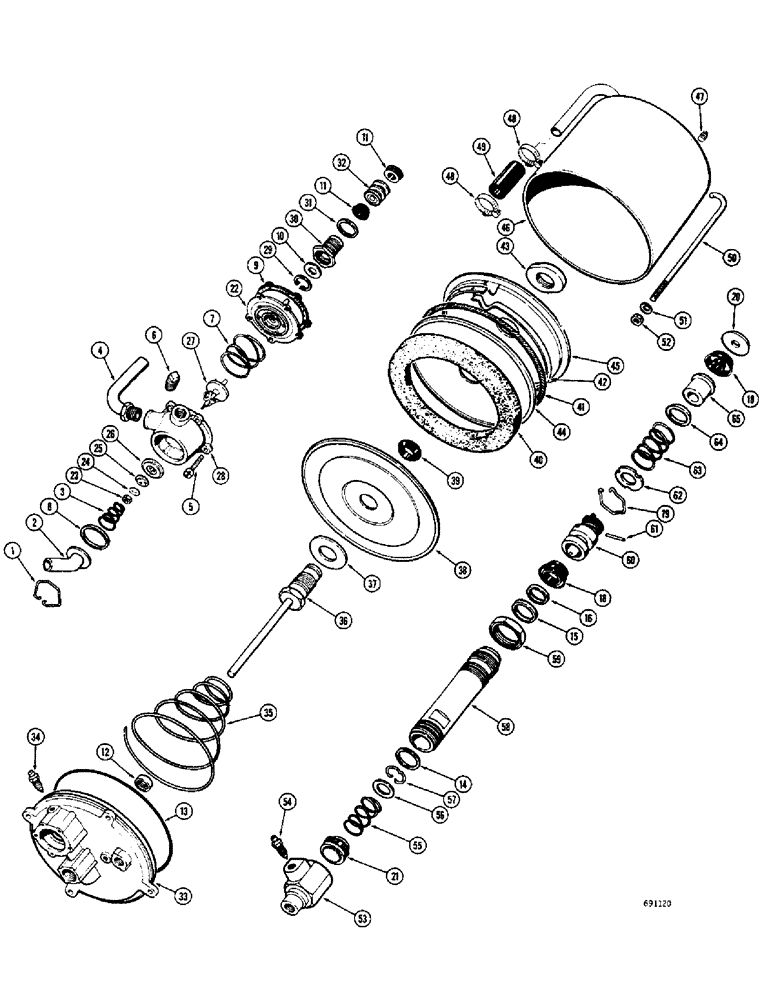

ASSEMBLY - Hydrovac, brake, Includes: Ref. 1 - 65
1шт.
1
A24870
SNAP RING - tube retaining
1шт.
2
A24866
TUBE AND COVER - valve
1шт.
3
A24868
SPRING - poppet
1шт.
4
A24867
TUBE - relief valve
1шт.
5
A19669
SCREW
- special, valve body
5шт.
6
221-1003
PLUG - pipe, square head (3/8" NPT)
1шт.
7
A24874
SPRING - valve seat
1шт.
A24876
KIT
- repair, major, Includes: Ref. 8 - 27
1шт.
A24878
REPAIR KIT
KIT - repair, minor, Includes: Ref. 8 - 20
1шт.
8
A24869
GASKET - tube and cover
1шт.
9
A19673
GASKET - valve body
1шт.
10
NSS
NOT SOLD SEPARAT
SEAL - fitting, valve
1шт.
11
NSS
NOT SOLD SEPARAT
CUP - relay valve piston
2шт.
12
NSS
NOT SOLD SEPARAT
SEAL - piston rod
1шт.
13
A19695
SEAL
- "O" ring, cylinder
1шт.
14
A19703
GASKET
- end cap
1шт.
15
A19706
SEAL
- slave tube
1шт.
16
A19707
SEAL
- slave tube
1шт.
17
NSS
NOT SOLD SEPARAT
SEAL - hydraulic piston (Not illustrated)
1шт.
18
NSS
NOT SOLD SEPARAT
CUP - hydraulic piston
2шт.
19
NSS
NOT SOLD SEPARAT
RING - snap
1шт.
20
NSS
NOT SOLD SEPARAT
WASHER - piston rod
1шт.
21
A19699
VALVE
ASSEMBLY - Hydrovac cylinder
1шт.
22
A24872
DIAPHRAGM
AND PLATE ASSEMBLY - cylinder
1шт.
A24877
KIT
- repair, valve poppet, Includes: Ref. 23 - 27
1шт.
23
129-15
NUT,#6-32
1шт.
24
A24862
WASHER - poppet
1шт.
25
2A4865
POPPET - valve
1шт.
26
A24861
SEAL ASSY.
SEAL - valve
1шт.
27
A24860
SEAL ASSY.
LIFTER - valve seal
1шт.
28
A24864
BODY - valve
1шт.
29
G46150
SNAP RING,0.75", Int, #75
Ring, Snap, 0.75", Int, #75
1шт.
30
A24857
FITTING - valve
1шт.
31
A24858
WASHER - piston stop
1шт.
32
A24855
PISTON
- relay valve
1шт.
33
A24859
PLATE - end
1шт.
34
A19696
SCREW
- bleeder
1шт.
35
A24873
SPRING - piston return
1шт.
36
A24871
ROD
PUSH ROD - piston
1шт.
37
A19691
WASHER
- piston plate
1шт.
38
A19690
PLATE - piston, front
1шт.
A19735
KIT
- piston packing, Includes: Ref. 39 - 43
1шт.
39
A19689
REPAIR KIT
SEAL - piston rod
1шт.
40
NSS
NOT SOLD SEPARAT
PACKING - piston
1шт.
41
A19686
GASKET
FELT - piston
1шт.
42
A19685
RING
- packing
1шт.
43
A19683
NUT - piston retainer
1шт.
44
A19687
PLATE - piston, rear
1шт.
45
A19684
RETAINER - piston
1шт.
46
A24908
HOUSING - cylinder
1шт.
48
A24907
X
CLAMP - hose
2шт.
49
A24875
HOSE - vacuum tube
1шт.
50
A24909
BOLT - retainer
4шт.
51
92-6
LOCK WASHER,3/8"
4шт.
52
25-116
NUT,Hex, 3/8"-24, G5
- hex. (3/8" - 24 NF)
4шт.
53
A19698
CAP - end
1шт.
54
A19696
SCREW
- bleeder
1шт.
55
A19700
VALVE SPRING
SPRING - valve retainer
1шт.
56
A19701
WASHER - plug
1шт.
57
A19702
RING, SNAP
RING - snap
1шт.
58
A24906
TUBE
- slave cylinder
1шт.
59
A19705
NUT - slave tube
1шт.
60
A19709
PISTON ASSY.
PISTON ASSEMBLY - hydraulic
1шт.
61
A19710
AXLE PIN
PIN - valve plunger
1шт.
62
A19712
WASHER
- piston stop
1шт.
63
A19713
VALVE SPRING
SPRING - piston return
1шт.
64
A19714
SLEEVE - piston
1шт.
65
A19715
RETAINER
- seal
1шт.
Выбрано товаров: 70
