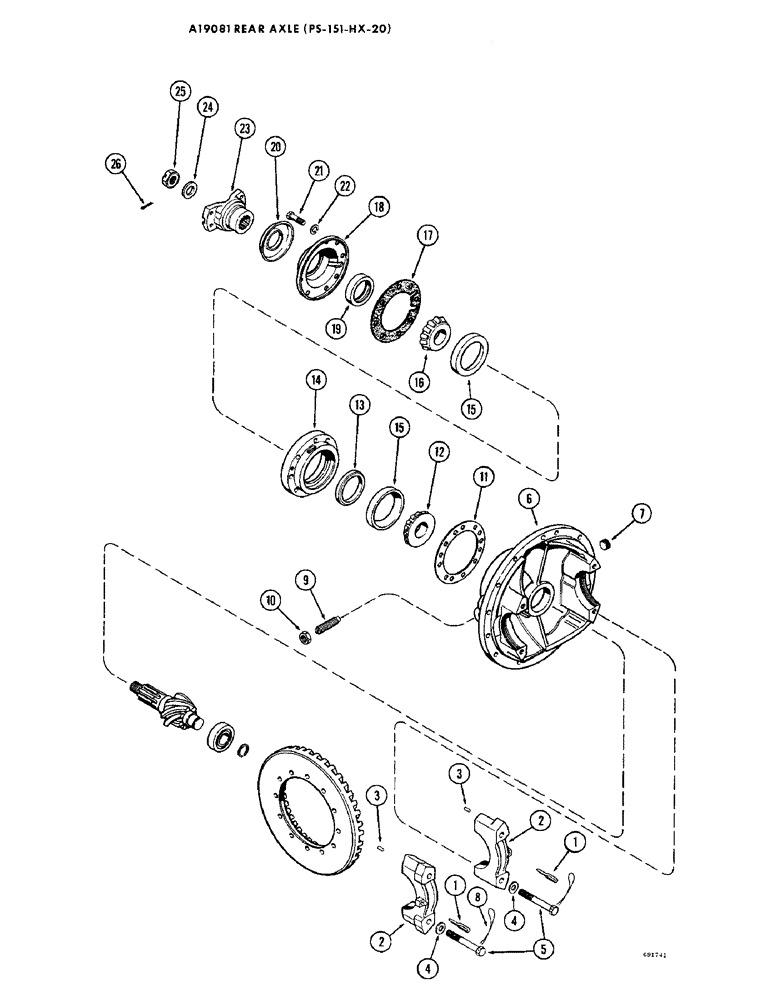

Запчасти Case W10B (182) - A19081 REAR STEERING AXLE, EARLY PRODUCTION, DIFFERENTIAL PINION CAGE AND CARRIER (06) - POWER TRAIN

A19081

AXLE ASSEMBLY - rear steering, complete (Use L11612), Includes: Ref. 1 - 26

1шт.

L30220

CARRIER

AND CAP ASSEMBLY - differential, Includes: Ref. 1 - 6

1шт.

1

A18196

HARDWARE

PIN - lock

2шт.

When lock pin is removed for differential repairs, it must be replaced with a new pin. For complete axle see Figures 174 - 182

1шт.

2

NSS

NOT SOLD SEPARAT

CAP - bearing, Includes: Ref. 3

2шт.

3

A15443

DOWEL

- bearing cap

4шт.

4

A16783

WASHER

- bearing cap bolt

4шт.

5

A12938

SCREW,5/8" - 11 x 4 1/2"

BOLT - bearing cap

4шт.

6

NSS

NOT SOLD SEPARAT

CARRIER - differential

1шт.

7

221-25

PLUG,Sq Soc, 3/4"-14 NPTF

- pipe, square socket head (3/4" NPT)

1шт.

8

NSS

NOT SOLD SEPARAT

LOCKWIRE - differential bearing cap bolt

2шт.

9

L30949

SCREW

- adjusting, thrust bearing (Replaces A12948 thurst block and A13122 adjusting screw)

1шт.

10

A13121

X

NUT - lock, thrust screw

1шт.

11

A12956

SHIM,.005" Thk

Bearing cage .005" Thk

3шт.

11

A12957

SHIM,.010" Thk

Bearing cage .010" Thk

2шт.

11

A12958

SHIM,.003" Thk

Bearing cage .003" Thk

1шт.

12

A9841

ROLLER BEARING,1.875" ID x 1.0594"

CONE - bearing, inner

1шт.

26

132-54

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

1шт.

13

A12960

SPACER

- bearing (.219")

1шт.

13

A12961

SPACER

- bearing (.220")

1шт.

13

A12962

SPACER

- bearing (.221")

1шт.

13

A12963

SPACER

- bearing (.222")

1шт.

13

A12964

SPACER

- bearing (.223")

1шт.

13

A12965

SHIM,.224" Thk

SPACER, , Bearing .224" Thk

1шт.

13

A12966

SPACER

- bearing (.230")

1шт.

13

A12967

SPACER

- bearing (.236")

1шт.

13

A12968

SPACER

- bearing (.242")

1шт.

13

A12969

SPACER

- bearing (.248")

1шт.

13

A12970

SPACER

- bearing (.254")

1шт.

A12959

CAGE

ASSEMBLY - pinion bearing, Includes: Ref. 14 and 15

1шт.

14

NSS

NOT SOLD SEPARAT

CAGE - pinion bearing

1шт.

15

A12949

BEARING CUP

CUP - bearing, inner and outer

2шт.

16

A12950

ROLLER BEARING,1.75" ID x 1.0594"

CONE - bearing, outer

1шт.

17

A12955

GASKET

- bearing cage

1шт.

A12954

COVER ASSY

SEAL AND RETAINER ASSEMBLY - oil, Includes: Ref. 18 and 19

1шт.

18

NSS

NOT SOLD SEPARAT

RETAINER - oil seal

1шт.

19

A16901

SEAL

- oil, pinion shaft

1шт.

20

A12952

CYLINDER END CAP

SLINGER - companion yoke

1шт.

21

113-306

BOLT (SPREADER)

HHCS - 7/16" - 14 NC x 1-3/4" (Grade 8)

8шт.

22

92-7

LOCK WASHER,7/16"

8шт.

23

A19891

YOKE - drive shaft

1шт.

24

A13124

WASHER

- yoke nut

1шт.

25

L30731

SLOTTED NUT

- pinion, Serial Range: gear-yoke

1шт.
