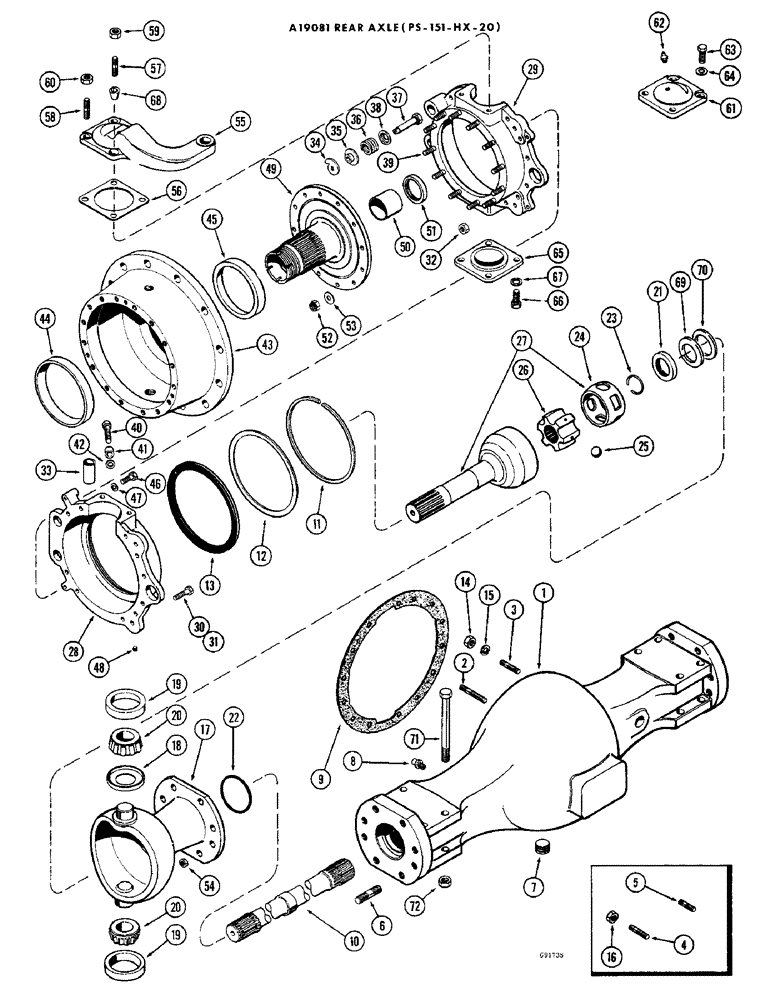

Запчасти Case W10B (176) - A19081 REAR STEERING AXLE, EARLY PRODUCTION, AXLE HOUSING AND STEERING (06) - POWER TRAIN

A19081

AXLE ASSEMBLY - rear steering, complete (Use L11612), Includes: Ref. 1 - 70

1шт.

A14982

HOUSING ASSEMBLY - axle, Includes: Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - axle

1шт.

2

L30673

STUD

- carrier to housing (3" long) Replaces A13130

4шт.

3

A13130

STUD

- carrier to housing (2-5/8" long) Replaces A13131

10шт.

4

A13130

STUD

- carrier to housing (2-5/8" long) Used with 131-183 lock nut

4шт.

5

A13131

STUD

- carrier to housing (2" long) Used with 131-183 lock nut

10шт.

6

A16374

STUD

-, Serial Range: trunnion-housing

16шт.

REF. 6 & 54 A SHORTER VERSION OF THIS STUD WAS USED, NEW BOLT USED IS 131-225

1шт.

7

221-27

DRAIN PLUG,Sq Soc, 1 1/4"-11 1/2, NTPF

PLUG - pipe, square socket head (1-1/4" NPT)

1шт.

8

A12928

BREATHER

- oil, axle housing

1шт.

9

A12943

GASKET

- axle to differential carrier

1шт.

10

A15044

SHAFT

- rear axle

2шт.

11

A15038

RING

SNAP RING - seal and retainer

2шт.

12

A15035

RETAINER

- seal

2шт.

13

A15029

SEAL

- grease, trunnion socket

2шт.

14

131-74

LOCK NUT,1/2"-20

NUT - hex., lock (1/2" - 20 NF) Used with L30673 and A13130

14шт.

15

L30674

WASHER

- carrier to housing stud (Used with L30673 and A13130)

14шт.

16

131-183

LOCK NUT,1/2"-20, GC

NUT - hex., lock (Used with A13130 and A13131)

14шт.

17

A15048

SOCKET

- trunnion

2шт.

18

A15027

RETAINER

- grease, upper bearing

2шт.

19

40406

CUP

- steering bearing

4шт.

20

A15022

CUP ASSY.

CONE - steering bearing

4шт.

21

A12994

OIL SEAL

OIL SEAL - axle shaft

2шт.

22

A15026

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

SEAL -, Serial Range: trunnion-housing

2шт.

A15049

CAGE

JOINT ASSEMBLY - universal, Includes: Ref. 23 - 27

2шт.

23

A15040

RING, SNAP

SNAP RING - joint to axle shaft

1шт.

24

NSS

NOT SOLD SEPARAT

RACE - outer

1шт.

25

A15039

BALL

- universal joint

6шт.

26

NSS

NOT SOLD SEPARAT

RACE - inner

1шт.

27

NSS

NOT SOLD SEPARAT

CAGE AND SHAFT - universal joint

1шт.

A15050

HUB CAP

FLANGE ASSEMBLY - steering knuckle, Includes: Ref. 28 - 45

2шт.

28

NSS

NOT SOLD SEPARAT

FLANGE - inner, steering knuckle

1шт.

29

NSS

NOT SOLD SEPARAT

FLANGE - outer, companion

1шт.

30

113-405

X

HHCS - 1/2" - 13 NC x 1-1/4" (Grade 8)

2шт.

31

114-407

X

HHCS - 1/2" - 20 NF x 1-7/8" (Grade 8)

2шт.

32

25-178

NUT,1/2"-20, G5, Hvy

- hex. (1/2" - 20 NF)

2шт.

33

A15081

BUSHING,22.28mm ID x 28.66mm OD x 56.36mm L

- steering yoke bolt

1шт.

34

A13201

SHOE

CAM - adjusting, brake shoe

2шт.

35

A15061

SPACER

RETAINER - cam spring

2шт.

36

A15069

VALVE SPRING

SPRING - adjusting cam

2шт.

A16391

AXLE PIN

BOLT ASSEMBLY - adjusting cam, Includes: Ref. 37 and 38

2шт.

37

A15068

BOLT (SPREADER)

BOLT - adjusting cam

1шт.

38

A15007

WASHER

- adjusting cam

1шт.

39

A15024

STUD

- steering knuckle

12шт.

40

A15078

SCREW - steering stop

1шт.

41

A15037

SPACER

- stop screw

1шт.

42

A15043

SHIM

- spacer, stop screw

1шт.

A14963

HUB ASSEMBLY - wheel, Includes: Ref. 43 - 45

1шт.

43

NSS

NOT SOLD SEPARAT

HUB - wheel

1шт.

44

A14961

BEARING CUP

CUP - bearing, outer

1шт.

45

A14985

BEARING CUP

CUP - bearing, inner

1шт.

46

113-405

X

HHCS - 1/2" - 13 NC x 1-3/8" (Grade 8)

12шт.

47

92-8

LOCK WASHER,1/2"

12шт.

48

221-41

PLUG

- pipe, slotted head (1/8" NPT)

2шт.

A15051

STEERING KNUCKLE

SPINDLE ASSEMBLY - wheel, Includes: Ref. 49 and 50

2шт.

49

NSS

NOT SOLD SEPARAT

SPINDLE - wheel

1шт.

50

A15032

BUSHING

- spindle

1шт.

51

A15028

SEAL

OIL SEAL - steering spindle

2шт.

52

A15033

LOCK NUT

- steering, Serial Range: spindle-flange

24шт.

53

A15036

WASHER

- steering, spindle nut

24шт.

54

131-59

LOCK NUT,3/4"-16

NUT - hex., lock (1/2" - 20 NF) (replaces 131-159)

16шт.

REF. 6 & 54 A SHORTER VERSION OF THIS STUD WAS USED, NEW BOLT USED IS 131-225

1шт.

55

A19888

LEVER

ARM - steering

1шт.

56

A15041

SHIM

- bearing cap (.005")

1шт.

56

A15042

SHIM

- bearing cap (.020")

1шт.

57

A15076

STUD

- short, steering arm

2шт.

58

A15077

STUD

- long, steering arm

2шт.

59

A15080

NUT

- stud, inner

4шт.

60

129-562

NUT,5/8"-18, G8

- hex. (5/16" - 18 NF) Grade 8

2шт.

61

A15046

CAP - upper steering bearing (R.H.)

1шт.

62

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

63

113-603

X

HHCS - 5/8" - 11 NC x 1-1/2" (Full thread)

4шт.

64

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

65

A15047

CAP

- lower steering bearing

2шт.

66

113-603

X

HHCS - 5/8" - 11 NC x 1-1/2" (Full thread)

8шт.

67

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

68

A13105

BUSHING

DOWEL - stud

2шт.

69

L30970

WASHER - seal protector

2шт.

70

L30971

WASHER - seal protector

2шт.

71

116-702

BOLT

HHCS - 3/4" - 16 NF x 8" (Grade 8)

8шт.

72

131-186

LOCK NUT,3/4"-16, GB

NUT - hex., lock (3/4" - 16 NF)

8шт.
