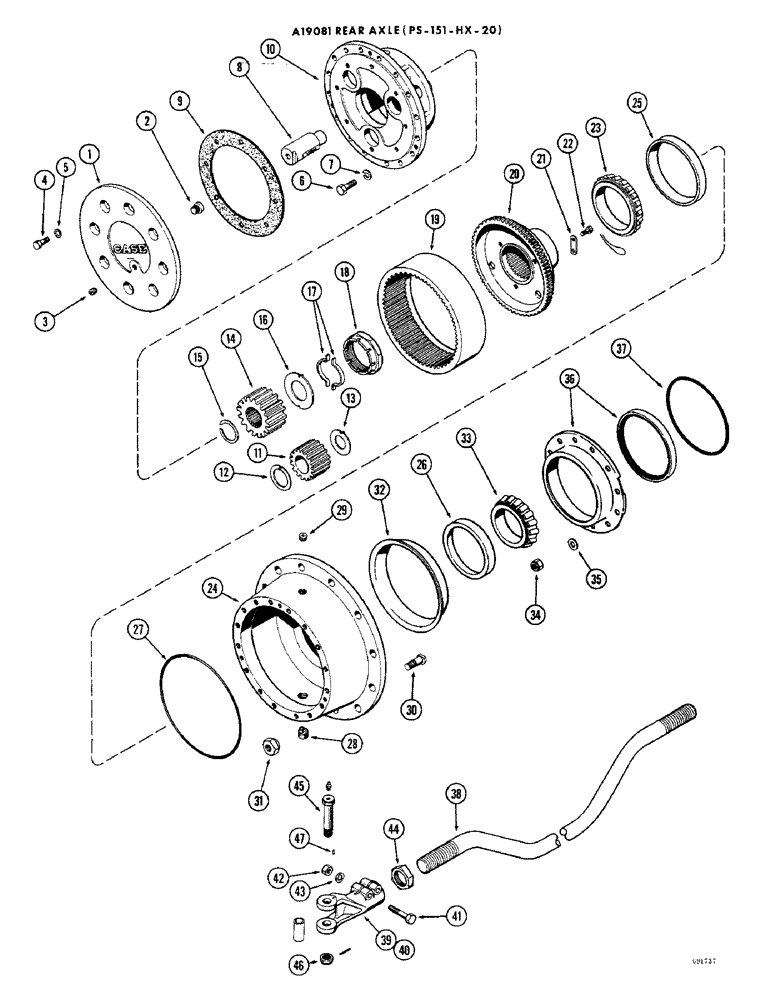

Запчасти Case W10B (174) - A19081 REAR STEERING AXLE, EARLY PRODUCTION, PLANETARY AND RELATED PARTS (06) - POWER TRAIN

A19081

AXLE ASSEMBLY - rear steering, complete (Use L11612), Includes: Ref. 1 - 47

1шт.

1

A14973

X

COVER - planetary spider

2шт.

2

A12980

BUTTON

- thrust

2шт.

3

221-41

PLUG

- pipe, slotted headless (1/8" NPT)

2шт.

4

L30675

SCREW

BOLT - planetary spider cover

16шт.

5

92-7

LOCK WASHER,7/16"

16шт.

6

26-826

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 8

HHCS 1/2" - 13 NC x 1-5/8" (Grade 8)

32шт.

7

92-8

LOCK WASHER,1/2"

32шт.

8

A19885

SHAFT

- planetary pinion

6шт.

9

A14971

GASKET

- spider cover

2шт.

10

A14979

U-JOINT SPIDER

SPIDER - planetary

2шт.

11

A14977

GEAR

PINION - planetary

6шт.

12

A14967

WASHER

- pinion thrust, outer

6шт.

13

A19886

WASHER

- pinion thrust, inner

6шт.

14

A14976

GEAR

- sun

2шт.

15

A14969

RING, SNAP

RING - retainer, sun gear

2шт.

16

A14966

WASHER

- thrust, sun gear

2шт.

17

A14970

LOCK ASSY

LOCK - bearing nut

4шт.

18

A14965

NUT

- hub bearing

2шт.

19

A14975

GEAR

- ring, pinion

2шт.

20

A14978

HUB

- ring gear

2шт.

21

A14964

LOCK ASSY

PLATE - lock

8шт.

22

A15983

BOLT,M10 x 1.25 x 40mm, Cl 10.9

- lock plate

16шт.

23

A14960

BEARING

CONE - bearing, outer

2шт.

A14963

HUB ASSEMBLY - drive wheel, Includes: Ref. 24 - 26

2шт.

24

NSS

NOT SOLD SEPARAT

HUB - drive wheel

1шт.

25

A14961

BEARING CUP

CUP - bearing, outer

1шт.

26

A14985

BEARING CUP

CUP - bearing, inner

1шт.

27

A19887

O-RING,11.5" ID x 11.68" OD x 0.103"

SEAL - "O" ring, spider to hub

2шт.

28

221-678

DRAIN PLUG,Sq Soc, 3/4" NPT

PLUG - pipe, magnetic (3/4" NPT)

2шт.

29

221-1031

DRAIN PLUG,Sq Soc, 1/4"-18 NPTF

PLUG - pipe, square socket head (1/4" NPT)

2шт.

30

A13112

STUD

- drive, Serial Range: wheel-hub

24шт.

31

A12522

WHEEL NUT

- drive wheel bolt

24шт.

32

A15418

SLINGER

- oil

2шт.

33

A15020

ROLLER BEARING,4" ID x 1.4219"

CONE - bearing, inner

2шт.

34

A15033

LOCK NUT

- retainer, oil seal to steering housing

24шт.

35

A15036

WASHER

- retainer nut

24шт.

36

A15031

OIL SEAL

AND RETAINER - hub bearing

2шт.

37

A15025

O-RING,8 3" ID x 9" OD x 1/8"

SEAL - "O" ring, retainer to steering housing

2шт.

38

A15082

TIE-ROD

ROD - tie, steering

1шт.

39

A13005

YOKE

- tie rod, L.H.

1шт.

40

A13004

YOKE

- tie rod, R.H.

1шт.

41

25282R1

BOLT,Hex, 1/2" - 20 x 2 3/4", Gr 8

HHCS - 1/2" - 20 NF x 2-3/4" (Grade 8), tie rod

4шт.

42

129-545

NUT,1/2"-20, G8

Tie rod 1/2"-20, G8

4шт.

43

92-8

LOCK WASHER,1/2"

tie rod 1/2"

4шт.

REFER TO ILLUSTRATION FIGURE, REF. SHOWN BETWEEN NUMBERS 43 & 46 FOR BUSHING IS PART A15081

1шт.

44

A13115

LOCK NUT

NUT - lock, tie rod

1шт.

45

A13107

BOLT

- yoke, tie rod (Includes 219-1 grease fitting)

2шт.

46

A13110

NUT

- yoke bolt, tie rod

2шт.

47

A13111

AXLE PIN

PIN - yoke bolt, tie rod

2шт.
