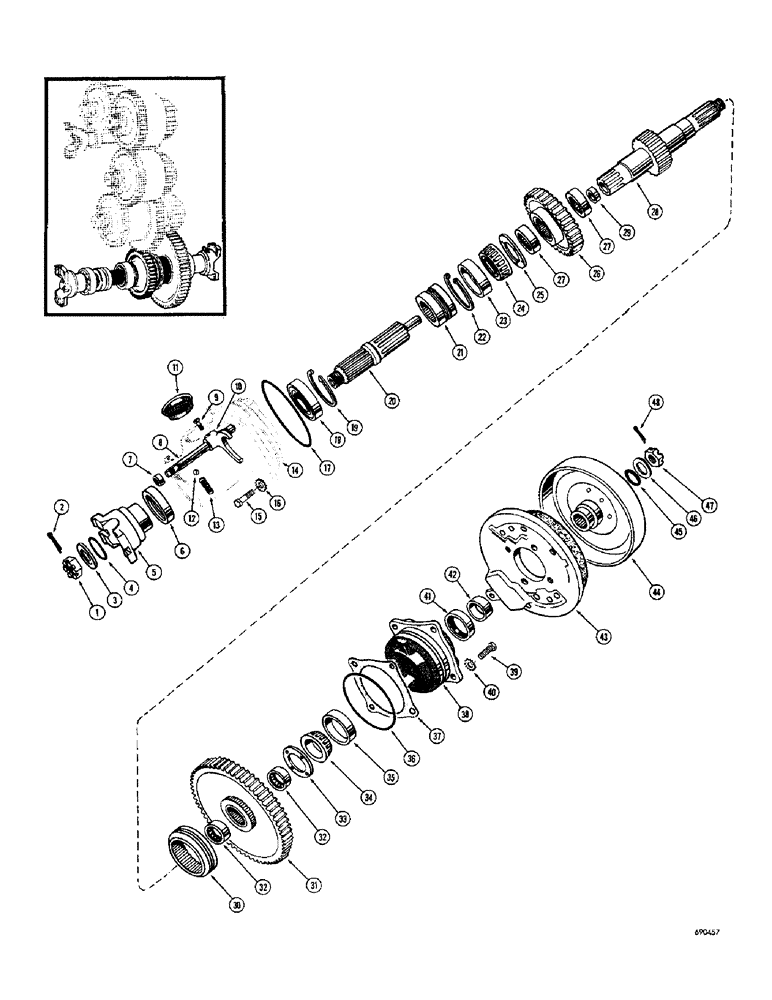

Запчасти Case W10B (154) - TRANSMISSION, TRANSMISSION OUTPUT SHAFT AND REAR AXLE SHIFT-OUT (06) - POWER TRAIN

L30332

KIT

TRANSMISSION ASSEMBLY - complete, Includes: Ref. 1 - 48

1шт.

1

A17926

FLANGE NUT

- flange, rear output

1шт.

3

A17938

WASHER

- flange nut

1шт.

4

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

SEAL - "O" ring, flange

1шт.

5

A19928

FLANGE

- shaft, rear output

1шт.

6

L30014

OIL SEAL

- oil, rear output shaft

1шт.

7

A17955

SEAL

- oil, shift-out rail

1шт.

8

A17952

RAIL - shift-out

1шт.

9

A17958

LOCK SCREW,3/8" - 24 x 27/32"

SCREW - lock, shift-out fork

1шт.

10

A17953

SHIFTER FORK

FORK - shift-out

1шт.

11

A17957

PLUG

- shift-out housing

1шт.

2

132-54

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

1шт.

12

211-11

BALL,3/8" Dia

- detent, shift-out rail (.) 3/8" Dia

1шт.

13

A17956

SPRING

- detent, shift-out rail

1шт.

48

132-54

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

1шт.

14

A17964

HOUSING - shift-out

1шт.

15

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

16

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

4шт.

17

A18317

RING,0.139" Thk x 5.734" ID, -256, Cl 5, 75 Duro

SEAL - "O" ring, Serial Range: housing-case

1шт.

18

B18215

BALL BEARING,1.5748" ID x 3.1496" OD x 0.7087"

BEARING - disconnect shaft

1шт.

19

A17965

RING

SNAP RING - shaft bearing

1шт.

20

A17967

SHAFT

- transmission disconnect

1шт.

21

A17968

HUB

- shift-out

1шт.

22

A17965

RING

SNAP RING - bearing, front output shaft

1шт.

A17978

BEARING ASSY,1.6885" ID x 3.1572" OD x 1.008"

BEARING ASSEMBLY - front output shaft, Includes: Ref. 23 and 24

1шт.

23

NSS

NOT SOLD SEPARAT

CUP - bearing

1шт.

24

NSS

NOT SOLD SEPARAT

CONE - bearing

1шт.

25

A17977

WASHER

- thrust, high gear

1шт.

L30045

GEAR WHEEL

GEAR ASSEMBLY - high range, output shaft, Includes: Ref. 26 and 27

1шт.

26

NSS

NOT SOLD SEPARAT

GEAR - high range

1шт.

27

A17969

ROLLER BEARING

BEARING - gear

2шт.

A17975

SHAFT

ASSEMBLY - front output, Includes: Ref. 28 and 29

1шт.

28

NSS

NOT SOLD SEPARAT

SHAFT - front output

1шт.

29

A17976

BUSHING

- pilot, output shaft

1шт.

30

A17963

HUB - range shift

1шт.

L30044

GEAR

ASSEMBLY - low range, output shaft, Includes: Ref. 31 and 32

1шт.

31

NSS

NOT SOLD SEPARAT

GEAR - low range

1шт.

32

A17969

ROLLER BEARING

BEARING - low gear

2шт.

33

A17977

WASHER

- thrust, low gear

1шт.

A17978

BEARING ASSY,1.6885" ID x 3.1572" OD x 1.008"

BEARING ASSEMBLY - front output shaft, Includes: Ref. 34 and 35

1шт.

34

NSS

NOT SOLD SEPARAT

CONE - bearing

1шт.

35

NSS

NOT SOLD SEPARAT

CUP - bearing

1шт.

36

A18317

RING,0.139" Thk x 5.734" ID, -256, Cl 5, 75 Duro

SEAL - "O" ring, bearing, Serial Range: cap-case

1шт.

37

A17983

SHIM,.004" Thk

Bearing cap .004" Thk

1шт.

37

A17984

SHIM,.007" Thk

Bearing cap .007" Thk

1шт.

37

A17985

SHIM,.010" Thk

Bearing cap .010" Thk

1шт.

38

A17974

FILTER ASSY

CAP - bearing, output shaft

1шт.

39

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

40

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

4шт.

41

L30014

OIL SEAL

- oil, front output shaft

1шт.

42

A17979

SPACER - flange

1шт.

43

A17980

BRAKE

ASSEMBLY - parking (Parts list Figure 152)

1шт.

44

A19927

FLANGE

- front output and brake

1шт.

45

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

SEAL - "O" ring, flange

1шт.

46

A17938

WASHER

- flange nut

1шт.

47

A17926

FLANGE NUT

- flange

1шт.
