Запчасти Case W10 (180) - HYDRAULIC LIFT CYLINDER (08) - HYDRAULICS

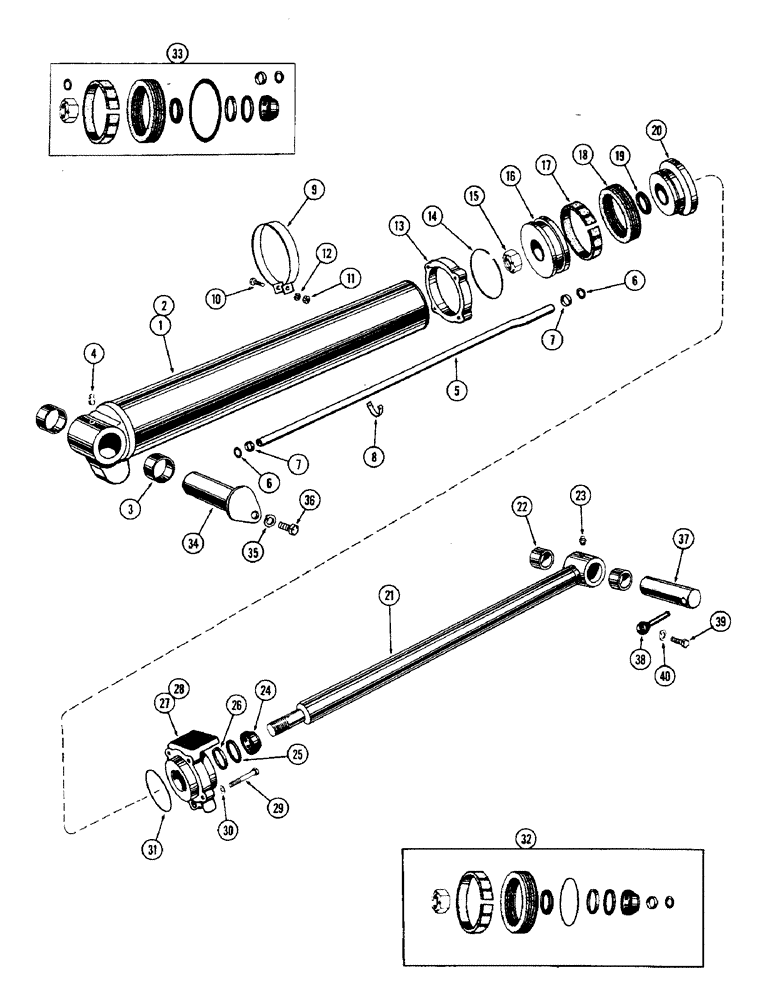

Схема запчастей Case W10 - (180) - HYDRAULIC LIFT CYLINDER (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

A17860

CYLINDER ASSY. - lift, R.H. (Heavy duty), Includes: Ref. 1 - 32

1шт.

A14390

CYLINDER ASSY. - lift, R.H. (Std.) (Order A17860), Includes: Ref. 1 - 32

1шт.

A17861

CYLINDER ASSY. - lift, L.H. (Heavy duty), Includes: Ref. 1 - 32

1шт.

A14391

CYLINDER ASSY. - lift, L.H. (Std.) (Order A17861), Includes: Ref. 1 - 32

1шт.

1

A14392

CYLINDER - R.H., Includes: Ref. 3

1шт.

2

A14393

CYLINDER - L.H., Includes: Ref. 3

1шт.

3

A12058

BUSHING,44.88mm ID x 53.92mm OD x 38.1mm L

- pivot, cylinder

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - 1/8" str.

1шт.

5

A12387

TUBE - oil port

1шт.

6

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - port tube

2шт.

7

A14398

WASHER

- back-up, port tube

2шт.

8

A15383

CLAMP - port tube

1шт.

9

A15384

STRAP - port tube support

1шт.

10

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

1шт.

11

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

1шт.

12

92-5

LOCK WASHER,5/16"

1шт.

13

A12384

CLAMP - head

1шт.

14

A12385

RING, SNAP

SNAP RING -, Serial Range: head-cylinder

1шт.

15

131-62

LOCK NUT,1 1/7 4"-12

NUT - lock, 1-1/4" N.F. hex.

1шт.

16

A17813

LARGE PLATE

PLATE - follower

1шт.

17

A17814

SCRAPER RING

RING - wear

1шт.

18

A17815

GASKET KIT

PACKING - "V" ring, piston

1шт.

19

A7560

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

"O" RING - pisotn to rod

1шт.

20

A17812

PISTON

1шт.

21

A12400

ROD - piston

1шт.

22

A12058

BUSHING,44.88mm ID x 53.92mm OD x 38.1mm L

- pivot

2шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - 1/8" str.

1шт.

24

A13893

WIPER

OIL SEAL - piston rod

1шт.

25

A14230

RING

"O" RING - piston rod

1шт.

26

A13902

WASHER

- back-up

1шт.

27

A14396

HEAD - cylinder, R.H.

1шт.

28

A14397

HEAD - cylinder, L.H.

1шт.

29

14-1044

BOLT,Hex, 5/8" - 18 x 2-3/4", Gr 5

- 5/8 x 2-3/4" N.F. hex. hd.

4шт.

30

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

31

A14227

O-RING,0.139" Thk x 4.734" ID, -248, Cl 5, 75 Duro

"O" RING - cylinder head

1шт.

32

A17866

KIT

- repair, cyl. (Repairs heavy duty cyl.)

1шт.

32

A17736

REPAIR KIT

KIT - repair, cyl. (Repairs std. cyl. only)

1шт.

34

A12499

PIN - pivot, cylinder

2шт.

35

92-8

LOCK WASHER,1/2"

2шт.

36

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

37

A12508

PIN - pivot, cylinder front

2шт.

38

A10615

LOCK ASSY

LOCK - pivot pin

4шт.

39

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

40

92-8

LOCK WASHER,1/2"

2шт.
