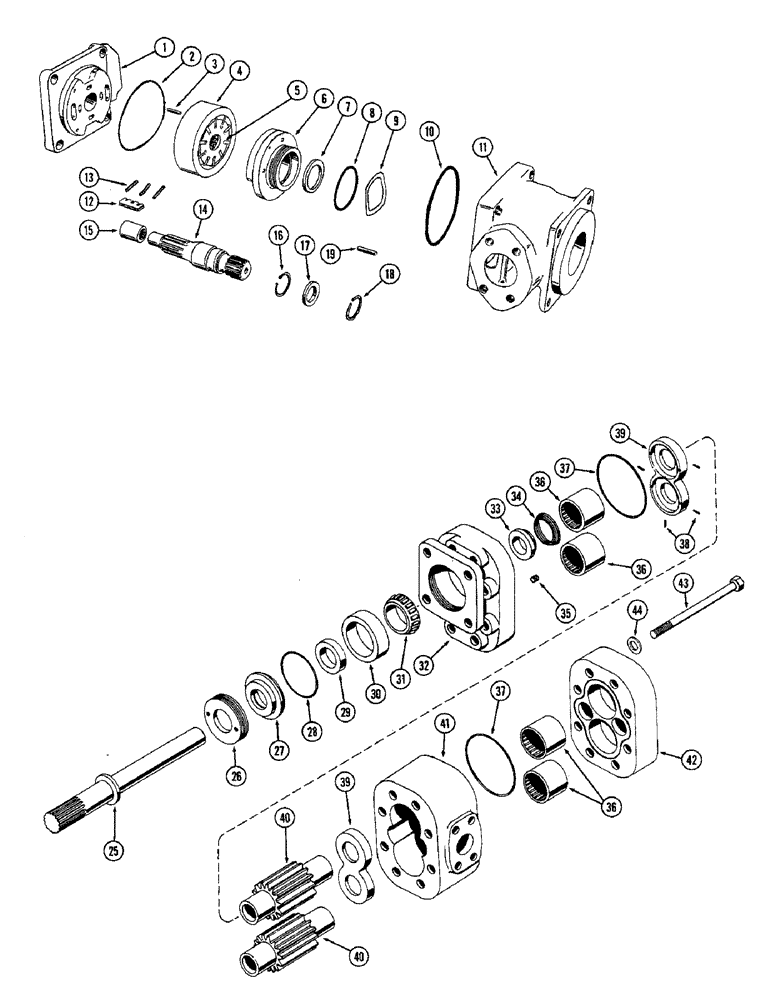

Запчасти Case W10 (176) - A14772 HYDRAULIC SYSTEM (08) - HYDRAULICS

A14772

PUMP ASSY. - (Dension) Order A16714 kit from below, Includes: Ref. 1 - 19

1шт.

1

A15138

CAP - end

1шт.

2

A15147

"O" RING - end cap (4-3/4" I.D. x 5" O.D.)

1шт.

3

135-580

PIN - groove, 1/4 x 3/4" Type 5

2шт.

4

A15135

RING - cam (45 GPM at 1800 RPM)

1шт.

5

A15129

ROTOR

1шт.

6

A15132

PLATE - front port

1шт.

7

A15148

SEAL - oil

1шт.

8

A15143

"O" RING - port (2-3/16" O.D. x 2-5/8" I.D.)

1шт.

9

A15140

SPRING - washer

1шт.

10

A15146

"O" RING - body (4-1/2 I.D. x 4-3/4 O.D.)

1шт.

11

A15134

HOUSING - pump

1шт.

12

A15130

VANE - rotor

10шт.

13

A15131

SPRING - vane

30шт.

14

A15133

SHAFT - drive

1шт.

15

A15139

BEARING - drive shaft

1шт.

16

A15142

RING - snap, internal

1шт.

17

T19402

BEARING

- ball

1шт.

18

A7409

SNAP RING,#137, Ext

Ring, Snap, #137, Ext

1шт.

19

A15128

KEY - round, end, Serial Range: plate-housing

1шт.

A16714

KIT - pump replacement, A16690 hydraulic, Includes: Ref. 25 - 44

1шт.

Kit used to replace A14772 Dension pump, includes the following parts from Figure 174, A14157 clamp, A14515 "O" ring, A16710 hose, A16711 elbow, A16712 hose and 13-828 bolts.

1шт.

A16690

PUMP, HYDRAULIC

PUMP - (Commercial Shearing), A16690 hydraulic, Includes: Ref. 25 - 44

1шт.

25

A16799

SHAFT

- pump drive, A16690 hydraulic

1шт.

26

A16792

NUT

- retainer, bearing & shaft, A16690 hydraulic pump

1шт.

27

A16791

RETAINER

- seal, A16690 hydraulic pump

1шт.

28

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

"O" RING - seal (Replaces A16797), A16690 hydraulic pump

1шт.

29

A16796

SEAL

- oil, drive shaft, A16690 hydraulic pump

1шт.

30

A16794

BEARING CUP

CUP - bearing, drive shaft, A16690 hydraulic pump

1шт.

31

A16795

ROLLER BEARING,1.375" ID x 1.125"

CONE - bearing, drive shaft, A16690 hydraulic pump

1шт.

32

A16805

COVER - front, A16690 hydraulic pump

1шт.

33

A16789

BUSHING

- pump shaft, A16690 hydraulic

1шт.

34

A16790

SPRING

- shaft bushing, A16690 hydraulic pump

1шт.

35

84-67

SCREW - set, 7/16 x 3/8" N.F. socket hd. cup pt., A16690 hydraulic pump

1шт.

36

A16793

NEEDLE BEARING

BEARING - pump gear, A16690 hydraulic

4шт.

37

A16798

X

"O" RING - housing, A16690 hydraulic pump

2шт.

38

D35672

SEAL

- pocket - (Cut to 8-1/4" lengths and 4-5/64" lengths), A16690 hydraulic pump

1шт.

39

A16800

PLATE

- thrust, driven gear, A16690 hydraulic pump

2шт.

40

A16803

GEAR WHEEL

GEAR - driven (Matched set of 2), A16690 hydraulic pump

1шт.

41

A16807

HOUSING

- pump gear, A16690 hydraulic

1шт.

42

A16806

COVER - pump, port end, A16690 hydraulic pump

1шт.

43

13-810

BOLT - 1/2 x 6-1/2" N.C. hex. hd., A16690 hydraulic pump

8шт.

44

95-8

WASHER,1/2"

- plain, SAE, A16690 hydraulic pump 1/2"

8шт.
