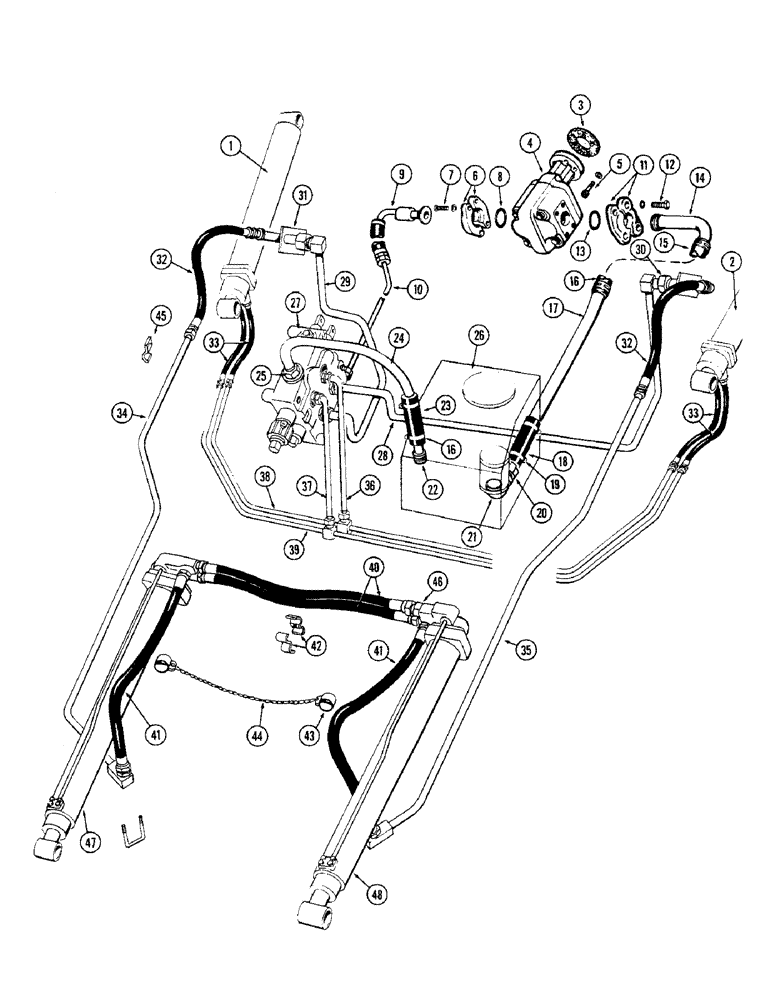

Запчасти Case W10 (174) - TWO SPOOL VALVE HYDRAULIC SYSTEM, LATE MODELS (08) - HYDRAULICS

1

A17861

CYLINDER ASSY. - lift, L.H. (Repairs Figure 180)

1шт.

2

A17860

CYLINDER ASSY. - lift, R.H. (Repairs Figure 180)

1шт.

3

A12304

GASKET,0.4mm Thk

- pump mounting

1шт.

4

A16690

PUMP, HYDRAULIC

PUMP - hydraulic (Order from Figure 176)

1шт.

5

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- 1/2 x 1-3/4" N.C. hex. hd.

4шт.

6

A12301

CLAMP,Half

CLAMP - split flange, outlet hose

1шт.

7

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

4шт.

8

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

"O" RING - hose to pump

1шт.

9

A16710

HOSE - pump to pressure tube

1шт.

10

A14469

TUBE - pressure, Serial Range: pump-vavle

1шт.

11

A14157

FLANGE

CLAMP - split flange, pump inlet tube

2шт.

12

113-309

BOLT - 7/16 x 1-3/8" N.C. hex.

4шт.

13

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

"O" RING - pump inlet tube

1шт.

14

A16711

ELBOW - pump inlet

1шт.

15

A16712

HOSE,1.75" ID x 5.50", SAE 20R1

- Pressure tube 1.75" ID x 5.50", SAE 20R1

1шт.

16

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

4шт.

17

A14775

TUBE - suction, hyd. pump

1шт.

18

A14777

HOSE - suction, Serial Range: tube-tank

1шт.

19

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

20

A14780

NIPPLE - suction tube hose

1шт.

21

221-1396

ELBOW - tank, 1-1/2" P.T. 90 degrees 90º, 1 1/2" NPT

1шт.

22

A12294

NIPPLE, LUBE

NIPPLE - tank return hose

1шт.

23

A12299

HYDRAULIC HOSE,1.25" ID x 5.50", SAE20R1

1.25" ID x 5.50", SAE 20R1 - Return to tank

1шт.

24

A12314

TUBE - oil return, Serial Range: valve-tank

1шт.

25

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

"O" RING - return tube to tank

1шт.

26

A16586

TANK - oil (Order from Figure 158)

1шт.

27

A19983

LOCK VALVE

VALVE - control (Repairs Figure 170)

1шт.

27

A18048

VALVE - control (Order A19983. Repairs Figure 168)

1шт.

27

A16785

VALVE - control (Order A19983. Repairs Figure 166)

1шт.

28

A14471

TUBE - valve to L.H. junction

1шт.

29

A14470

TUBE - valve to R.H. junction

1шт.

30

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - tube to junction (1" tube x 1-5/16" N.F.)

2шт.

31

A16913

PIPE & BRACKET

2шт.

32

A14473

HOSE - junction to tilt cyl. tube

2шт.

33

A12333

HOSE

- lift cylinder

4шт.

34

A12336

TUBE

- R.H. tilt cylinder (See A14798)

1шт.

34

A14798

TUBE - R.H. tilt cylinder (For high lift att.)

1шт.

35

A12337

TUBE - L.H. tilt cylinder (See A14799)

1шт.

35

A14799

TUBE - L.H. tilt cylinder (For high lift att.)

1шт.

36

A12323

TUBE - valve to inner manifold

1шт.

37

A12328

TUBE - valve to outer manifold

1шт.

38

A12327

TUBE

- manifold, lift cyl. inner

1шт.

39

A12331

TUBE

- manifold, lift cyl. outer

1шт.

40

A12339

HOSE ASSY.

HOSE - cross over, tilt cylinder

2шт.

41

A12335

HOSE ASSY.

HOSE - tube to tilt cylinder

2шт.

42

A12332

CLAMP

- cross over hose

2шт.

43

A13241

CLAMP - tie, Serial Range: chain-hose

2шт.

44

A13242

O-RING

CHAIN - tie, tilt cylinder hose

1шт.

45

A12308

CLAMP

CLIP - retainer, tilt cyl. tube

5шт.

46

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - hose to tilt cylindre (3/4" tube x 1-1/6" N.F.)

2шт.

47

A17862

CYLINDER ASSY. - tilt, R.H. (Repairs Figure 182)

1шт.

48

A17863

CYLINDER ASSY. - tilt, L.H. (Repairs Figure 182)

1шт.
