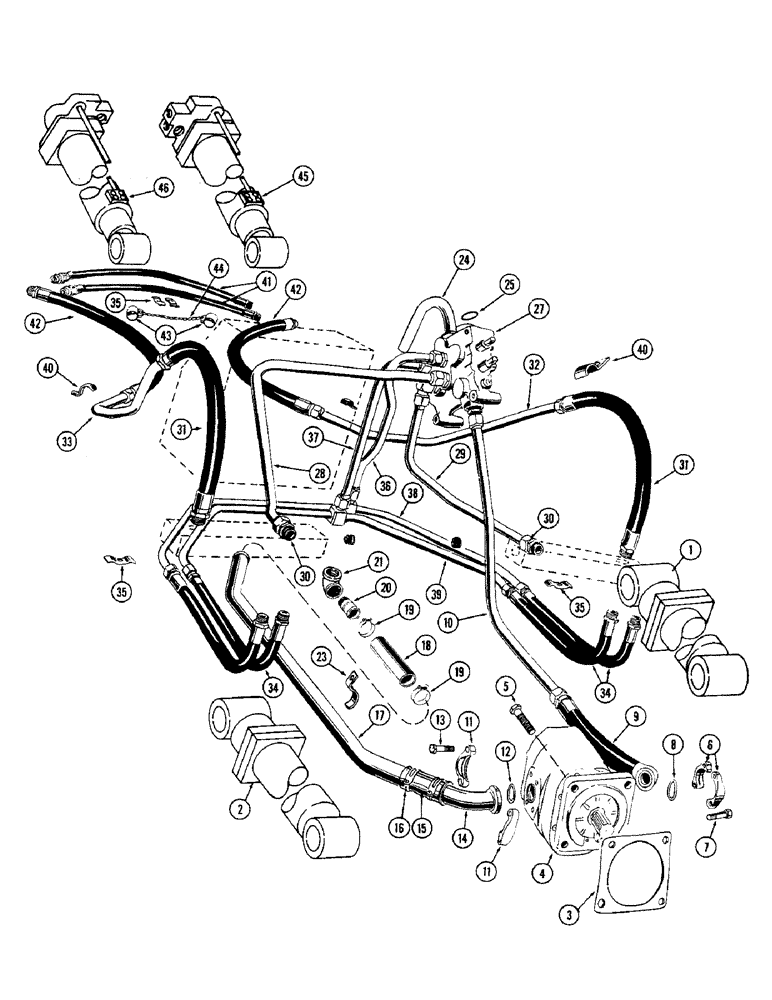

Запчасти Case W10 (172) - TWO SPOOL VALVE HYDRAULIC SYSTEM (08) - HYDRAULICS

1

A17860

CYLINDER ASSY. - lift, R.H. (Repairs Figure 180)

1шт.

2

A17861

CYLINDER ASSY. - lift, L.H. (Repairs Figure 180)

1шт.

3

A12304

GASKET,0.4mm Thk

- hydraulic pump mounting

1шт.

4

A14472

PUMP - hydraulic (Order A16714. See Figure 176)

1шт.

5

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

- 3/8 x 1-1/8" N.F. hex.

4шт.

6

A12301

CLAMP,Half

CLAMP - split flange, outlet hose

2шт.

7

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

4шт.

8

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

"O" RING - outlet hose

1шт.

9

A14778

HOSE - outlet, pump to pressure tube

1шт.

10

A14469

TUBE - pressure, Serial Range: pump-valve

1шт.

11

A14141

FLANGE

CLAMP - split flange, inlet elbow

2шт.

12

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

GASKET - inlet elbow to pump

1шт.

13

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

14

A14773

ELBOW - pump inlet

1шт.

15

A15749

HOSE - pump & tank inlet tube

1шт.

16

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

17

A14775

TUBE - suction, pump

1шт.

18

A14777

HOSE - pump suction at tank

1шт.

19

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

20

A14780

NIPPLE -, Serial Range: hose-elbow

1шт.

21

221-1396

ELBOW - tank, 1-1/2" P.T. 90 degrees 90º, 1 1/2" NPT

1шт.

23

A12298

CLAMP

- tube

1шт.

24

A12314

TUBE - oil return, Serial Range: valve-tank

1шт.

25

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

"O" RING - return tube to valve

1шт.

27

A19983

LOCK VALVE

VALVE - hyd. control (Order from Figure 160)

1шт.

28

A14471

TUBE - valve to junction R.H.

1шт.

29

A14470

TUBE - valve to junction L.H.

1шт.

30

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - tube to junction block (1" tube x 1-5/16 N.F.)

2шт.

31

A14473

HOSE - junction block to tilt cyl. tube

2шт.

32

A12336

TUBE

- R.H. tilt cylinder (See A14798)

1шт.

32

A14798

TUBE - R.H. tilt cylinder (For high lift att.)

1шт.

33

A12337

TUBE - L.H. tilt cylinder (See A14799)

1шт.

33

A14799

TUBE - L.H. tilt cylinder (For high lift att.)

1шт.

34

A12333

HOSE

- lift cylinder

4шт.

35

A12332

CLAMP

- hydraulic lines

4шт.

36

A12328

TUBE - valve to outer manifold tube

1шт.

37

A12323

TUBE - valve to inner manifold tube

1шт.

38

A12331

TUBE

- manifold, lift cyl. outer

1шт.

39

A12327

TUBE

- manifold, lift cyl. inner

1шт.

40

A12308

CLAMP

CLIP - tube, tilt cylinder

5шт.

41

A12339

HOSE ASSY.

HOSE - cross over, tilt cyl.

2шт.

42

A12335

HOSE ASSY.

HOSE - tilt, Serial Range: cylinder-tube

2шт.

43

A13241

CLAMP - tie chain

2шт.

44

A13242

O-RING

CHAIN - tie, tilt cyl. hose

1шт.

45

A17862

CYLINDER - tilt, R.H. (Repairs Figure 182)

1шт.

46

A17863

CYLINDER - tilt, L.H. (Repairs Figure 182)

1шт.
