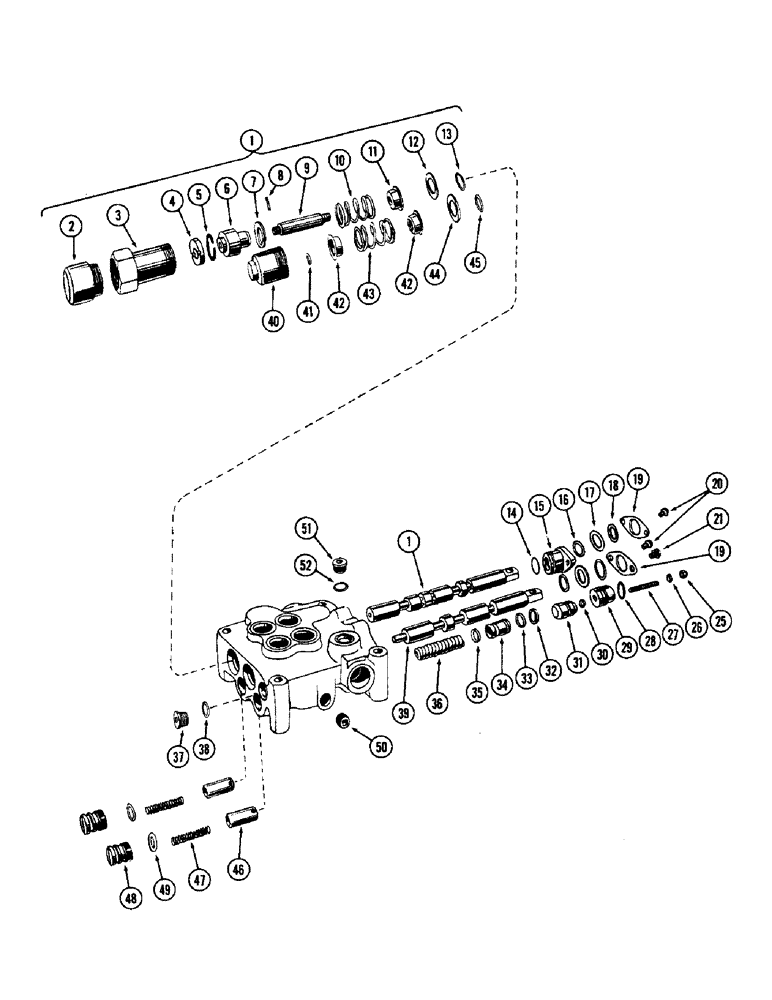

Запчасти Case W10 (164) - A13915 TWO SPOOL CONTROL VALVE (08) - HYDRAULICS

A13915

LOCK VALVE

VALVE ASSY. - complete (Order A19983), Includes: Ref. 1 - 52

1шт.

1

A15982

SPOOL KIT - lift (Order A16485 ref. 1 figure 166), Includes: Ref. 2 - 13

1шт.

2

A13649

CAP - spool detent

1шт.

3

A13648

CAP - screw, spool detent

1шт.

4

A15986

RETAINER - snap ring

1шт.

5

A13646

RING - snap, detent

1шт.

6

A15985

BARREL - detent

1шт.

7

A13644

RETAINER - float spool

1шт.

8

138-49

LOCK PIN,3/32" x 1 1/2", Slotted

Pin, , retaine 3/32" x 1 1/2", Slotted

1шт.

9

A15984

STUD - retainer, lift spool

1шт.

10

A13643

SPRING - spool

1шт.

11

A13164

RETAINER,13.49mm ID x 37.31mm OD

SPACER - centering

1шт.

12

A13166

WASHER

RETAINER - "O" ring

1шт.

13

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

"O" RING - spool

1шт.

14

A27355

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

"O" RING - spool, stem end

1шт.

15

A13177

HOUSING - seal, lift spool

1шт.

16

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

"O" RING - spool

2шт.

17

A13167

RETAINER

- "O" ring

2шт.

18

A13168

WIPER

- spool, stem end

2шт.

19

A13169

PLATE - spool end

2шт.

20

75-616

SCREW - mach., 3/8 x 1" N.C. rd. hd.

2шт.

21

75-610

X

SCREW - mach., 3/8 x 5/8" N.C. rd. hd.

2шт.

25

A13189

NUT - acorn, relief valve adjusting

1шт.

26

25-155

JAM NUT,Jam, 5/16"-24, G5

- jam, 5/16" N.F. hex.

1шт.

27

A13188

SCREW - adjusting, relief valve

1шт.

28

A15988

X

"O" RING - adjusting cap

1шт.

29

A15987

CAP - adjusting, relief valve

1шт.

30

A13163

INSERT - relief valve seat

1шт.

31

A15987

CAP - relief valve adjusting

1шт.

32

A13162

RING - back-up, "O" ring

1шт.

33

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - relief valve seat (Replaces A13185)

1шт.

34

A13180

PLUNGER - relief valve

1шт.

35

A13181

RING - plunger

1шт.

36

A13175

SPRING - relief valve

1шт.

37

86625138

PLUG,7/18" - 14

Relief valve, 5/8" N.F., Includes Ref. 38 Hex Soc, 7/8"-14 ORB

1шт.

38

86512512

PLUG,7/8" - 14 ORB

"O" RING - 5/8" plug

1шт.

39

A15979

SPOOL KIT - tilt, Includes: Ref. 40 - 45

1шт.

40

A13165

CAP

- tilt spool

1шт.

41

A27020

RING

- snap, spacer (Replaces A13190)

1шт.

42

A13164

RETAINER,13.49mm ID x 37.31mm OD

SPACER - centering

2шт.

43

A15981

SPRING

- tilt spool

1шт.

44

A13166

WASHER

RETAINER - "O" ring

1шт.

45

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

"O" RING - tilt spool

1шт.

46

A16861

VALVE POPPET

POPPET - check valve, Includes: Ref. 47 - 49

2шт.

47

A13171

VALVE SPRING

SPRING - check valve

2шт.

48

A13172

CYLINDER END CAP

CAP - relief valve

2шт.

49

A13186

O-RING

"O" RING - check valve plug

2шт.

50

221-24

DRAIN PLUG,Sq Soc, 1/2"-14 NPTF

PLUG - 1/2" P.T. sq. socket

1шт.

51

86625138

PLUG,7/18" - 14

5/8" N.F. (Includes "O" ring) Hex Soc, 7/8"-14 ORB

1шт.

52

218-5217

TEE,37 Degree, 1 1/16"-12x1 1/19"-12, Fem Sw Run x 7/16"-20

"O" RING - 5/8" plug

1шт.
