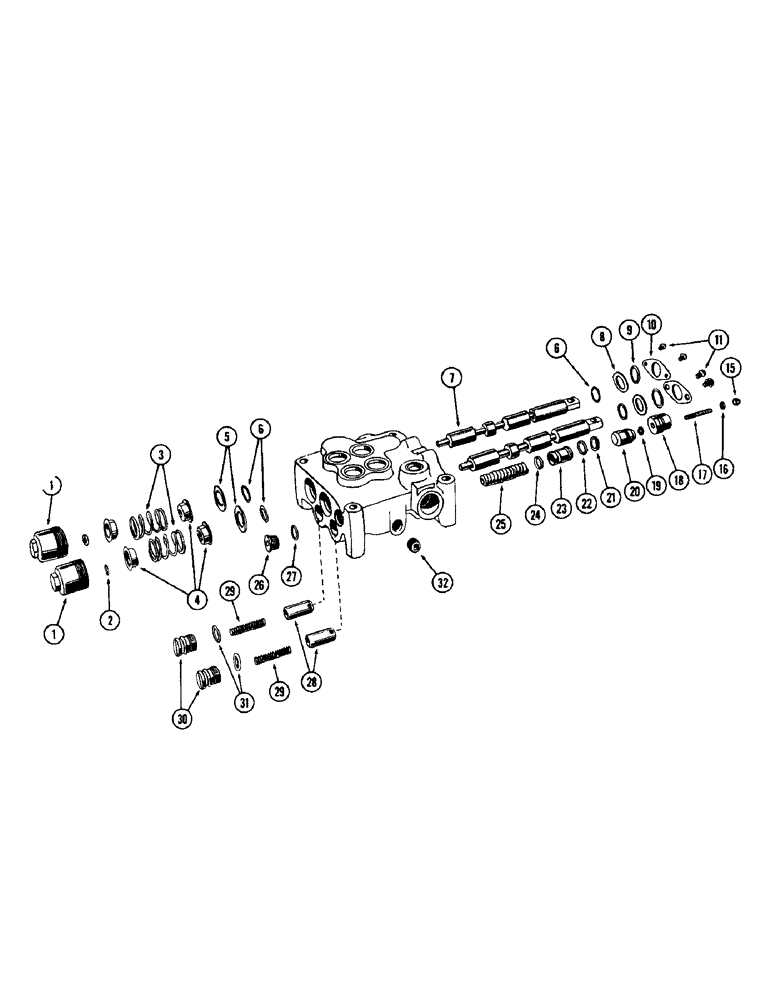

Запчасти Case W10 (162) - A12310 TWO SPOOL CONTROL VALVE (08) - HYDRAULICS

A12310

VALVE ASSY. - complete (Order A19983), Includes: Ref. 1 - 32

1шт.

1

A13165

CAP

- spool spring

2шт.

2

A27020

RING

- snap, spacer (Replaces A13190)

2шт.

3

A13182

VALVE SPRING

SPRING - spool

2шт.

4

A13164

RETAINER,13.49mm ID x 37.31mm OD

SPACER - centering, spool spring

4шт.

5

A13166

WASHER

RETAINER - "O" ring

2шт.

6

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

"O" RING - valve spool

4шт.

7

NSS

NOT SOLD SEPARAT

SPOOL - operating (Order A19983)

2шт.

8

A13167

RETAINER

- "O" ring , stem end

2шт.

9

A13168

WIPER

- spool

2шт.

10

A13169

PLATE - seal, spool operating

2шт.

11

75-610

X

SCREW - mach., 3/8 x 5/8" N.C. rd. hd.

4шт.

15

A13189

NUT - relief valve adjusting screw

1шт.

16

25-155

JAM NUT,Jam, 5/16"-24, G5

- jam, 5/16" N.F. hex.

1шт.

17

A13188

SCREW - adjusting, relief valve

1шт.

18

A13174

X

CAP - adjusting, relief valve (Order A15987)

1шт.

18

A15987

CAP - adjusting, relief valve

1шт.

19

A13163

INSERT - seat, relief valve

1шт.

20

A13173

SEAT - relief valve

1шт.

21

A13162

RING - back-up, "O" ring

1шт.

22

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - relief valve seat (Replaces A13185)

1шт.

23

A13180

PLUNGER - relief valve

1шт.

24

A13181

RING - plunger

1шт.

25

A13175

SPRING - relief valve

1шт.

26

86625138

PLUG,7/18" - 14

Relief valve, 5/8" N.F., Includes Ref. 27 Hex Soc, 7/8"-14 ORB

1шт.

27

86512512

PLUG,7/8" - 14 ORB

"O" RING - 5/8" plug (Part of ref. 26)

1шт.

28

A16861

VALVE POPPET

POPPET - check valve (Replaces A13170)

2шт.

29

A13171

VALVE SPRING

SPRING - check valve

2шт.

30

A13172

CYLINDER END CAP

CAP - check valve

2шт.

31

A13186

O-RING

"O" RING - check valve cap

2шт.

32

221-1024

PLUG

- pipe, 1/2" P.T. sq. hd.

1шт.
