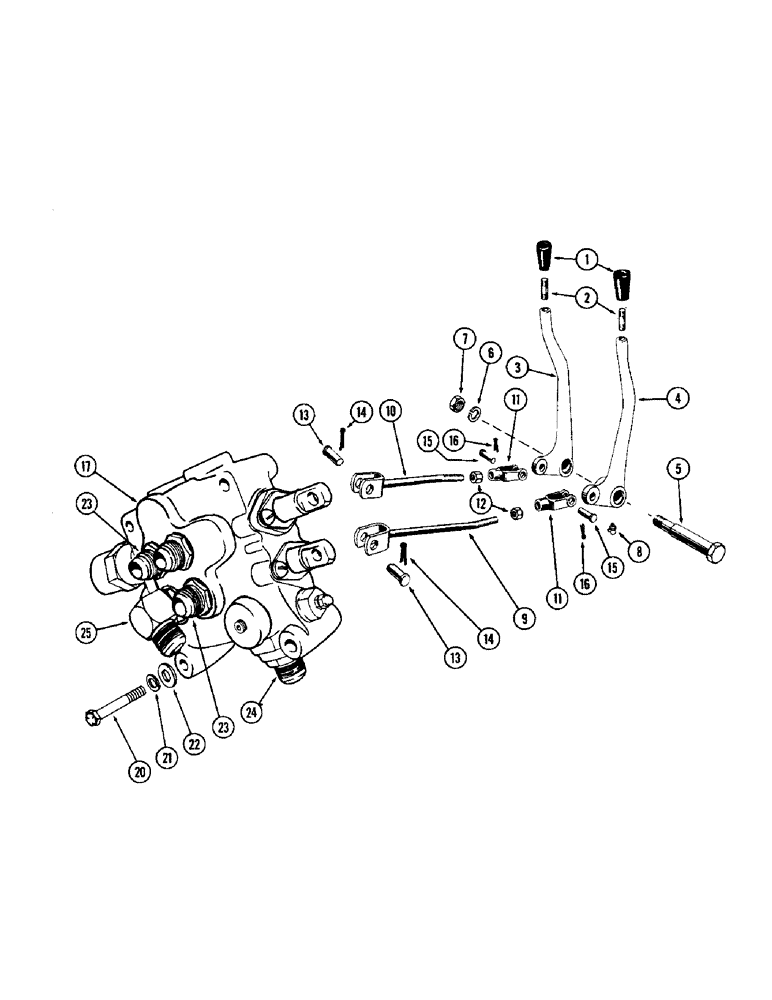

Запчасти Case W10 (160) - TWO SPOOL HYDRAULIC VALVE CONTROL (08) - HYDRAULICS

1

A14051

GRIP

KNOB - hand lever, valve control

2шт.

2

A16775

STUD

-, Serial Range: knob-lever

2шт.

3

A12341

LEVER - lift spool control (Outer)

1шт.

4

A12340

LEVER - tilt spool control (Inner)

1шт.

5

A14044

PIN - pivot, hand lever

1шт.

6

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

7

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - jam, 5/8" N.F. hex.

1шт.

8

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

9

A12345

ROD - control, lever to tilt spool

1шт.

10

A12347

ROD - control, lever to lift spool (Use with first production valve w/o float spool) Order A16916

1шт.

10

A16916

ROD - control, lever to lift spool (Use with float spool type valve)

1шт.

11

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - rod to lever

2шт.

12

25-156

JAM NUT,Jam, 3/8"-24, G5

- jam, 3/8" N.F. hex.

2шт.

13

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - yoke to spool

2шт.

14

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

15

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , to lever 3/8" x 1.060"

2шт.

16

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

17

A12310

VALVE - (Order A19983) Repairs Figure 162

1шт.

17

A13915

LOCK VALVE

VALVE - (Order A19983) Repairs Figure 164

1шт.

17

A16785

VALVE - (Order A19983) Repairs Figure 166

1шт.

17

A18048

VALVE - (Order A19983) Repairs Figure 168

1шт.

17

A19983

LOCK VALVE

VALVE - Parker Hanifin No. VDP14DF38 (Repairs Figure 170)

1шт.

20

14-888

BOLT - 1/2 x 5-1/2" N.F. hex. hd.

1шт.

20

62-888

BOLT - 1/2 x 5-1/2" N.F. socket hd.

2шт.

21

92-8

LOCK WASHER,1/2"

3шт.

22

A26381

WASHER

- spacer, valve

1шт.

23

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - hydraulic tube (1" tube x 1-5/16" N.C.)

4шт.

24

A16921

ADAPTER - hydraulic tube

1шт.

25

A15925

ELBOW UNION

ELBOW - pressure check

1шт.
