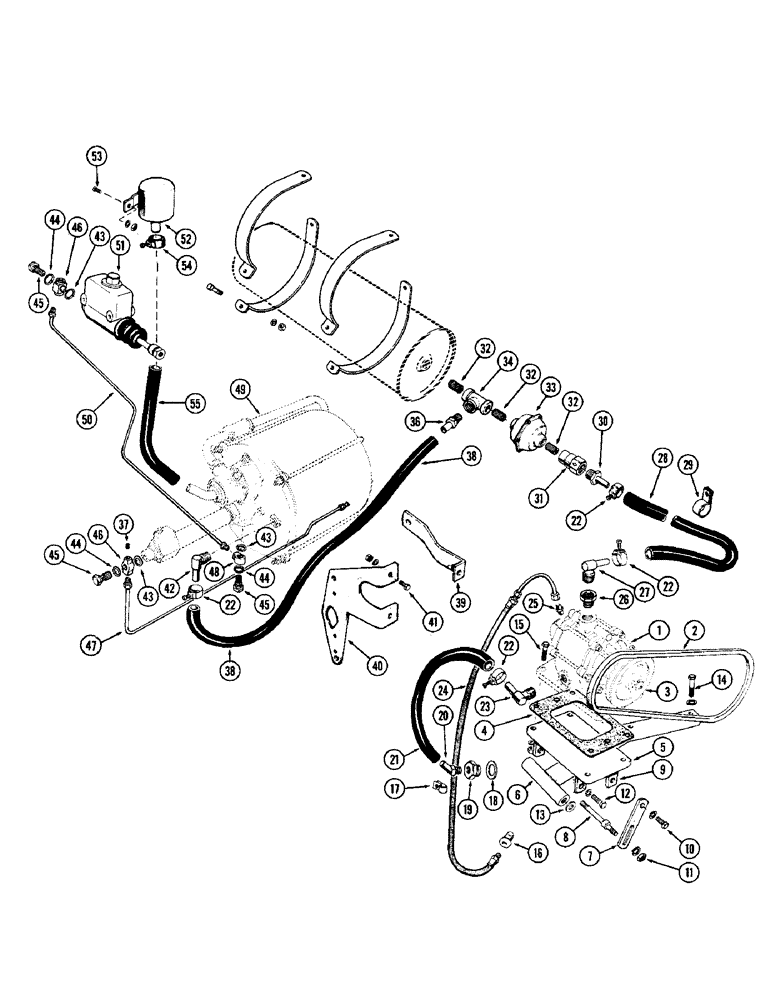

Запчасти Case W10 (120) - HYDROVAC BRAKE SYSTEM (07) - BRAKES

1

A18534

PUMP

- vacuum (Repairs Figure 124)

1шт.

2

A18537

V-BELT,39.00" L

Pump Drive 39.00" L

1шт.

3

A18536

PULLEY

- drive, pump

1шт.

4

A18535

GASKET

- pump mounting

1шт.

5

A18538

BASE - pump mounting

1шт.

6

A18542

BRACKET - support, pump base

1шт.

7

A18545

STRAP - adjusting, pump bracket

1шт.

8

A18546

BOLT (SPREADER)

BOLT - adjusting strap

1шт.

9

A19497

ANGLE - mounting base

1шт.

10

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

11

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

1шт.

12

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

13

195-33

WASHER,1/2"

- plain 1/2"

1шт.

14

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

2шт.

15

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex. hd.

4шт.

16

221-1053

BUSHING

- reducer, Serial Range: 1/4"-3/8"

1шт.

17

A26696

NO LONGER SERVICED

CLIP - hose retaining

1шт.

18

A27947

X

GASKET - timing plug

1шт.

19

A18550

PLUG

- timing window

1шт.

20

A18549

ELBOW - oil return hose, 45 degrees

1шт.

21

A18551

HOSE,0.50" ID x 14.00", SAE 40R3A

0.50" ID x 14.00", SAE 40R3H - Oil return

1шт.

22

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

8шт.

23

A27489

ELBOW UNION

ELBOW - return hose, 90 degrees

1шт.

24

A18547

HOSE

- oil pressure

1шт.

25

222-23

FITTING,1/2"-24 x 1/4" NPTF w/Nut

CONNECTOR - 1/4" tube x 1/4" P.T.

1шт.

26

221-1056

BUSHING

- reducer, Serial Range: 1/2"-3/8"

1шт.

27

A18509

FITTING

ELBOW - reservoir, Serial Range: hose-pump

1шт.

28

A18558

HOSE -, Serial Range: reservoir-pump

1шт.

29

A27256

CLAMP

CLIP - hose retaining

4шт.

30

A18512

FLOAT

NIPPLE - hose to check valve

1шт.

31

A18513

LOCK VALVE

VALVE - check (Repairs Figure 124)

1шт.

32

221-1185

FITTING

NIPPLE - 1/2" P.T. x 1-1/8"

3шт.

33

A18532

CLEANER

FILTER - air (Repairs Figure 124)

1шт.

34

221-1424

TEE,Pipe, 1/2" NPT

- 1/2" P.T.

1шт.

36

A18515

SUN VISOR

NIPPLE - hydrovac, Serial Range: hose-tee

1шт.

37

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, 1/8" sq. hd.

2шт.

38

A18518

HOSE -, Serial Range: reservoir-hydrovac

1шт.

39

A18522

BRACKET - support, hydrovac mounting

1шт.

40

A18521

BRACKET - hydrovac mounting

1шт.

41

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

BOLT, Hex, 3/8"-16 x 1 1/4", G5, Full Thd

3шт.

42

A18509

FITTING

ELBOW -, Serial Range: hose-hydrovac

1шт.

43

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- large, fitting block (Copper)

3шт.

44

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - small, fitting block (Copper)

1шт.

45

A12864

BOLT

- hydraulic connection

3шт.

46

A12863

SUN VISOR

BLOCK - tube connecting

1шт.

47

A18556

TUBE - hydrovac to brake line tee

1шт.

48

A18531

FITTING

BLOCK - tube connecting

1шт.

49

A18554

CYLINDER

- hydrovac (Repairs Figure 126 & 130)

1шт.

50

A18555

TUBE - hydrovac to master cylinder

1шт.

51

A18557

CYLINDER

- master (Repairs Figure 116)

1шт.

52

A18529

CLEANER - air (Repairs Figure 124)

1шт.

53

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

54

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

55

A18559

HOSE

- air, Serial Range: cleaner-hydrovac

1шт.
